3.2 Rear
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10
￭￭￭￭￭￭￭￭
930 Compact IC Flex Oven/SeS/PP (2.930.2500)
11
Peristaltic pump
12
Metrohm CO
2
Suppressor (MCS)
13
Detector chamber
Room for the detector and the adsorption
cartridge for the MCS.

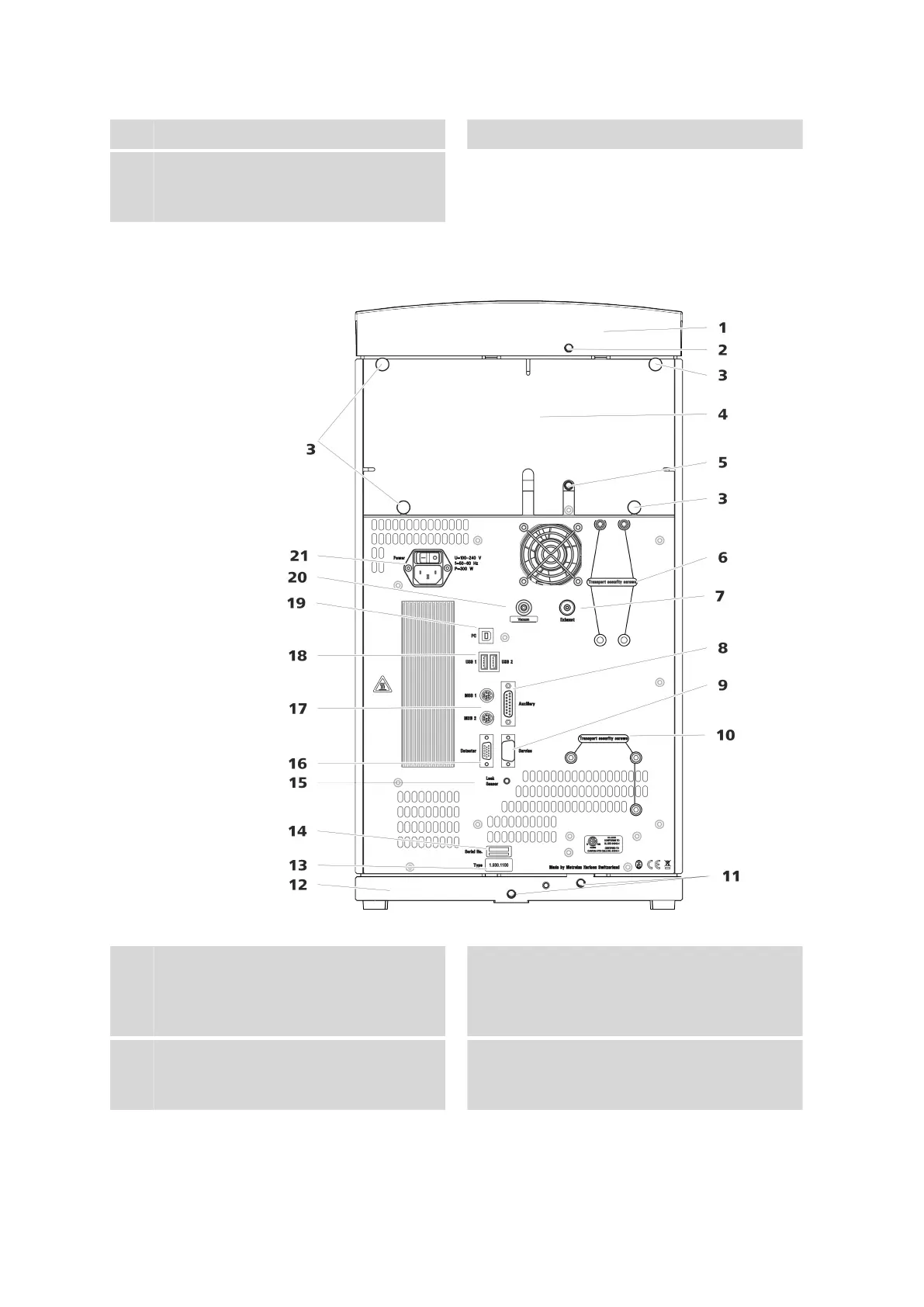

3.2 Rear
Figure 2 Rear
1
Bottle holder
2
Drainage tubing connection
For connecting the drainage tubing, which
guides escaped fluids away from the bottle
holder.
3
Knurled screws
For fastening the removable back panel.
4
Back panel
Removable. Enables access to the detector
chamber.
