Metrohm 930 Compact IC Flex - Figure 4 Openings for Capillaries and Cables

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Overview of the device
930 Compact IC Flex Oven/SeS/PP (2.930.2500)
￭￭￭￭￭￭￭￭
13
Openings on the back panel

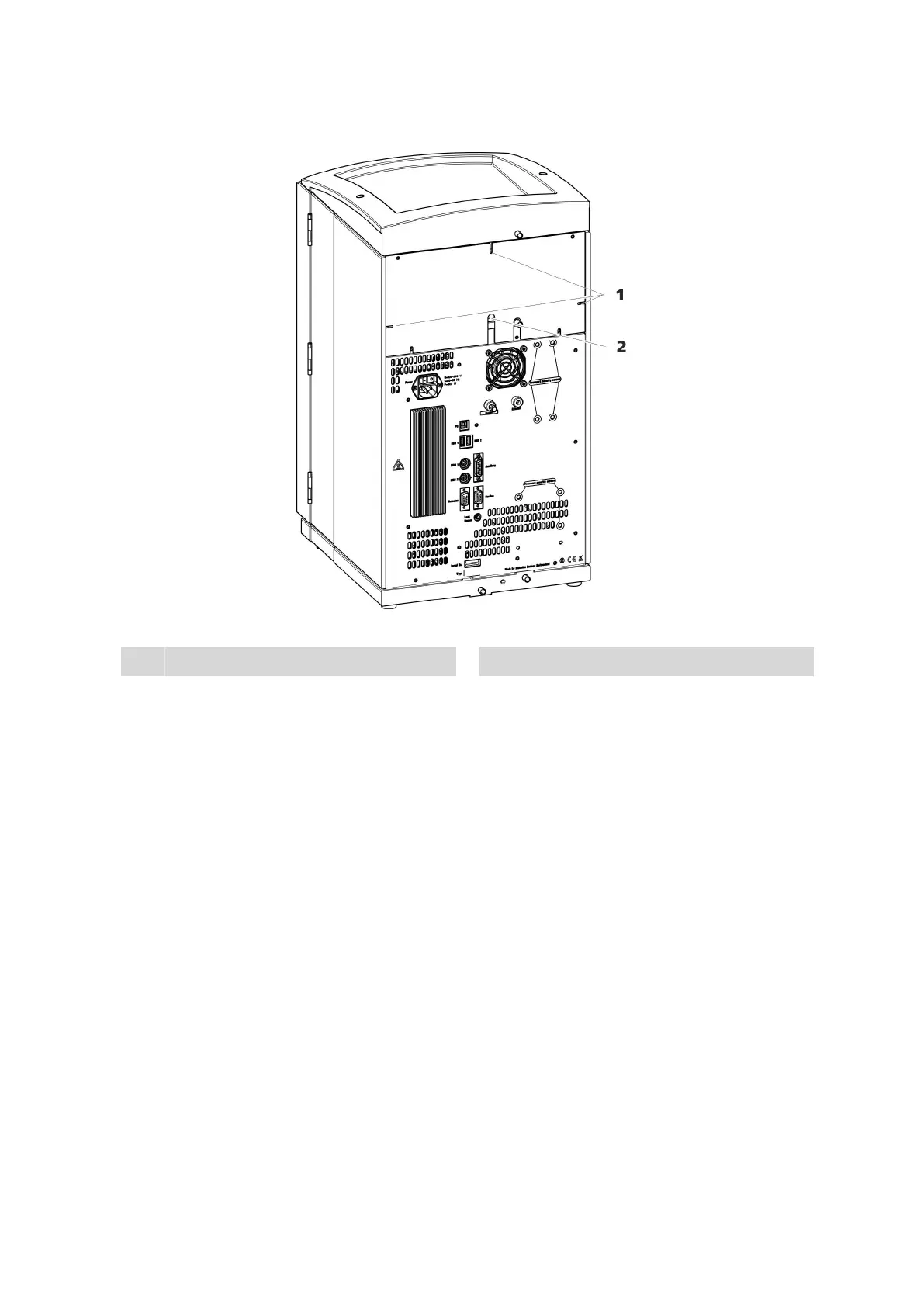

Figure 4 Openings for capillaries and cables
1
Openings for capillaries
2
Openings for cables
The removable back panel is outfitted with openings through which capil-
laries and cables can be lead out of the detector chamber.
Ducts for capillaries
There are ducts for capillaries between the instrument and base tray as
well as between the instrument and the bottle holder. The capillaries can
be fed to the front of the instrument from both sides of the instrument
and from the front of the instrument to the back of the instrument.
