4.11 Metrohm Suppressor Module (MSM)
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
34
￭￭￭￭￭￭￭￭
930 Compact IC Flex Oven/SeS/PP (2.930.2500)

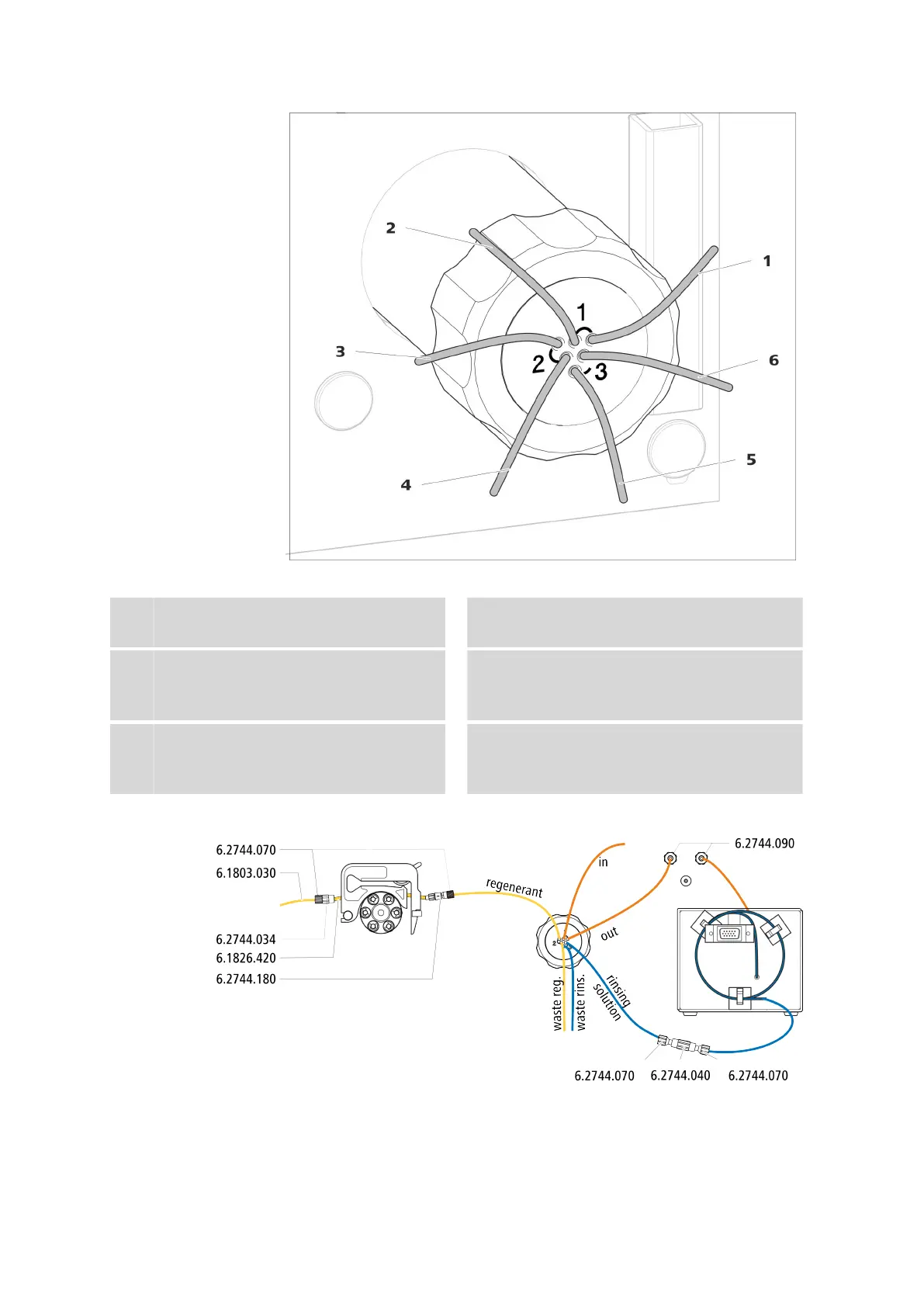

Figure 13 Metrohm Suppressor Module (MSM) – Connection capillaries
1
out
Outlet capillary for the eluent.
2
in
Inlet capillary for the eluent.
3
regenerant
Inlet capillary for the regeneration solution.
4
waste reg.
Outlet capillary for the regeneration solu-
tion; to the waste container.
5
waste rins.
Outlet capillary for the rinsing solution; to
the waste container.
6
rinsing solution
Inlet capillary for the rinsing solution.
Recommended installation
