Metrohm 930 Compact IC Flex - Connecting the Metrohm Suppressor Module (MSM)

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4 Installation
930 Compact IC Flex Oven/SeS/PP (2.930.2500)
￭￭￭￭￭￭￭￭
33
1

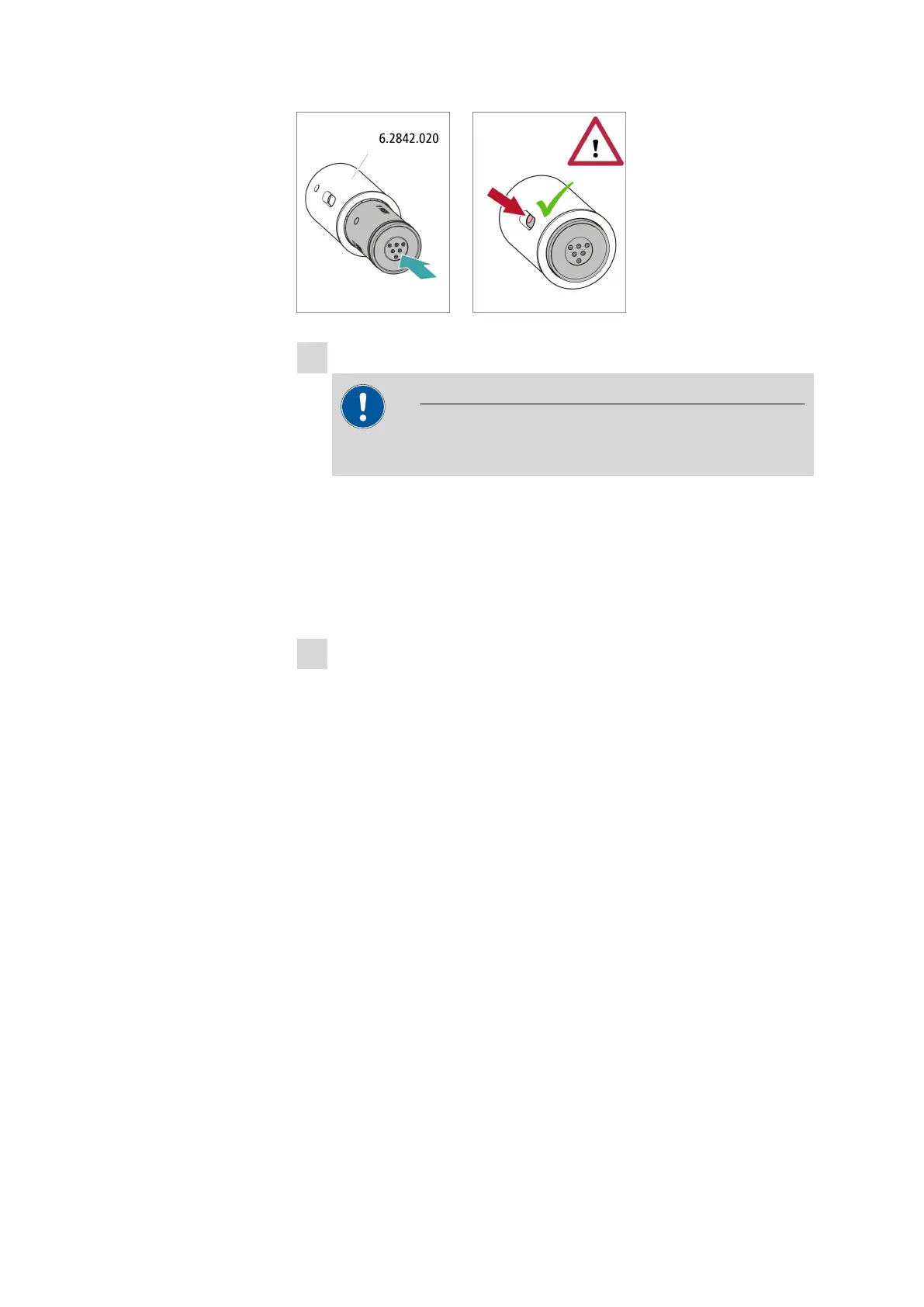

Inserting the rotor into the adapter
CAUTION
An incorrectly inserted rotor may be destroyed during start-up.
￭ Clean the sealing surface of the rotor with ethanol using a lint-
free cloth.
￭ Insert the rotor into the adapter so that the tubing connections
on the rear of the rotor fit into the corresponding recesses inside
the adapter and one of the 3 holes of the rotor is visible in the
slot of the adapter.
2
Inserting the adapter
Insert the adapter into the suppressor drive just like a large rotor (see
"Inserting large rotors", page 31).
4.11.2 Connecting the Metrohm Suppressor Module (MSM)
The 3 entries and exits of the suppressor units, numbered 1, 2 and 3 on
the connecting piece, each have 2 permanently installed PTFE capillaries.
