4 Installation
930 Compact IC Flex Oven/SeS/PP (2.930.2500)
￭￭￭￭￭￭￭￭
35

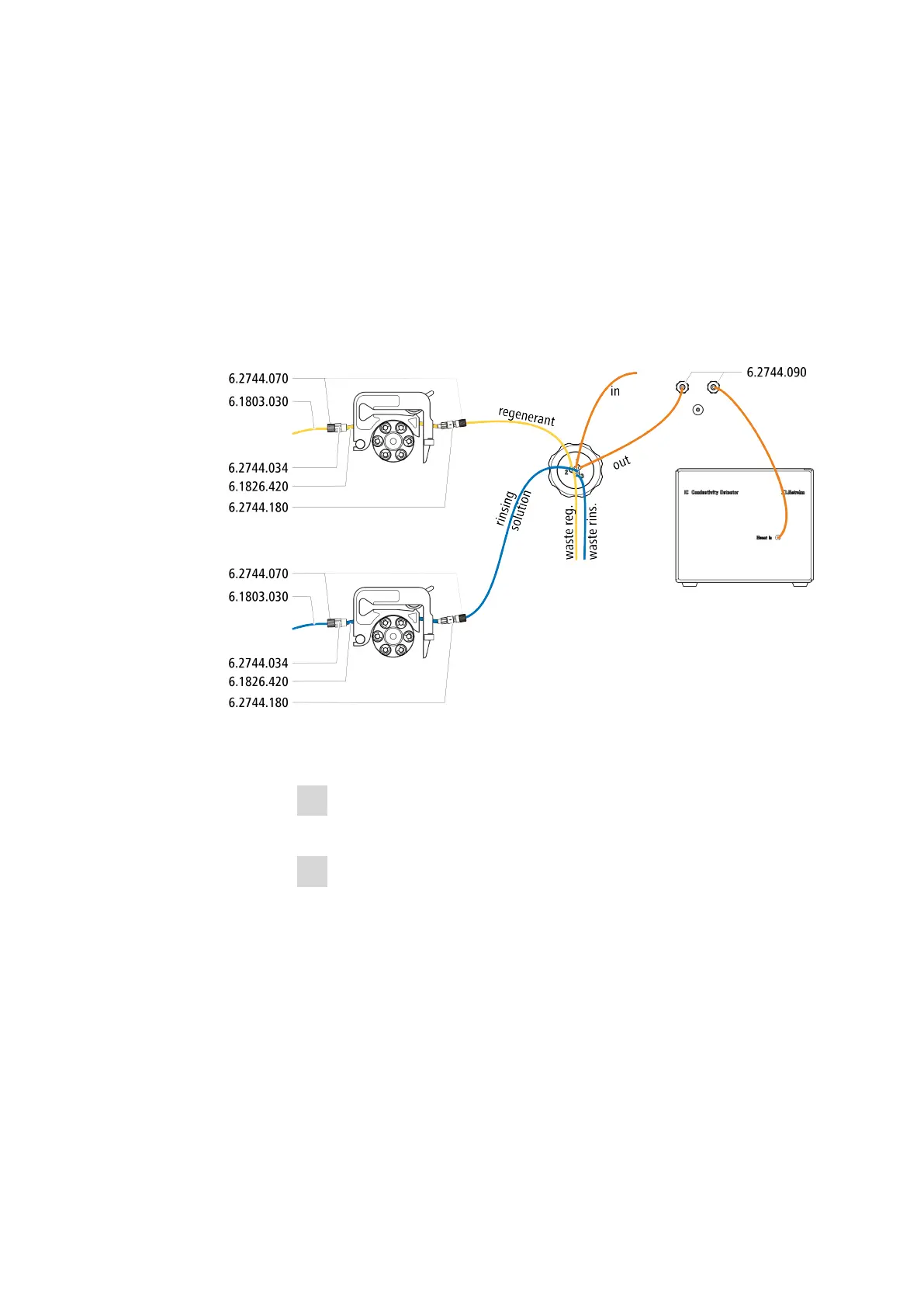

Alternative installation
For the alternative installation, a second tubing cartridge (6.2755.000) is
required that must be ordered separately with the following accessories:
￭ Tubing cartridge (6.2755.000)
￭ Coupling olive/UNF 10/32 2x (6.2744.034)
￭ Pump tubing connection with locking nut and filter (6.2744.180)
￭ Pump tubing PharMed® (orange/yellow) 3 stoppers (6.1826.420)
￭ Glass bottle / 1000 mL / GL 45 (6.1608.020)
￭ Bottle cap / GL 45 - 3 × UNF 10/32 (6.1602.150)
￭ PTFE capillaries 0.5 mm inner diameter / 3 m (6.1803.030)
4.11.2.1
Installing the eluent path
The eluent path is connected with the capillaries in and out.
1
Connect the capillary labeled in to the exit of the separation column
using a short pressure screw (6.2744.070).
2
Use a long pressure screw (6.2744.090) to connect the capillary
labeled out to the inlet of the MCS (see chapter 4.13.2, page 43).
4.11.2.2 Installing bottles with auxiliary solutions
Accessories To connect the bottles of the auxiliary solutions, you will need the follow-
ing accessories:
￭ Accessories from the accessory kit: IC Vario/Flex SeS (6.5000.020)
