MevaLite
ML-13
< 1’
> 1’

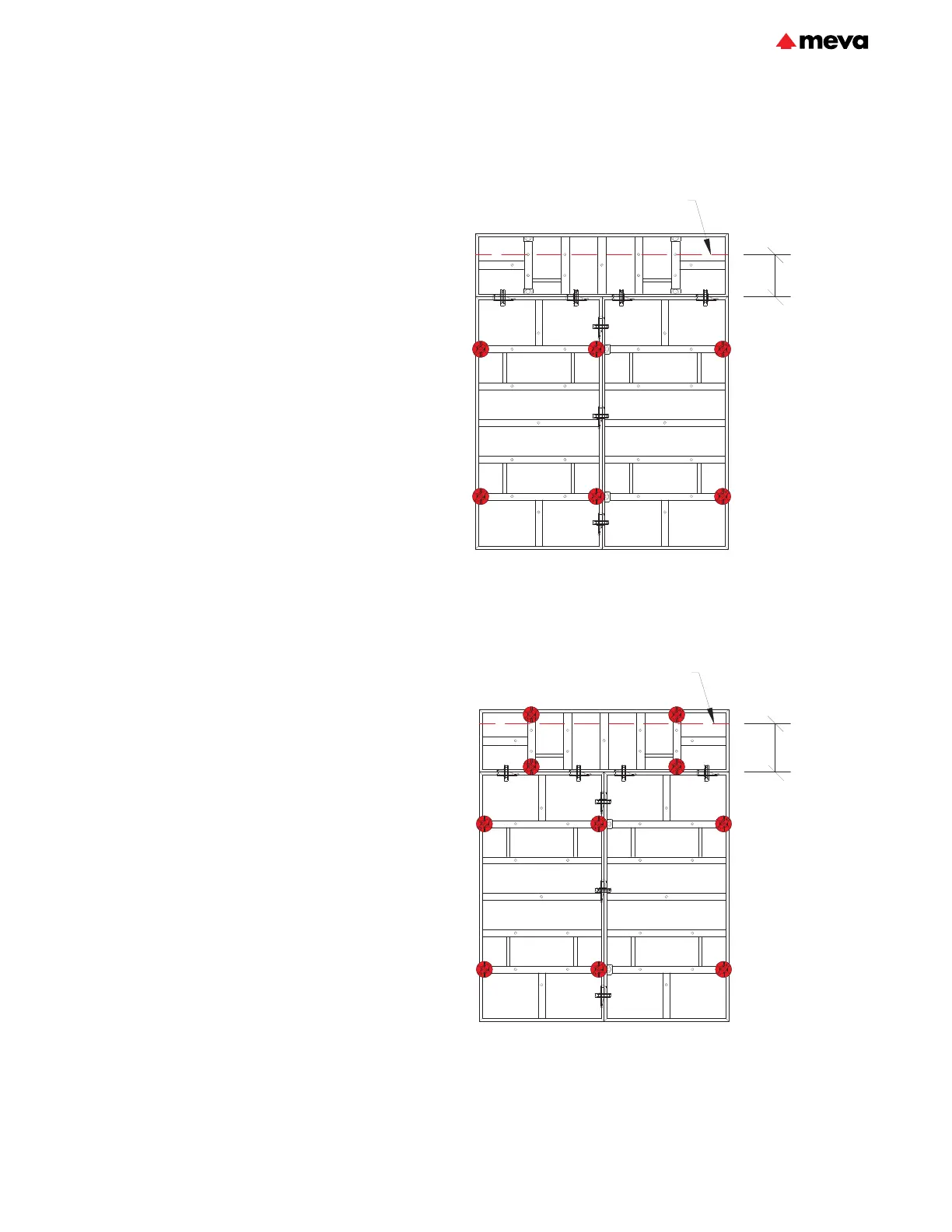

Fig. 13.1
Fig. 13.2
Top of concrete
Top of concrete
Stacking Panels
For stacked panel conditions
where the top of concrete is ≤1'
above the panel below it is not
necessary to install ties in the top
panel (Fig.13.1), unless a walkway
bracket is attached or the panel
below is 3' high. If a walkway
bracket is attached to the top
panel, install ties in the upper tie
holes.
For stacked panel conditions
where the top of concrete is >1'
above the panel below (Fig.13.2),
and for all conditions where the
panel below is 3' high, ties must
be installed in all tie holes.
Vertical steel rails must be installed
across stacked panel joints for
lifting gang forms. See the "Gang
forming" section for additional
information.
Wall formwork
Technical Instruction Manual / June 2022
