Meva MevaLite - Guard-Railing Post; Walkway Bracket 90

MevaLite
ML-79
Wall formwork
Technical Instruction Manual - Product list / June 2022

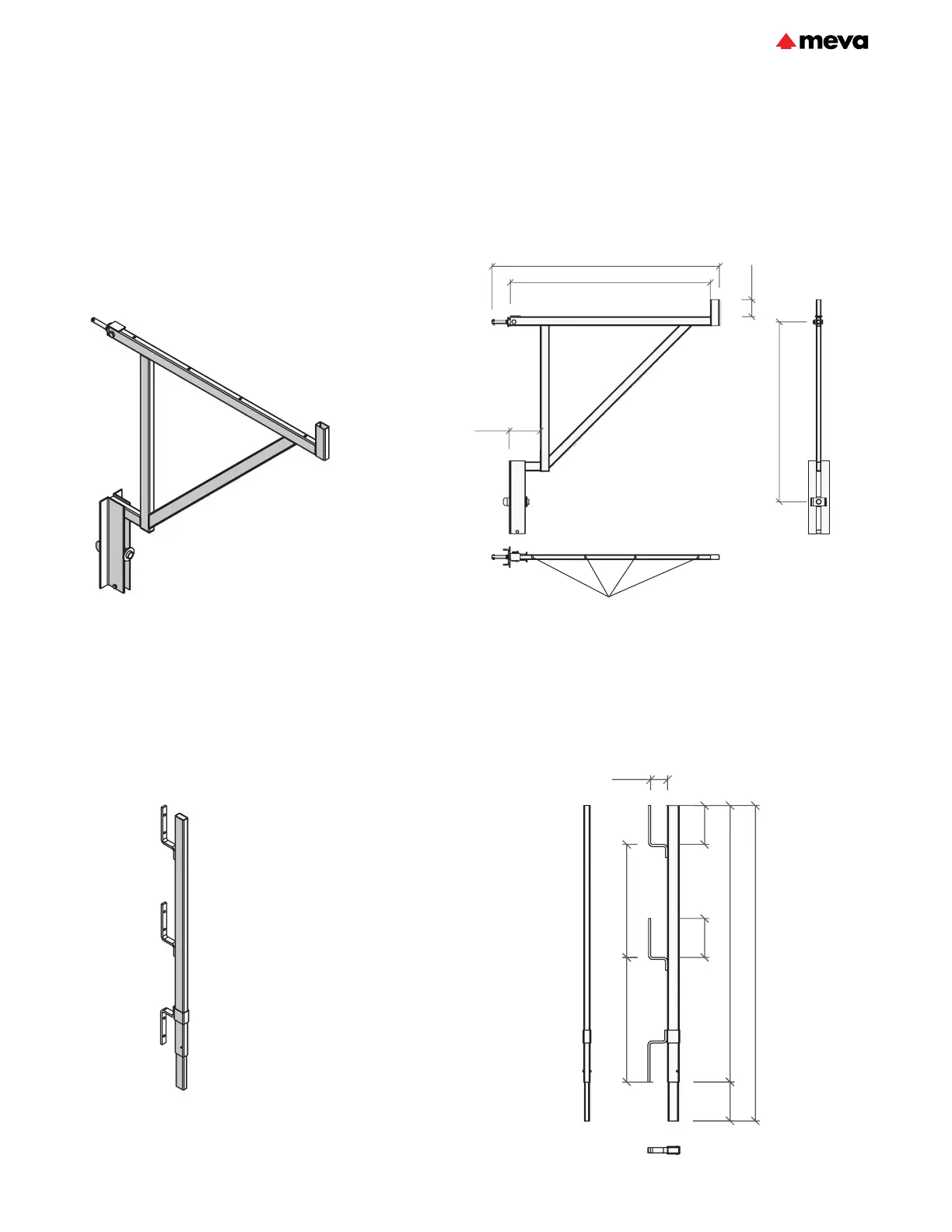

Walkway bracket 90
galvanized; is attached to the multi-function
profile and secured to the multi-function
profile below by means of a flange screw 18.
The planking has to be bolted to the brackets.
Working width approx. 3’. Guard-railing post
100 is required in addition.
29-106-00 ................Walkway bracket 90 (3') ......................................................22.0
Ref.-No. Description / Application lb
6 1/8”
2’-7 1/4” to 3’-4 3/4”
3 3/8”
3’-3 3/8”
3’-9”
4 x Ø 3/8”
10 1/2”
10”
12 1/2”
2 3/8”
Guard-railing post 100
galvanized; is attached to the walkway bracket. 29-106-75 ................Guard-railing post 100 ........................................................... 8.2
Ref.-No. Description / Application lb
2 1/2”
6”
48”
42”
17 1/8”
19”
6”
6”
