MevaLite
ML-75
Wall formwork
Technical Instruction Manual - Product list / June 2022

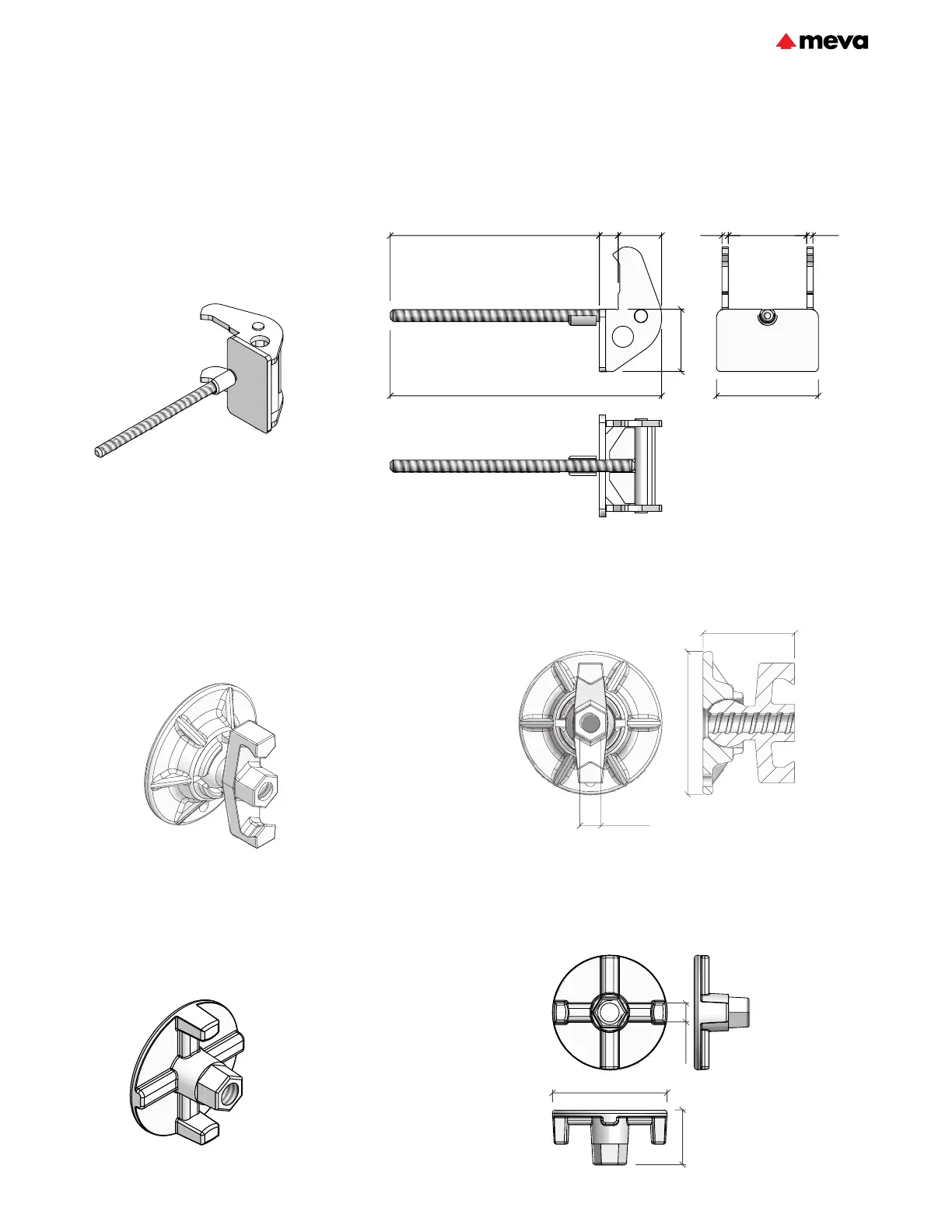

ML-column clamp
galvanized, permits connection of panels
at an angle of 90°. To form columns with
ML-multi-purpose panels; needs one flange
nut 100 or articulated flange nut 15/120.
Articulated flange nut
15/120
forged part with cut thread, ball-and-socket
joint; max. inclination 10°; for threadbars with
5/8“ (15 mm); plate diameter: 4 3/4“;
admissible load-bearing capacity: 21,900 lbs.
Flange nut 100
forged part with cut thread; for threadbars
with 5/8” (15 mm); plate diameter: 4“;
admissible load-bearing capacity: 21,900 lbs.
29-210-70 ................ML-column clamp ..................................................................5.4
29-900-10 ................Articulated flange nut 15/120 ................................................ 4.0
Ref.-No. Description / Application lb
Ref.-No. Description / Application lb
29-900-20 ................Flange nut 100 ......................................................................1.5
4”
1 7/8”
DW 5/8”
DW 5/8”
3”
4 3/4”
10 1/2”
3 1/8”
2 1/4”
7/8”
13 1/2”
4”
5/16” 5/16”
5 1/8”
Ref.-No. Description / Application lb
