MevaLite
ML-45
Crane Hook
The safe working load of a crane
hook (Fig.45.1) is 1,300 lbs
(Safety factor: 5:1 against failure)
The handling is very simple:
Open the safety lever as far as
possible (Fig.45.2), then move the
crane hook onto the panel profile
until the claw engages completely
in the groove. Push the safety lever
down and toward the panel to
lock the crane hook (Fig.45.3).
When moving gangs (Fig.45.4),
make sure that each crane hook is
attached at a panel joint or above
a stiffener (when horizontally
stacked). This prevents the crane
hook from sliding. Exeption: single
vertical panels up to 3' wide
(Fig.45.5).
Safety tips
Always check the crane hook
before each use.
Do not over load the crane hook.
Do not use the crane hook to
break concrete bond when
stripping.
Attention
If the reference dimension shown
in Fig.45.2 exceeds 0.95” the
crane hook must be replaced
immediately. Replace it even if only
one side of the hook exceeds this
dimension.
Safety regulations
When using our products the
federal, state, local codes and
regulations must be observed.
Description Ref.-No.
ML-crane hook ..........................29-103-10

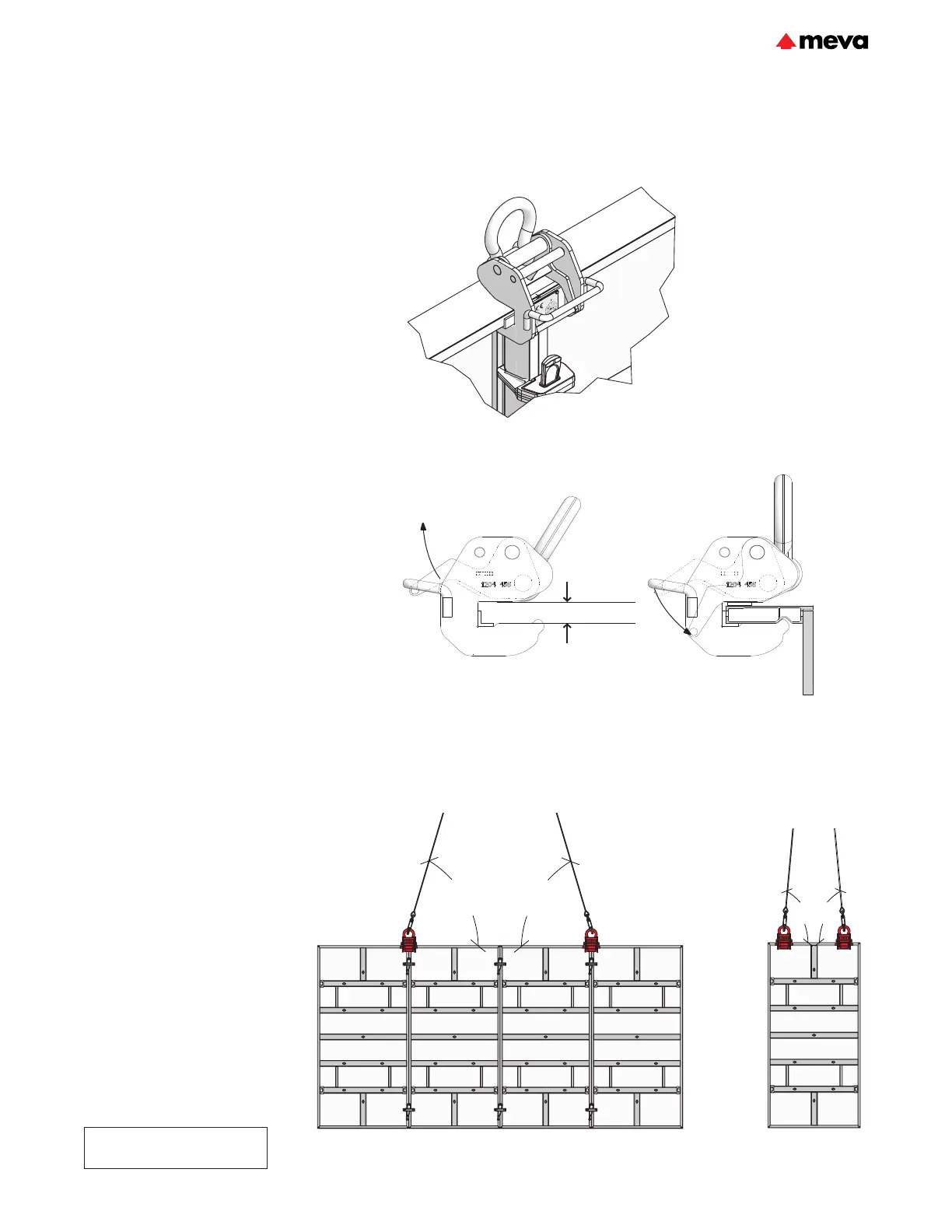

Fig. 45.1
Fig. 45.2 Fig. 45.3
Fig. 45.4 Fig. 45.5
min. 60°
min. 60°
Reference dimension
Open
Lock
min. 60°
Wall formwork
