Meva MevaLite - Horizontal Panels

ML-40
MevaLite
Horizontal Panels
A horizontal panel configuration is
well suited for some applications
such as foundations and one-sided
formwork (Fig40.1 - Fig.40.8).
The bottom of the formwork can
be tied using 5/8" ties with drive
nuts . This method may only be
used at a single panel edge, and is
not permitted at panel joints and
fillers.
Foundation spanners and
foundation tape may be
substituted for the bottom
ties in single panels (Fig.40.5
- 40.8). For pour heights up
to 4', the maximum spacing
of the foundation spanners is
2'-3". For pour heights up to
3', the maximum spacing of the
foundation spanners is 4'-3".
At the top of the formwork, ties
can be located above the panels
by using tie-claws with threadbars
or taper ties (Fig.40.5, 40.6, 40.7
and 40.9).
Multi-purpose panels are well
suited for forming walls with
starter walls or waterstop at the
base (Fig.40.10).
Description Ref.-No.
Foundation tape ........................29-307-50
Foundation spanner ...................29-307-85
Trolley for foundation tape ........29-307-55
EA-assembly lock .......................29-205-50
Uni-assembly lock 22 .................29-400-85
Tie claw 23 ................................29-901-44
Drive nut 60...............................29-900-23
Articulated flange nut 15/120 ....29-900-10

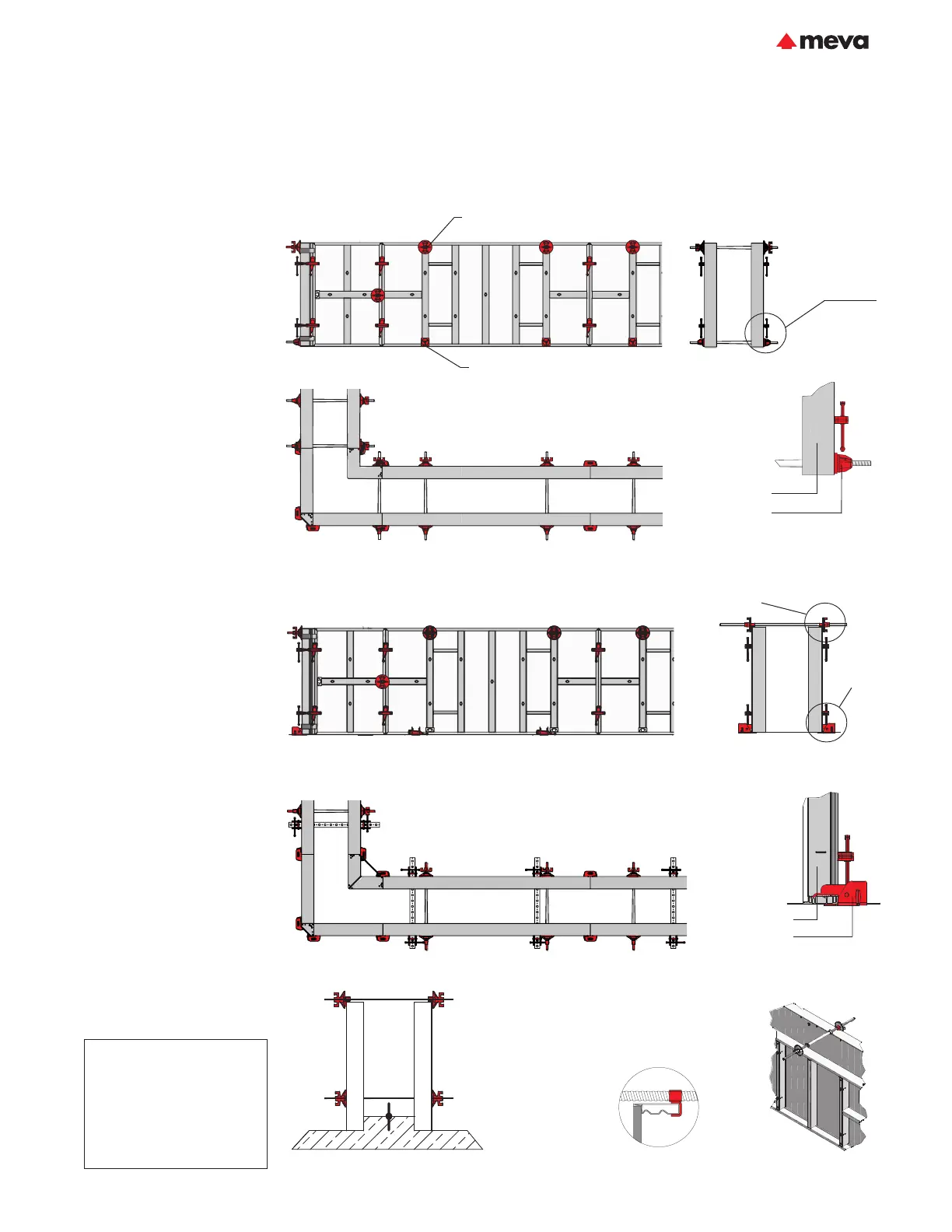

Fig. 40.1 Fig. 40.2
Fig. 40.3 Fig. 40.4
Fig. 40.4
Articulated flanfe nut 15/120
Drive nut 60
MevaLite panel
Drive nut 60
Fig. 40.5
ML-panel
Foundation
spanner
Fig. 40.8
Fig. 40.9
Fig. 40.8
Fig. 40.9 I Fig. 40.9 IIFig. 40.10
Fig. 40.6
Fig. 40.7
MPP MPP
Wall formwork
Technical Instruction Manual / June 2022
