Meva MevaLite - ML-Articulated Inside Corner; ML-Articulated Outside Corner

MevaLite
ML-71
Wall formwork
Technical Instruction Manual - Product list / June 2022
22-506-10 ................ML-articulated inside corner 9’ ........................... 18 .........192.5
22-506-20 ................ML-articulated inside corner 6’ ........................... 12 .........132.7
22-506-30 ................ML-articulated inside corner 4’ ........................... 8 ...........89.5
22-506-40 ................ML-articulated inside corner 3’ ........................... 6 ...........72.5
22-506-60 ................ML-articulated outside corner 9’ ........................ 7.5 ..........124.6
22-506-70 ................ML-articulated outside corner 6’ ........................ 5.0 ............85.5
22-506-80 ................ML-articulated outside corner 4’ ........................ 3.3 ............58.2
22-506-90 ................ML-articulated outside corner 3’ ........................ 2.5 ............47.0
4 1/4”
1’
70° - 275°
4 1/4”
5”
60° - 220°
1’
5”
6’
4’
3’
9’
6’
4’
9’
3’
steel; side length = 1‘; adjustable from 70° to
275°; stop points at 70°, 90° and 135°; plugs
D 27/30 (Ref.-No. 29-902-64) are used to close
the tie holes.
steel, side length = 5“; stop points at 90°, 120°
and 135°; adjustable from 60° to 220°, plugs
D 27/30 (Ref.-No. 29-902-64) are used to close
the tie holes.

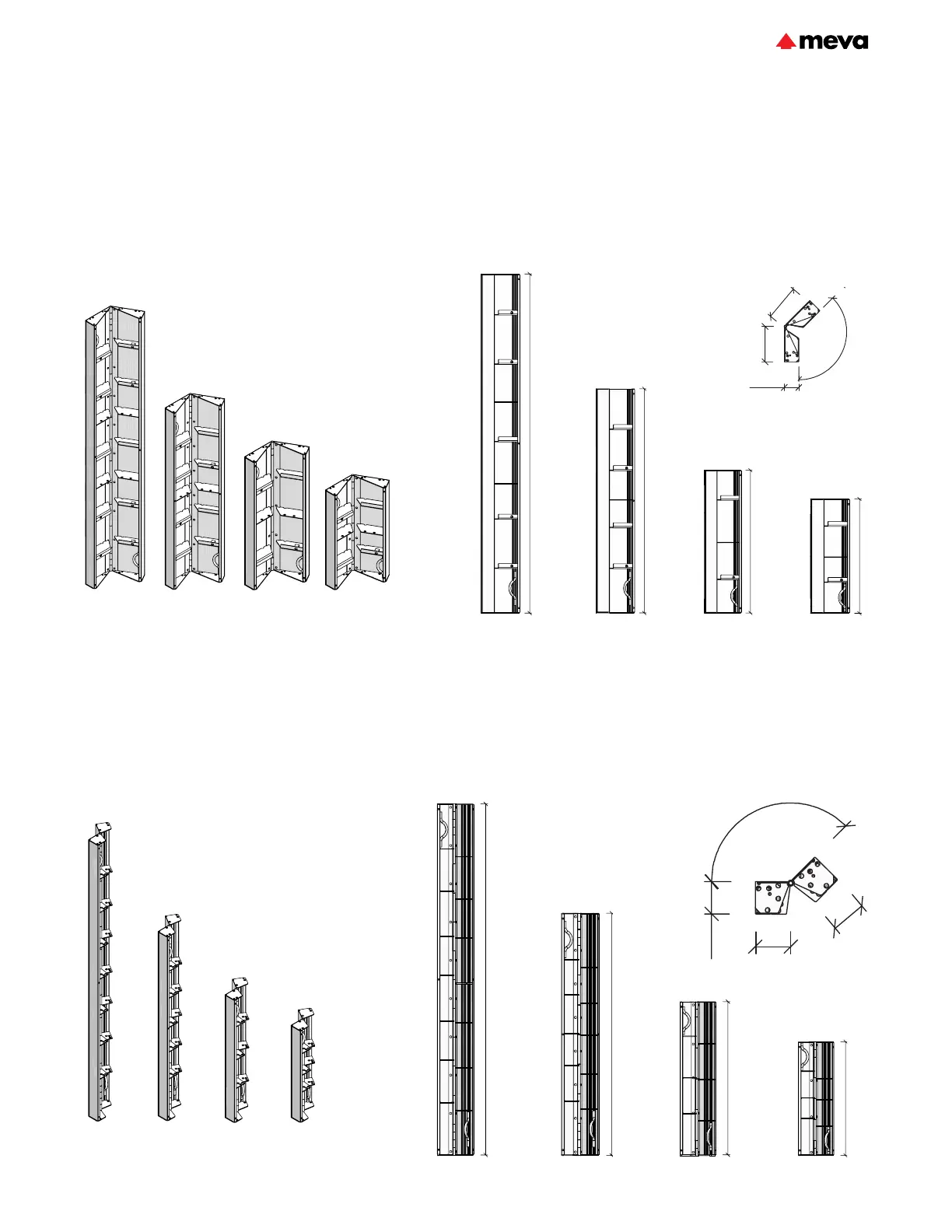

ML-articulated inside corner
ML-articulated outside corner
Ref.-No. Description / Application sq. ft. lb
Ref.-No. Description / Application sq. ft. lb
