MevaLite
ML-73
Wall formwork
Technical Instruction Manual - Product list / June 2022

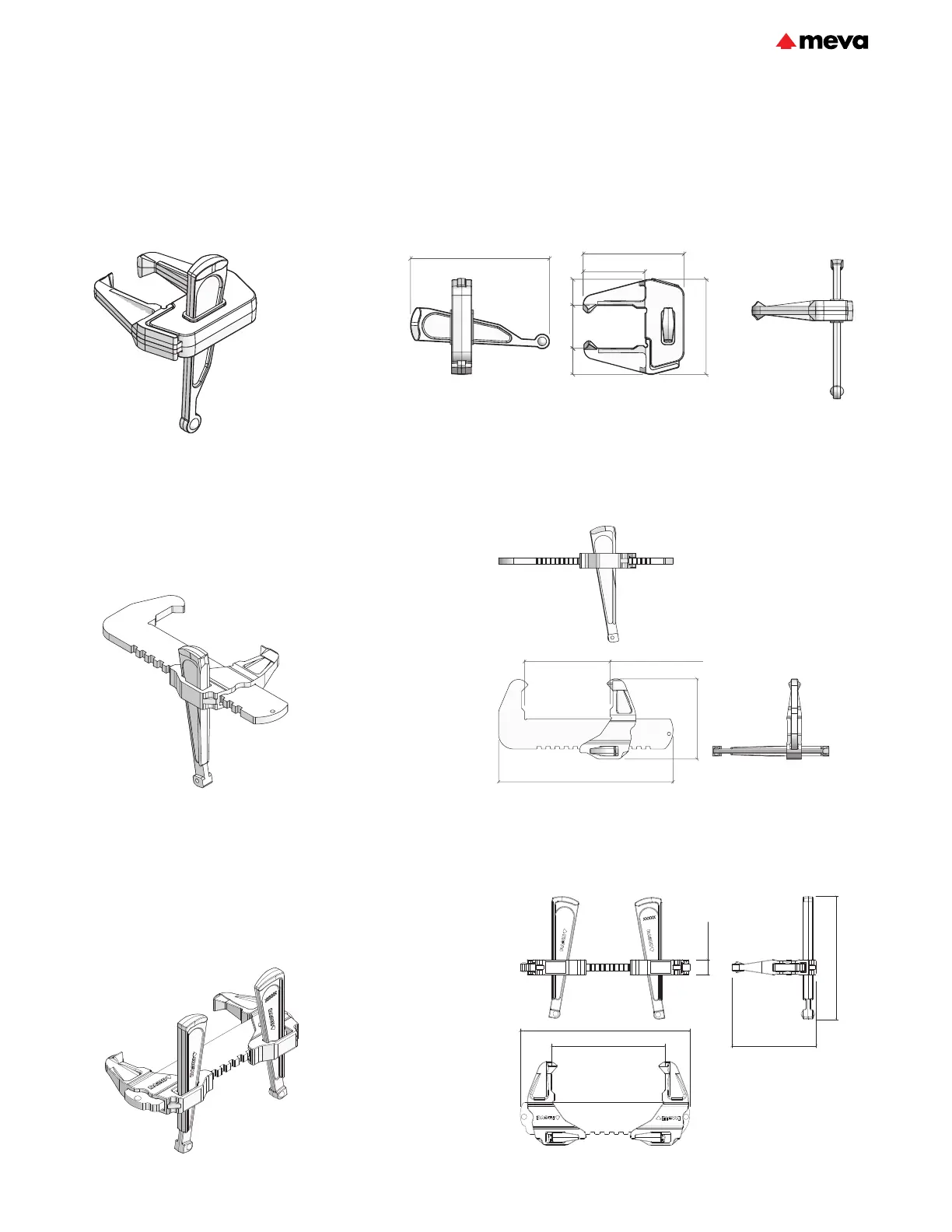

29-205-50 ................EA-assembly lock ...................................................................3.3galvanized; to tightly connect and align
ML-panels; clamping length: 2“
EA-assembly lock
galvanized; for connecting panels with fillers;
clamping length = 8 21/32“,
spans fillers up to 6 1/2“ (when using MevaLite
panels).
Uni-assembly lock 22 Ref.-No. Description / Application lb
29-400-85 ................Uni-assembly lock 22 ............................................................. 7.9
from 0” to 8 21/32”
6 1/4”
13 1/2”
23-807-70 ................Double wedge lock ..............................................................10.4
Double wedge lock Ref.-No. Description / Application lb
9 1/8"
1 1/8"
12 1/2"
Clamping length =
4 11/16" - 8 1/16"
6 1/4"
galvanized; for connecting ML-panels with fillers
at stripping corners;
clamping length = 4 11/16" - 8 1/16“,
spans fillers from 3" (minimum filler size) up to
6 1/4“ (maximum filler size).
Ref.-No. Description / Application lb
4 1/2”
6 3/4”
1 1/4”
4 3/4”
1 1/4” 2”
3”
