Meva MevaLite - Tie Systems

ML-8
MevaLite
Tie Systems
Description Ref.-No.
Articuated flange nut 15/120 ................................ 29-900-10
5/8" (15mm) Taper Tie Stock Sizes
16/41 - 16" Taper length, 41" Overall ..........2-500-2990131
24/49 - 24" Taper length, 49" Overall ..........2-500-2990133
32/57 - 32" Taper length, 57" Overall ..........2-500-2990135
Description Ref.-No.
Rental
5/8" (15mm) Threadbar 18" ......................... 2-500-2990158
5/8" (15mm) Threadbar 42" ......................... 2-500-2990156
5/8" (15mm) Threadbar 54" ......................... 2-500-2990154
5/8" (15mm) Threadbar 72" ......................... 2-500-2990152
Articuated flange nut 15/120 ................................ 29-900-10
Purchase
5/8" (15mm) Plastic Spacer Cone .................2-500-2990252
1" Stripping Tool for 5/8" Spacer Cone.........2-500-2990233
3/4" PVC Pipe Sch40 20ft ............................2-500-2990244
Description Ref.-No.
Rental
5/8" (15mm) Pass-Thru She-Bolt x 19"..........2-500-2990173
Articuated flange nut 15/120 ................................ 29-900-10
Purchase
5/8" (15mm) Threadbar 19'-1" ..................... 2-500-2990140
5/8" (15mm) Neoprene Waterstop ............... 2-500-2990237
Description Ref.-No.
Rental
5/8" (15mm) Steel Setting Cone ................... 2-500-2990180
5/8" (15mm) Threadbar 18" ......................... 2-500-2990158
Articuated flange nut 15/120 ................................ 29-900-10
Purchase
5/8" (15mm) Threadbar 19'-1" ..................... 2-500-2990140
5/8" (15mm) Neoprene Waterstop ............... 2-500-2990237

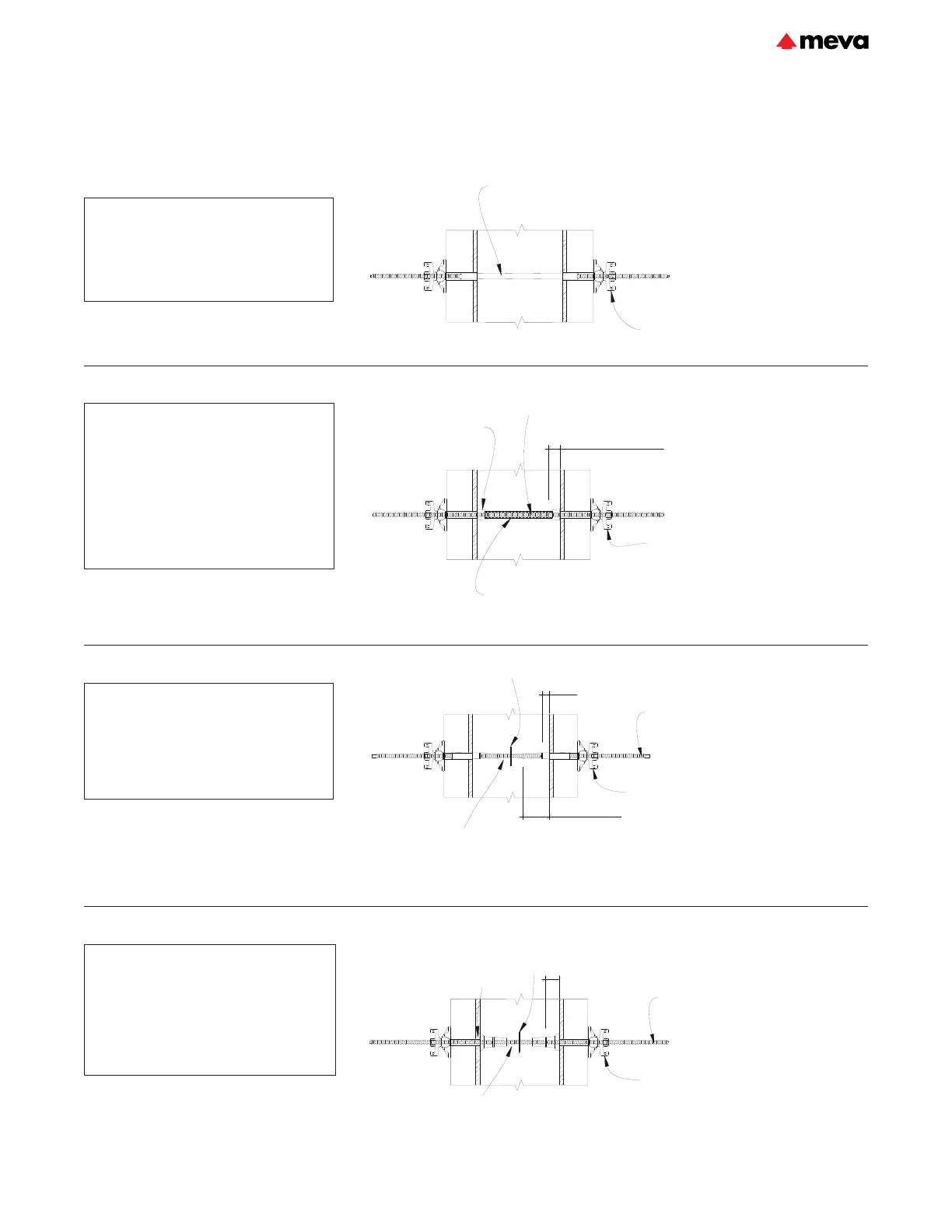

Fig. 8.1 - 5/8" (15mm) Taper Tie, 1" to 3/4"
Fig. 8.2 - 5/8" (15mm) Threadbar
Fig. 8.3 - 5/8" (15mm) Pass-Thru She-Bolt
Fig. 8.4 - 5/8" (15mm) She-Bolt Steel Cone
5/8" (15mm) Taper Tie
5/8" (15mm) Threadbar
5/8" (15mm) Pass-
Thru She-Bolt X
19"long
5/8" (15mm) 18"Threadbar
(Reusable)
Articulated
flange nut 15/120
Articulated
flange nut 15/120
Articulated flange nut 15/120
Articulated flange nut 15/120
Neoprene
Waterstop
Neoprene Waterstop
(if needed)
2"
5/8" Spacer
Cone
1 1/2" Cone Depth
3/4" PVC Pipe Schedule 40
Length = Wall Thickness - 2"
5/8" (15mm) Threadbar Inner Tie Rod (Consumed)
Length = Wall Thickness - 4"
5/8" (15mm) Threadbar Inner Tie Rod (Consumed)
Length = Wall Thickness - 4"
5/8" (15mm) Steel
Setting Cone
5/8" (15mm) Taper Tie
SWL = 18.75 KIPS
Factor of Safety = 2:1
5/8" (20mm) Threadbar
SWL = 21.9 KIPS
Factor of Safety = 2:1
5/8" (15mm) Pass-Thru
She-Bolt
SWL = 21.9 KIPS
Factor of Safety = 2:1
5/8" (15mm) She-Bolt Steel Cone
SWL = 21.9 KIPS
Factor of Safety = 2:1
2"
4" Taper
Wall formwork
Technical Instruction Manual / June 2022
