Meva MevaLite - Columns

ML-28
MevaLite
Columns
Columns with Multi-Purpose-
Panels:
Multi-purpose panels can be used
to form columns of varying sizes
up to 24” in 1” increments. The
multi-adjustment profiles allow for
either even inch or odd inch sizes
depending on the orientation of
the panels.

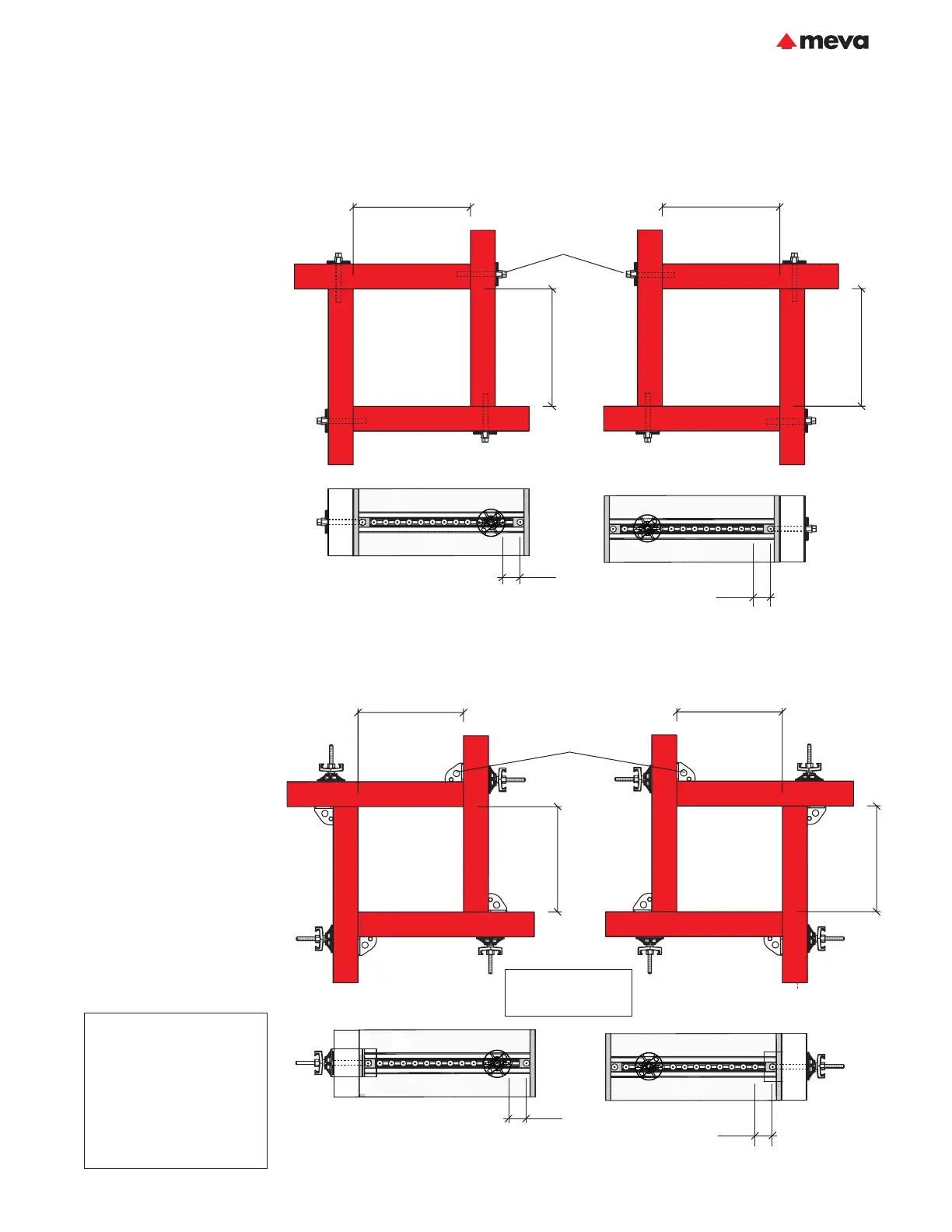

When using tensioning screws,
the sizes can range from 1” to 24”
(Fig.28.1 and28.2). The screw
is passed through the multi-
adjustment profile, and screwed
into the threaded sleeve in the
side of the connecting panel. The
maximum allowable concrete
pressure is 1350 psf.
When using column clamps,
the sizes can range from 1” to
22” (Fig.28.3 and28.4). The
column clamp is secured with a
flange nut 100 (an articulated
flange nut 15/120 may also be
used). The maximum allowable
concrete pressure is 1350 psf for
column sizes ≤ 19”, and 1200 psf
for column sizes over 19” (with
rectangular columns the longer
side controls).
Description Ref.-No.
ML-multi-purpose panels
9’x2.5' .......................................22-500-25
6’x2.5' .......................................22-501-25
4’x2.5' .......................................22-502-25
3’x2.5' .......................................22-503-25
EA-assembly lock .......................29-205-50
Uni-assembly lock 22 .................29-400-85
ML-column clamp ......................29-210-70
ML-tensioning screw ..................29-210-80
Articulated flange nut 15/120 ....29-900-10
Fig. 28.1
Fig. 28.3
1” - 21”
Fig. 28.4
1” - 21”
2” - 22”
2” - 22”
2” - 24”
1” - 23”
1” - 23”
2” - 24”
Fig. 28.2
Tensioning screws
- panel overlap on
right side (clock-
wise), 3" hole space
on right side
Tensioning screws
- panel overlap on
left side (counter-
clockwise), 3" hole
space on right side
Column clamps -
panel overlap on
left side (counter-
clockwise), 3" hole
space on right side
Column clamps -
panel overlap on
right side (clock-
wise), 3" hole
space on right
side
Column clamp
at each tie hole
elevation, typ.
Maximum allowable
concrete pressure =
1200psf. for sizes > 19"
3”
3”
3”
3”
Tensioning screw
at each tie hole
elevation, typ.
MPP
MPP
MPP
MPP
MPP
MPP
MPP MPP
MPP
MPP
MPP
MPP
MPP
MPP
MPP
MPP
Wall formwork
