Meva MevaLite - Multi-Purpose Panels

MevaLite
ML-5
Multi-purpose Panels

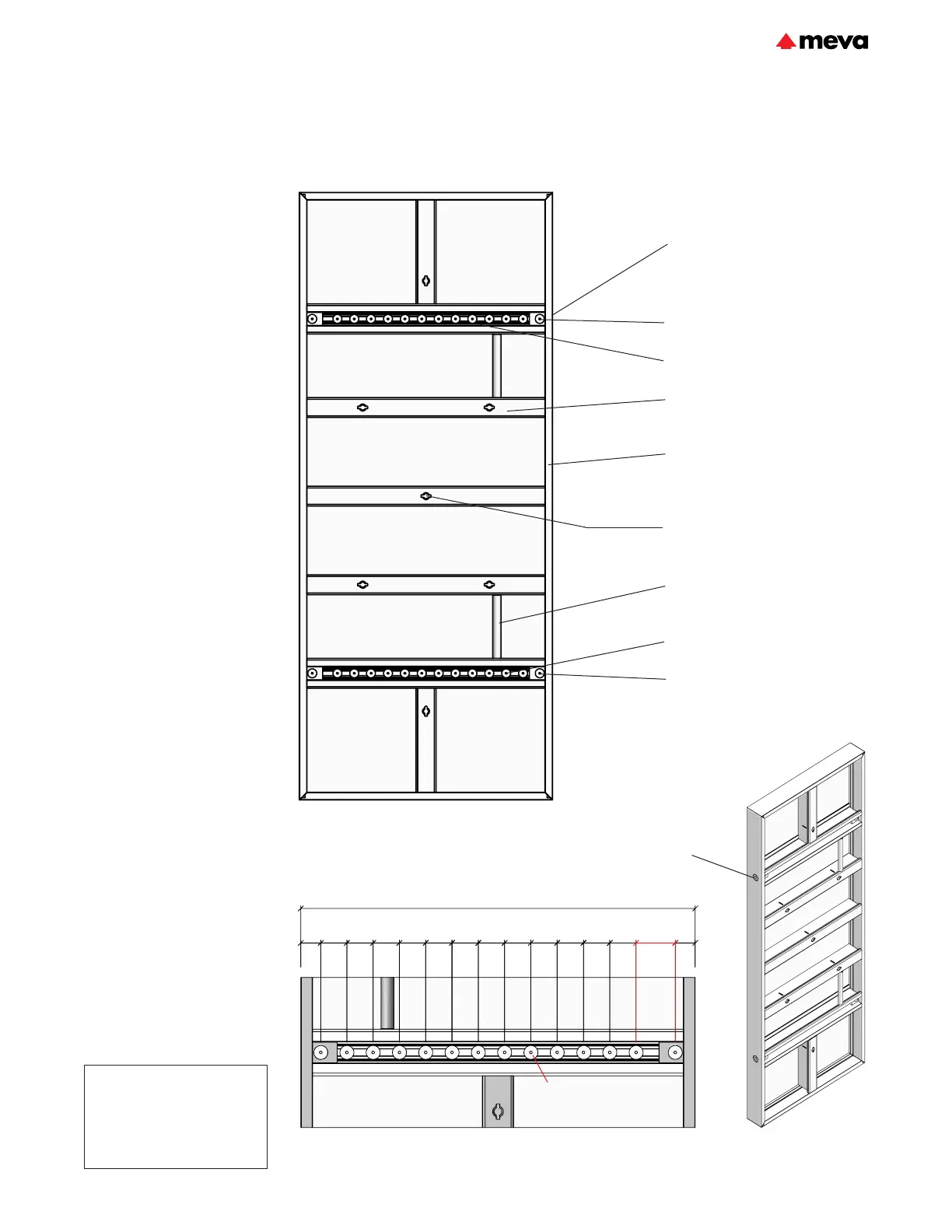

Multi-function profile
Frame
Standard tie hole
Dywidag-threaded nuts
Holes with threaded nuts in frame at
multi-adjustment profile elevation
Tie-off bar
Ø 1 1/16"
Fig. 5.1
Fig. 5.3
The multi-purpose panels are ideal
for forming 90° corners, columns,
pilasters, bridge abutments and
connections to existing walls.
The panels are provided with multi-
adjustment profiles where column
clamps or ties are mounted.
The panels come with pilot holes
on the back side for drilling
selected tie holes at exact
locations.
Plug the unneeded tie holes with
Plug D27/30.
The 9’ panels have 3 multi-
adjustment profiles, the 6’ and 4’
panels have 2 multi-adjustment
profiles and the 3’ panel has 1
multi-adjustment profile.
Threaded sleeves are also provided
on the frame sides at each tie hole
elevation for tensioning screw
connections.
Description Ref.-No.
ML-multi-purpose panels
9’x2.5’ .......................................22-500-25
6’x2.5’ .......................................22-501-25
4’x2.5’ .......................................22-502-25
3’x2.5’ .......................................22-503-25
Plug D27/30 ..............................29-902-61
Multi-adjustment profile
Ø 1 1/16" to Ø 1 1/4" conical
Threaded sleeves
for tensioning
screw connections.
2’-6”
3”
1 ½”
2”
2” 2” 2” 2” 2”
2”
2” 2” 2” 2”
2”
Ø1 1/16”
1 ½”
Fig. 5.2
Wall formwork
