Fig. 34.2 End ties
Tie claw 23
Adjoining Walls
These figures show example
formwork details at adjoining
walls. Details for lap conditions
at a previous pour are shown in
Figures35.1 and35.2.
The detail for formwork
perpendicular to an existing wall is
shown in Fig.35.3. Three foot rails
are used so that both tubes of the
rail section support the filler.
Unbalanced forces on the
formwork system must be
considered when these conditions
occur near a corner or bulkhead.
Ties or anchors to the existing
structure may be required. The
existing structure may also need to
be evaluated for imposed loads by
the engineer of record.

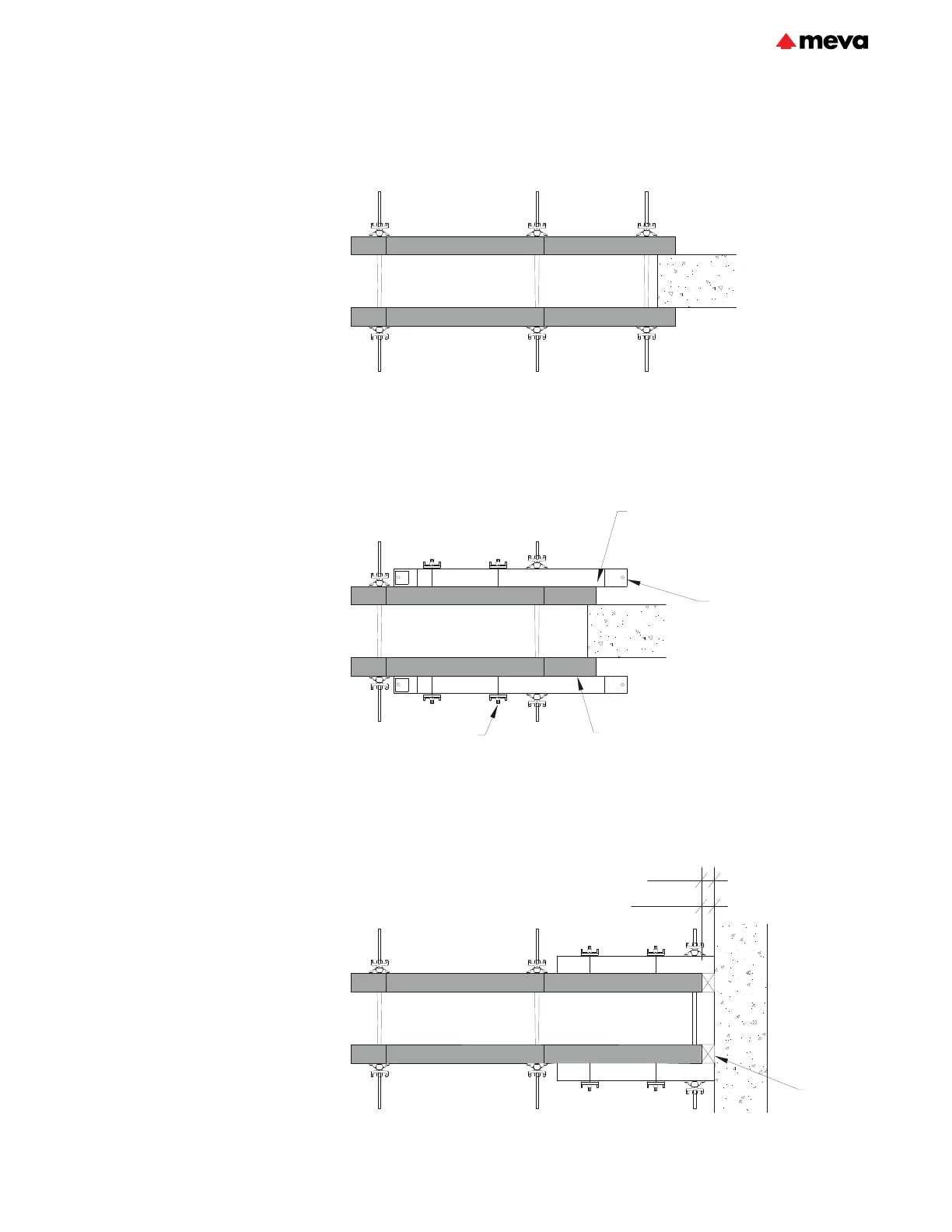

Fig. 35.1
Wood filler
1'-6"
Both tubes of rail section must
cross over panel profile
Min. steel rail size:
R3' up to 1' lap panel
R4' up to 1'-6" lap panel
Fig. 35.2
Fig. 35.3
1'-6"
MPP
MPP
R 4'
R 4'
Lap panel
Flange screw 18
R 3'
R 3'
1" min.
10" max.
Wall formwork
