Meva MevaLite - Vertical Offsets

MevaLite
ML-39
Vertical Offsets

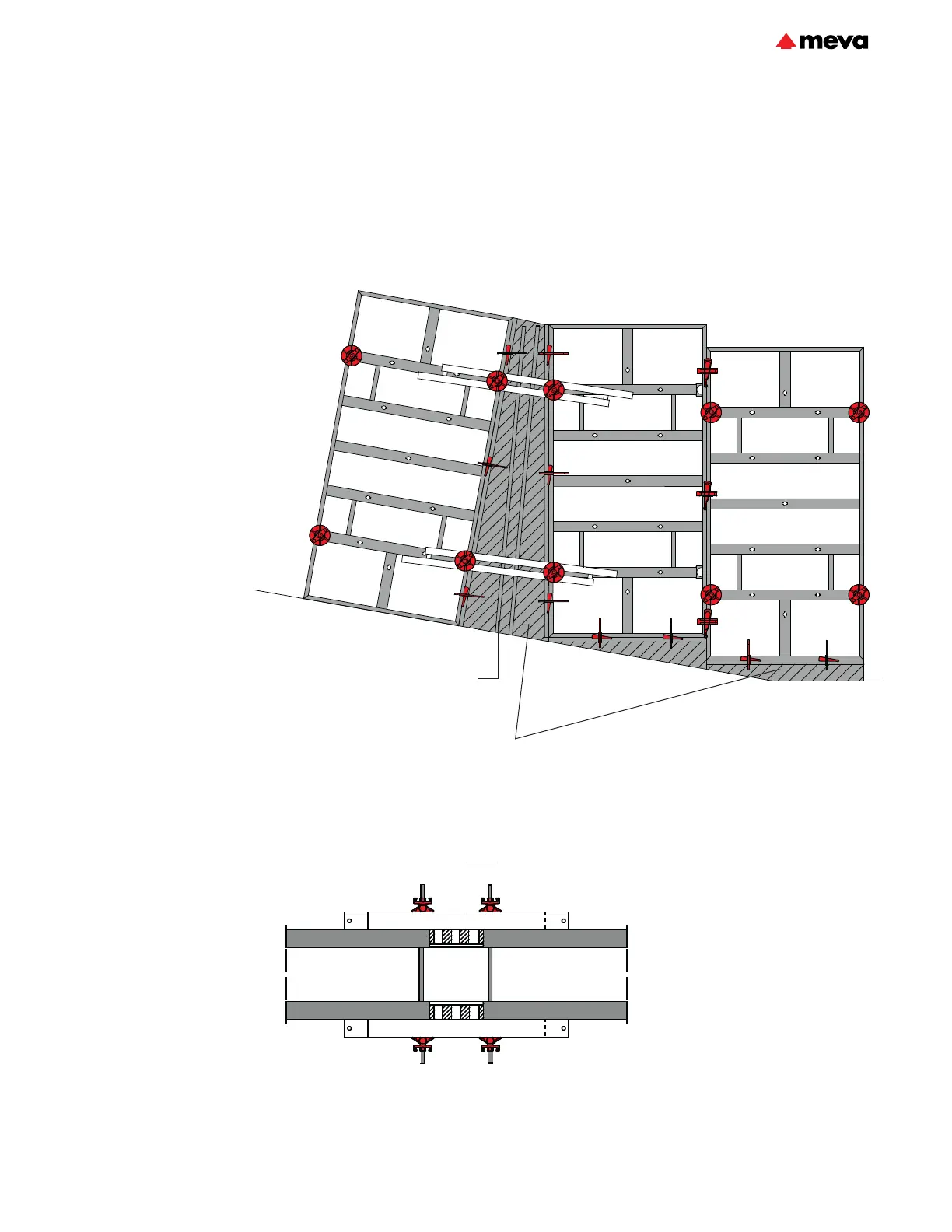

The assembly lock can be attached
at any position on the frame
profile, so all panels can be safely
connected even when offset from
each other vertically (Fig.39.1).
Job built fillers are used to
transition between vertical and
inclined panels (see the "Fillers"
section for additional information
and requirements). They must be
designed and constructed to resist
the intended loads.
Fig. 39.1
Fig. 39.2
Timber profile
Timber profile
Job-built fillers
Wall formwork
