The MevaLite inside corner rigid
is provided with tie holes, and
consists of a aluminum frame with
a replaceable alkus face (Fig.14.1).
The length of each side is 1'
(Fig.14.2).
The MevaLite inside corner
elastic is designed to flex to allow
for easier stripping, and the alkus
face is replaceable (Fig.14.3). The
length of each side is 1' (Fig.14.4).
Steel rails or corner angles are
recommended to stiffen the corner
for concrete placement.
ML-alu fillers (1”, 2”, & 3”) are
used to make adjustments for
different wall thicknesses. Steel
rails may be required depending
on the filler/tie configuration (see
the “Fillers” section) and the wall
thickness.
MevaLite Outside Corners
The outside corners (Fig.14.5,
14.6) are connected to adjacent
panels with assembly locks, but
require more assembly locks than
the standard panel connections.
Steel rails may also be required.
See the "Standard Panels and
Outside Corners" section for
specific requirements.
There are two ways to form 90°
outside corners: with standard
panels and outside corners, or with
multi-purpose panels.

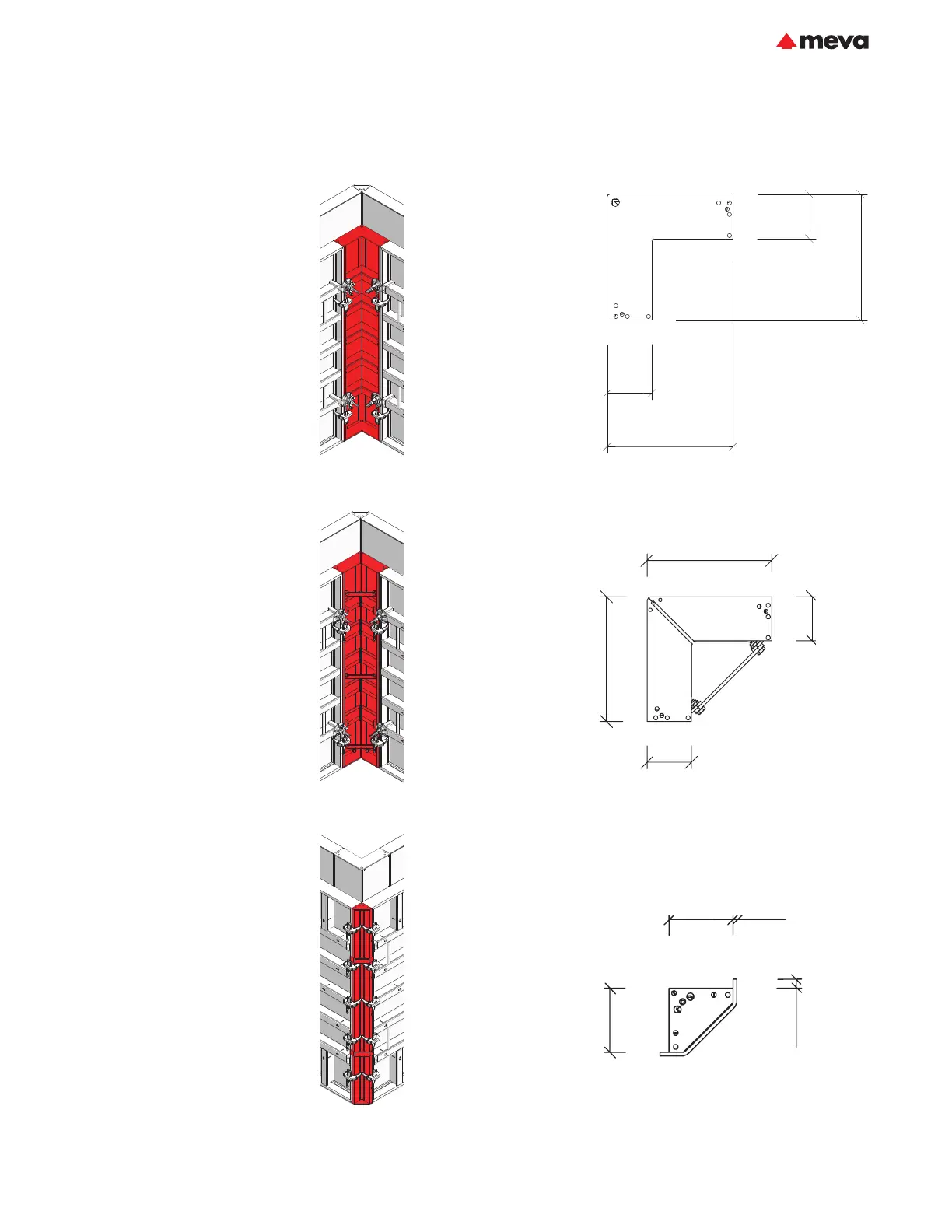

Fig. 14.1
Fig. 14.4
Fig. 14.2
Fig. 14.3
Fig. 14.5 Fig. 14.6
4 1/4”
1’
4 1/4”
1’
19/32”
4 1/4”
4 1/4” 15/64”
1’
1’
4 1/4”
4 1/4”
RIC
IC
