Meva MevaLite - Wall Offsets

ML-38
MevaLite
Wall Offsets

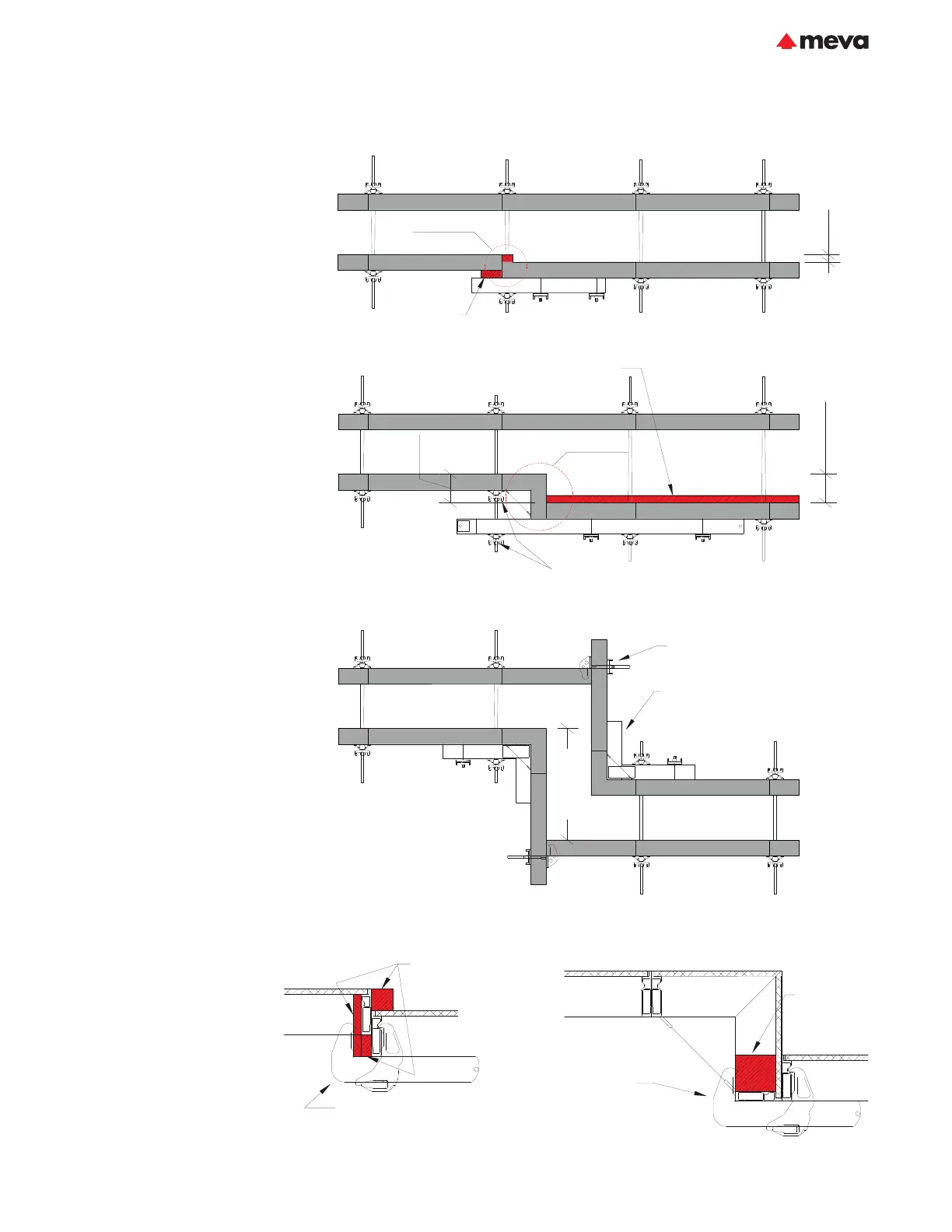

Wall offsets up to 2" can
be formed by offsetting the
corresponding panels, and adding
rails and wood blocking (Fig.38.1).
Offsets between 2" and 73/4" can
be formed using inside corners
(Fig.38.2). The back of the offset
panels are set in line with the end
of the inside corner. A boxout is
needed if the offset is less than
73/4".
Tensile load transfer must be
considered when these details are
used near bulkheads or outside
corners. Additional bracing, struts,
or thru ties may be necessary.
Offsets up to 34" can be formed
using multi-purpose panels with
corner brackets (Fig.38.3). Refer
to the "90 Degree Corners"
section for maximum concrete
pressure based on outside corner
conditions.
Fig. 38.1
Fig. 38.2
Fig. 38.3
Fig. 38.4
Hardwood blocking
R 3'
IC
MPP
Wood blocking
Uni-assembly lock 22
0" to 2"
Articulated flange nuts
Boxout as required
2" to 7 3/4"
Column clamp &
flange nut 100
Corner bracket 40/60
IC
34"max.
MPP
Fig. 38.4
Fig. 38.5
7 3/4"
CB
CB
Fig. 38.5
Uni-assembly
lock 22
Wood
blocking
IC
Wall formwork
Technical Instruction Manual / June 2022
