Meva MevaLite - Taper Tie; Threadbar 5;8 (15 Mm); Tie Claw 23

MevaLite
ML-77
Wall formwork
Technical Instruction Manual - Product list / June 2022
2-500-2990131 ..................16“ ....................................41” ....................................5.1
2-500-2990133 ..................24“ ....................................49” ....................................6.4
2-500-2990135 ..................32“ ....................................57” ....................................7.7

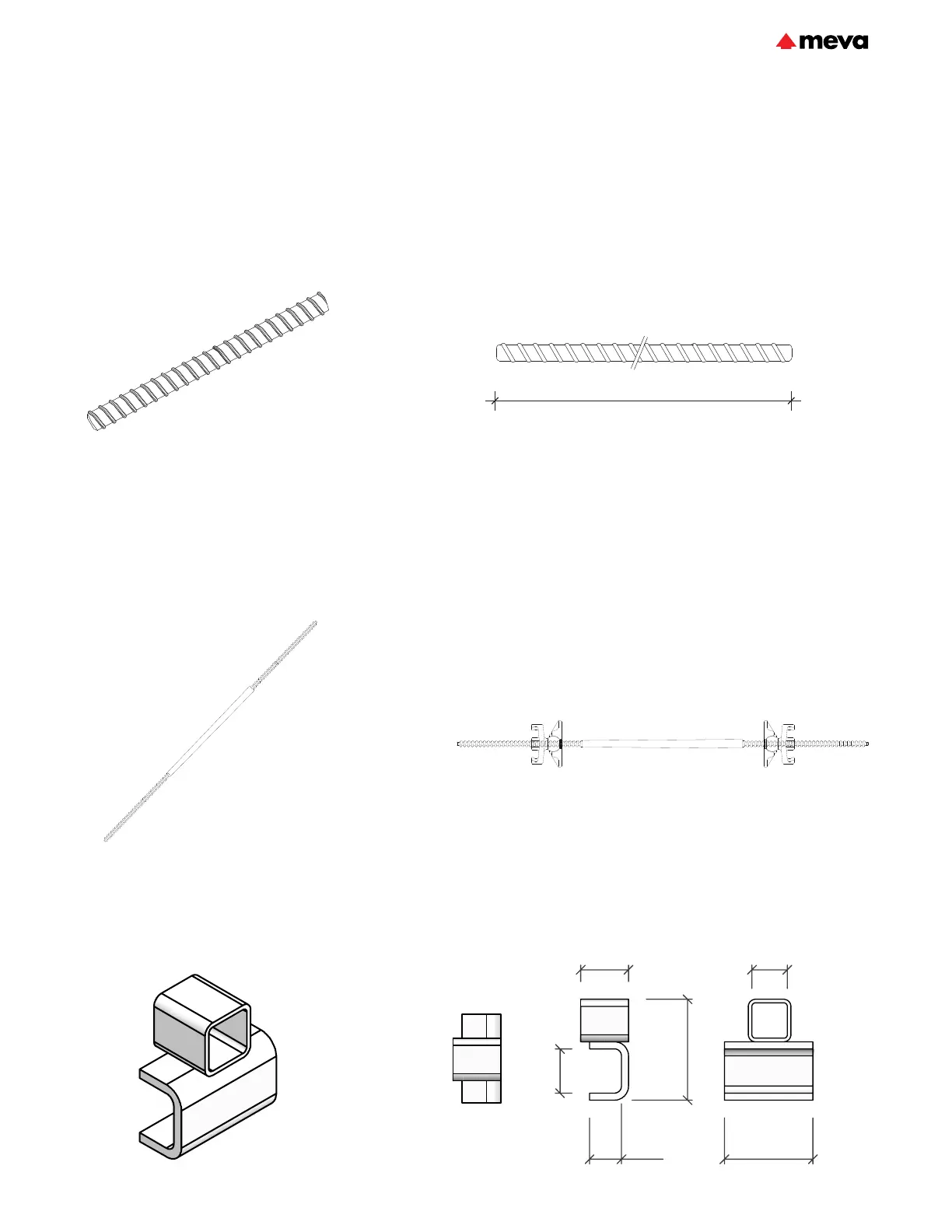

Taper tie
to tie formwork; 5/8“ (15mm) thread diameter,
1“ to 3/4“ taper diameters;
safe working load = 18.75 kips @ 2:1 safety factor
DW 5/8”
Threadbar 5/8” (15mm)
to tie formwork;
safe working load = 21.9 kips @ 2:1 safety factor
2-500-2990158 .............................. 18” .................................................................1.5
2-500-2990156 .............................. 42” .................................................................3.5
2-500-2990154 .............................. 54” .................................................................4.5
2-500-2990152 .............................. 72” .................................................................6.0
Ref.-No. Taper Length Overall Length lb
L = 18” to 72”
DW 5/8”
Tie claw 23
galvanized; permits tieing directly above or
beside MevaLite panels.
29-901-44 ................Tie claw 23 ............................................................................ 0.4
Ref.-No. Description / Application lb
Ref.-No. Description / Application lb
1 1/16”
25/32”
2”
45/64”
1”
2 1/4”
