ML-60
MevaLite
Wall formwork
Technical Instruction Manual - Product list / June 2022
Ref.-No. Description / Application sq. ft. lb

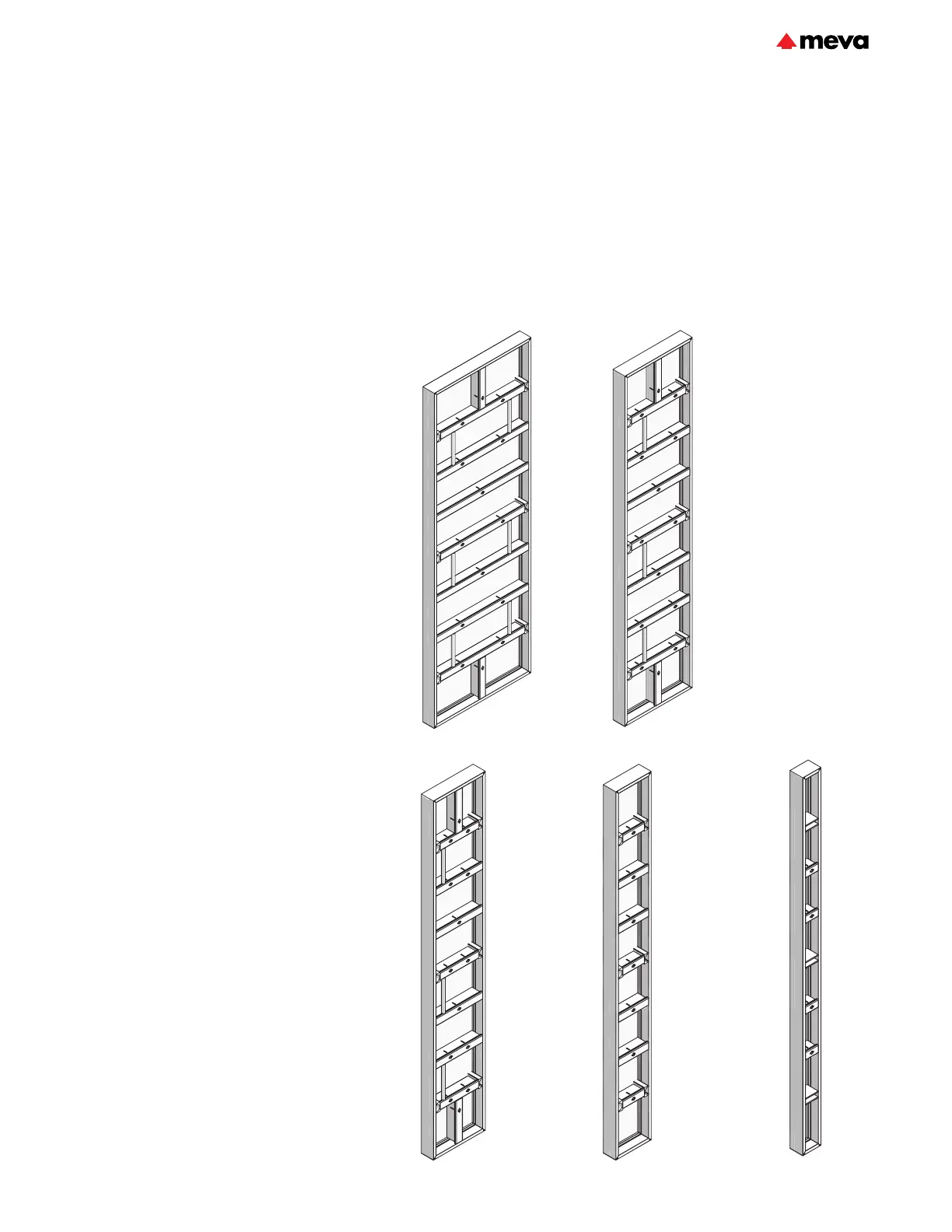

All panels available are listed on the right.
For description and dimensions refer to the
following pages.
22-500-20 ................ML-panel ........................ 9‘ x 3‘ ...................... 27.0 ..........136.2
22-500-30 ................ML-panel ........................ 9‘ x 2’ ...................... 18.0 ............96.6
22-500-40 ................ML-panel ......................9’ x 1’-6” .................... 13.5 ............79.6
22-500-50 ................ML-panel ........................ 9’ x 1’ ........................ 9.0 ............57.5
22-500-60 ................ML-panel ......................9’ x 0’-6” ...................... 4.5 ............38.1Panel height 9’
For panel height 9’: 7 cross stiffeners, of
which 7 are multi- function profiles with
welded DW-threaded nuts. 3 symmetrically
arranged tie holes per panel height.
Attention
Unused tie holes need to be closed with plugs
D 27/30.
ML-panels
