The MevaLite Panel

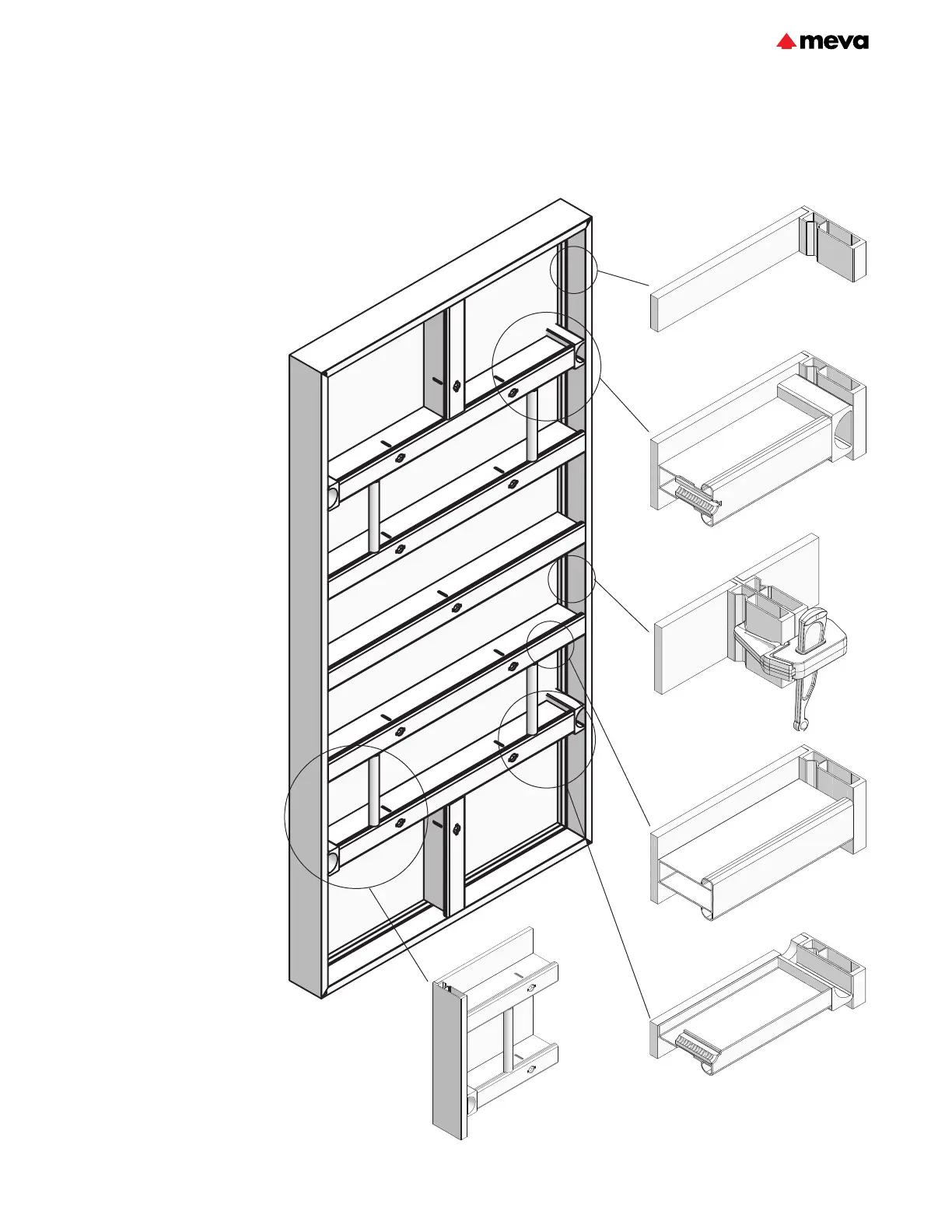

Fig. 4.1
MevaLite panel
Fig. 4.2
The aluminum frames are
manufactured of closed profiles which
are welded in mitered joints. These
profiles are provided with a groove
and an integrated protection for the
forming face.
Fig. 4.3
Large tie pockets allow for easy
insertion of any tie system (taper ties,
she-bolts, thru-rods).
Fig. 4.4
Pioneering panel connection with
MEVA assembly lock.
Fig. 4.5
The ergonomically designed cross
stiffeners are also made of closed
aluminum profiles. The profiles have
the shape of a bone: they are easy
to grab, and the risk of injuries is
eliminated.
Fig. 4.6
The multi-function profiles have
Dywidag threaded nuts inside which
allow for fast and safe attachment of
accessory parts.
Fig. 4.7
The tie-off bar allows safe working
on the formwork. Under no
circumstances should panels be lifted
or moved using these tie-off bars.
Tie-off bars should only be used with
suitable positioning device systems
as described in OSHA 1926-502(e),
supplied by others.
Or, provided the user adhere to
the guidance set forth in OSHA
1926.502(d)(15), 1926.502(d)(15)(i),
1926.502(d)(15)(ii), and all associated
sections, these tie-off bars may
be used with personal fall arrest
systems that meet the requirements
set forth in OSHA. It is the end
user's responsibility to ensure OSHA
requirements are met.
Fig. 4.1
Fig. 4.6
Fig. 4.5
Fig. 4.4
Fig. 4.3
Fig. 4.2
Fig. 4.7
Wall formwork
Technical Instruction Manual / June 2022
