Meva MevaLite - Articulated Foot Plate; Double-Jointed Foot Plate

ML-82
MevaLite
Wall formwork
Technical Instruction Manual - Product list / June 2022

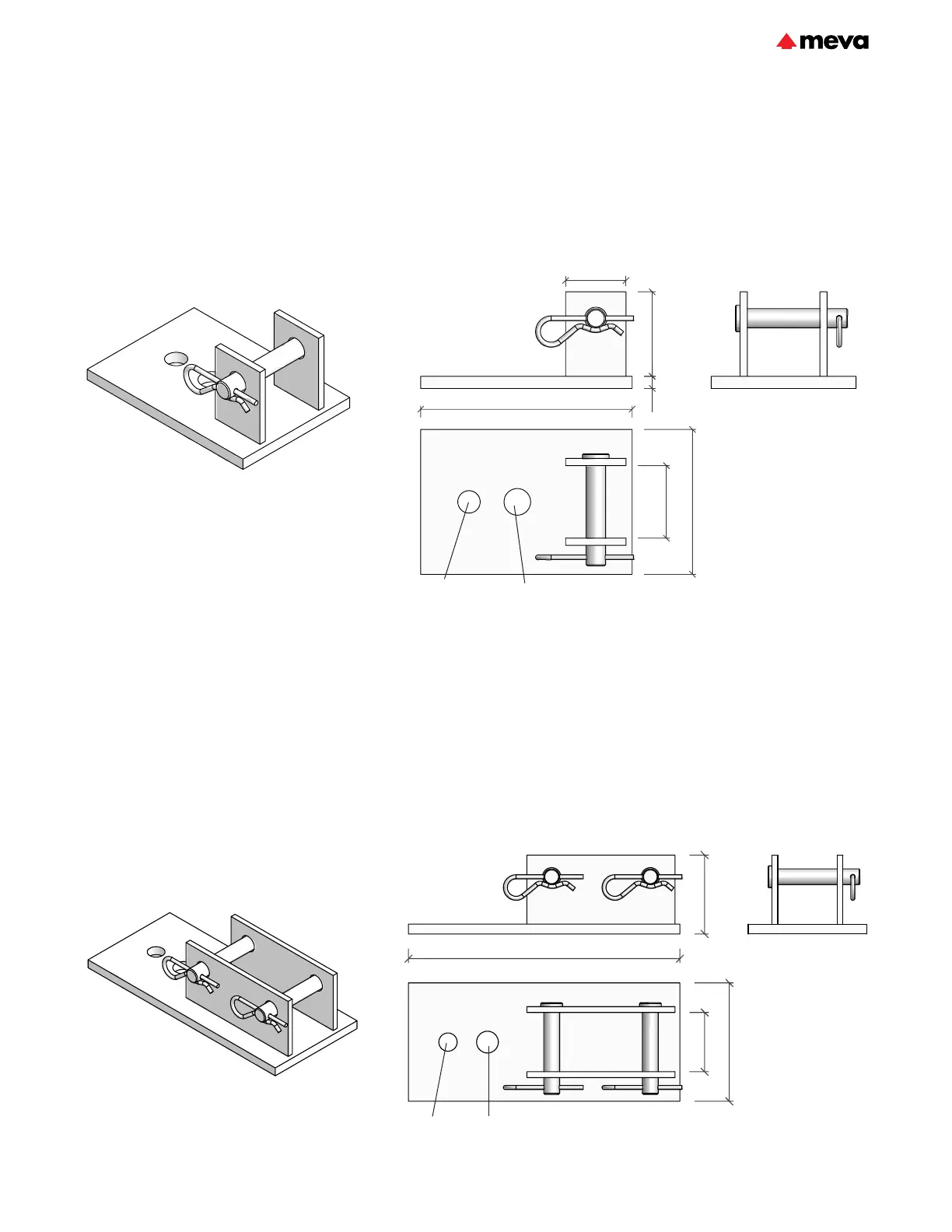

Articulated foot plate
galvanized; to anchor braces with up to 2 1/4“
(58 mm) outside diameter, includes M16x90
bolt and cotter pin.
29-802-48 ................Articulated foot plate ............................................................5.1
Ref.-No. Description / Application lb
2 3/4”
3/8”
2 3/8”
4 3/4”
2”
6 7/8”
Ø 3/4” Ø 7/8”
Double-jointed foot plate
galvanized; to anchor two braces with
diameters up to 2 1/4”(58 mm). Includes two
M16x90 bolts and cotter pins.
29-402-32 ................Double-jointed foot plate ......................................................8.8
Ref.-No. Description / Application lb
3 1/8”
4 3/4”
2 3/8”
10 7/8”
Ø 3/4”
Ø 7/8”
