Meva MevaLite - Pilasters at Corners

MevaLite
ML-37
Pilasters at Corners

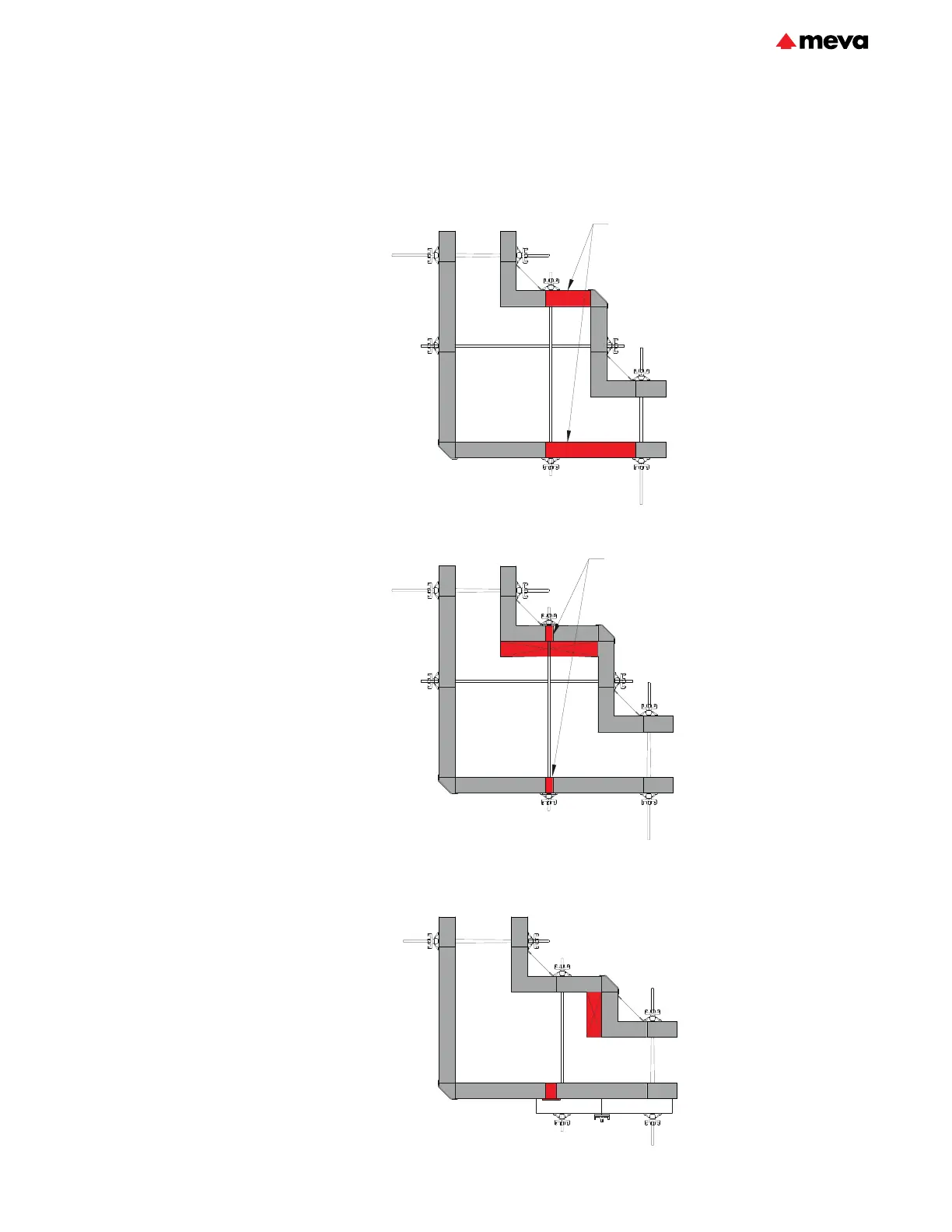

Example formwork solutions for
wall corners with pilasters are
shown in Fig.37.1 - Fig.37.3.
Different pilaster sizes and wall
thicknesses can be accomodated
by using combinations of fillers
and boxouts.
Refer to the "90° Corners" section
for lock requirements at outside
corners.
Fig. 37.1
Fig. 37.2
Fig. 37.3
IC
Add sill below
panels to avoid tie
interference
IC
IC
IC
AF
OC
IC
OC
OC
Add sill below
fillers to avoid tie
interference
AF
IC
OC
OC
AF
R3'
OC
Wall formwork
Technical Instruction Manual / June 2022
