ML-20
MevaLite
Articulated Corners
If the inside angle is ≤ 100º, steel
rails and wood blocking are not
required on the inside (Fig.20.1).
To determine the fill distance (y)
between the MevaLite articulated
outside corner and the first panel
where a tie can be used, see tables
on pages 19 and 20.
Form the fill distance with the
widest MevaLite panel possible
and a wood filler ≤ 6" wide (if
needed). Always locate wood
fillers next to a tied MevaLite
panel.
Description Ref.-No.
ML-articulated inside corners
9’...............................................22-506-10
6’...............................................22-506-20
4’...............................................22-506-30
3’...............................................22-506-40
ML-articulated outside corners
9’ 22-506-60
6’...............................................22-506-70
4’...............................................22-506-80
3’...............................................22-506-90
EA-assembly lock .......................29-205-50
Uni-assembly lock 22 .................29-400-85
α ≤ 100°
AIC
AOC
t
y

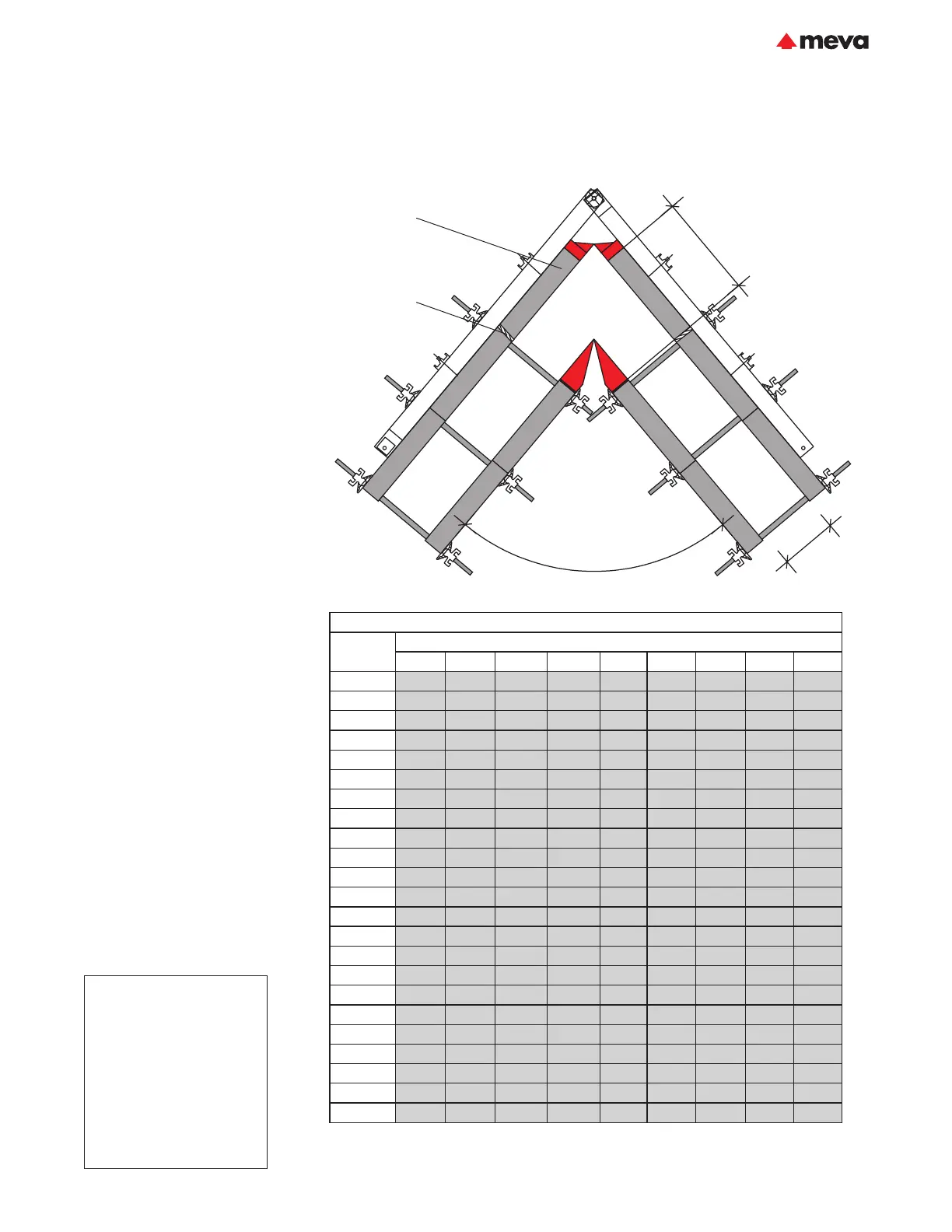

Fig. 20.1
Fill Distance, y (inches) for 16" - 24" Wall Thicknesses
Angle, α
(degrees)
Wall Thickness, t (inches)
16 17 18 19 20 21 22 23 24
70 29.9 31.3 32.7 34.1 35.6 37.0 38.4 39.8 41.3
75 27.9 29.2 30.5 31.8 33.1 34.4 35.7 37.0 38.3
80 26.1 27.3 28.5 29.6 30.8 32.0 33.2 34.4 35.6
85 24.5 25.6 26.6 27.7 28.8 29.9 31.0 32.1 33.2
90 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0
95 21.7 22.6 23.5 24.4 25.3 26.2 27.2 28.1 29.0
100 20.4 21.3 22.1 22.9 23.8 24.6 25.5 26.3 27.1
105 19.3 20.0 20.8 21.6 22.3 23.1 23.9 24.6 25.4
110 18.2 18.9 19.6 20.3 21.0 21.7 22.4 23.1 23.8
115 17.2 17.8 18.5 19.1 19.7 20.4 21.0 21.7 22.3
120 16.2 16.8 17.4 18.0 18.5 19.1 19.7 20.3 20.9
125 15.3 15.8 16.4 16.9 17.4 17.9 18.5 19.0 19.5
130 14.5 14.9 15.4 15.9 16.3 16.8 17.3 17.7 18.2
135 13.6 14.0 14.5 14.9 15.3 15.7 16.1 16.5 16.9
140 12.8 13.2 13.6 13.9 14.3 14.6 15.0 15.4 15.7
145 12.0 12.4 12.7 13.0 13.3 13.6 13.9 14.3 14.6
150 11.3 11.6 11.8 12.1 12.4 12.6 12.9 13.2 13.4
155 10.5 10.8 11.0 11.2 11.4 11.7 11.9 12.1 12.3
160 9.8 10.0 10.2 10.4 10.5 10.7 10.9 11.1 11.2
165 9.1 9.2 9.4 9.5 9.6 9.8 9.9 10.0 10.2
170 8.4 8.5 8.6 8.7 8.7 8.8 8.9 9.0 9.1
175 7.7 7.7 7.8 7.8 7.9 7.9 8.0 8.0 8.0
180 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0
MevaLite panel
Wood filler
RAIL
RAIL
Note:
See the "90°
Corners"
section for lock
requirements at
outside corners
Wall formwork
Technical Instruction Manual / June 2022
