Meva MevaLite - Page 63

MevaLite
ML-63
Wall formwork
Technical Instruction Manual - Product list / June 2022
Ref.-No. Description / Application sq. ft. lb
22-501-20 ................ML-panel ........................ 6’ x 3’ ...................... 18.0 ............85.8
22-501-30 ................ML-panel ........................ 6’ x 2’ ...................... 12.0 ............67.7
22-501-40 ................ML-panel ......................6’ x 1’-6” ...................... 9.0 ............55.6
22-501-50 ................ML-panel ........................ 6’ x 1’ ........................ 6.0 ............39.5
22-501-60 ................ML-panel ......................6’ x 0’-6” ...................... 3.0 ............26.0

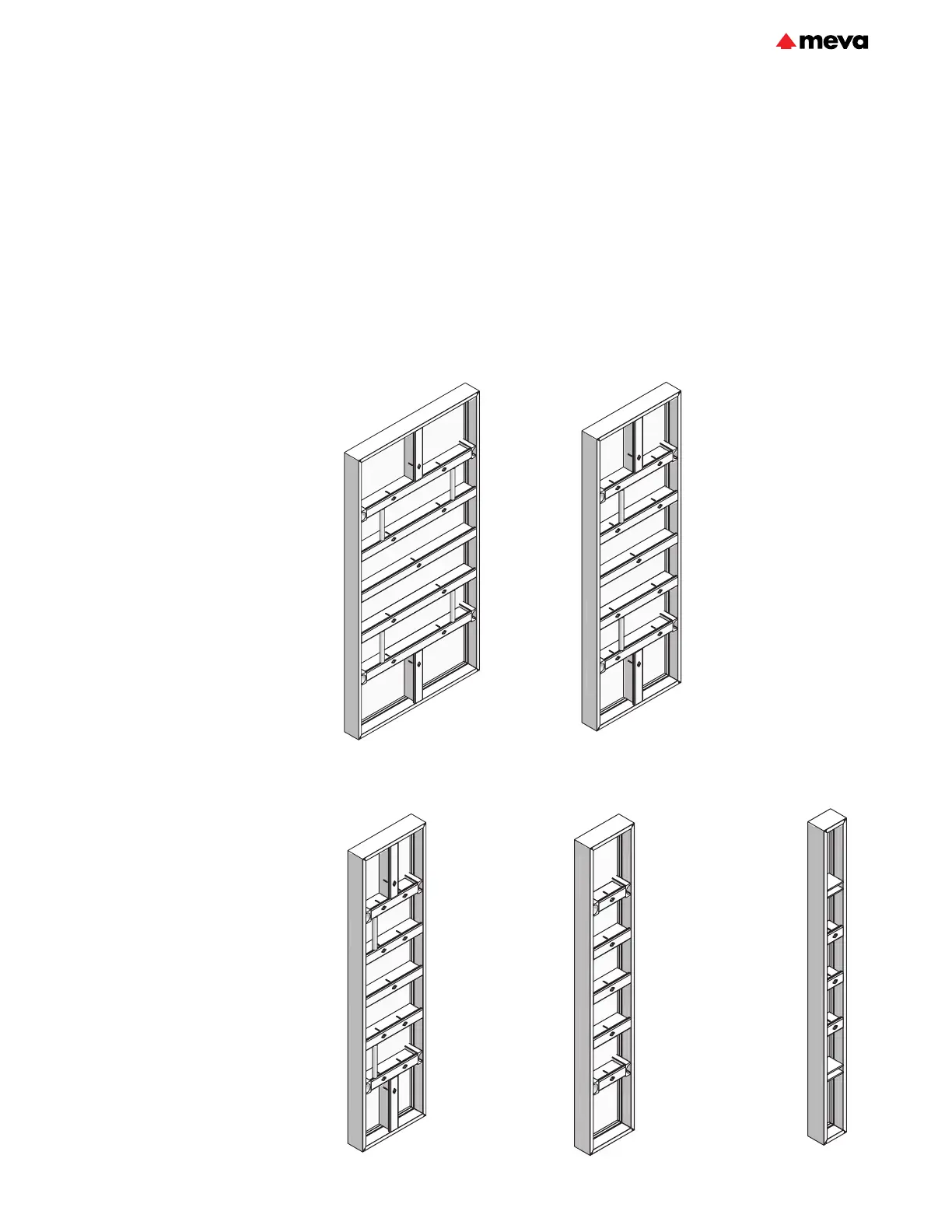

Panel height 6’
For panel height 6’: 5 cross stiffeners, of
which 5 are multi- function profiles with
welded DW-threaded nuts. 2 symmetrically
arranged tie holes per panel height.
Attention
Unused tie holes need to be closed with plugs
D 27/30.
ML-panels
