Meva MevaLite - Page 66

ML-66
MevaLite
Wall formwork
Technical Instruction Manual - Product list / June 2022
Ref.-No. Description / Application sq. ft. lb

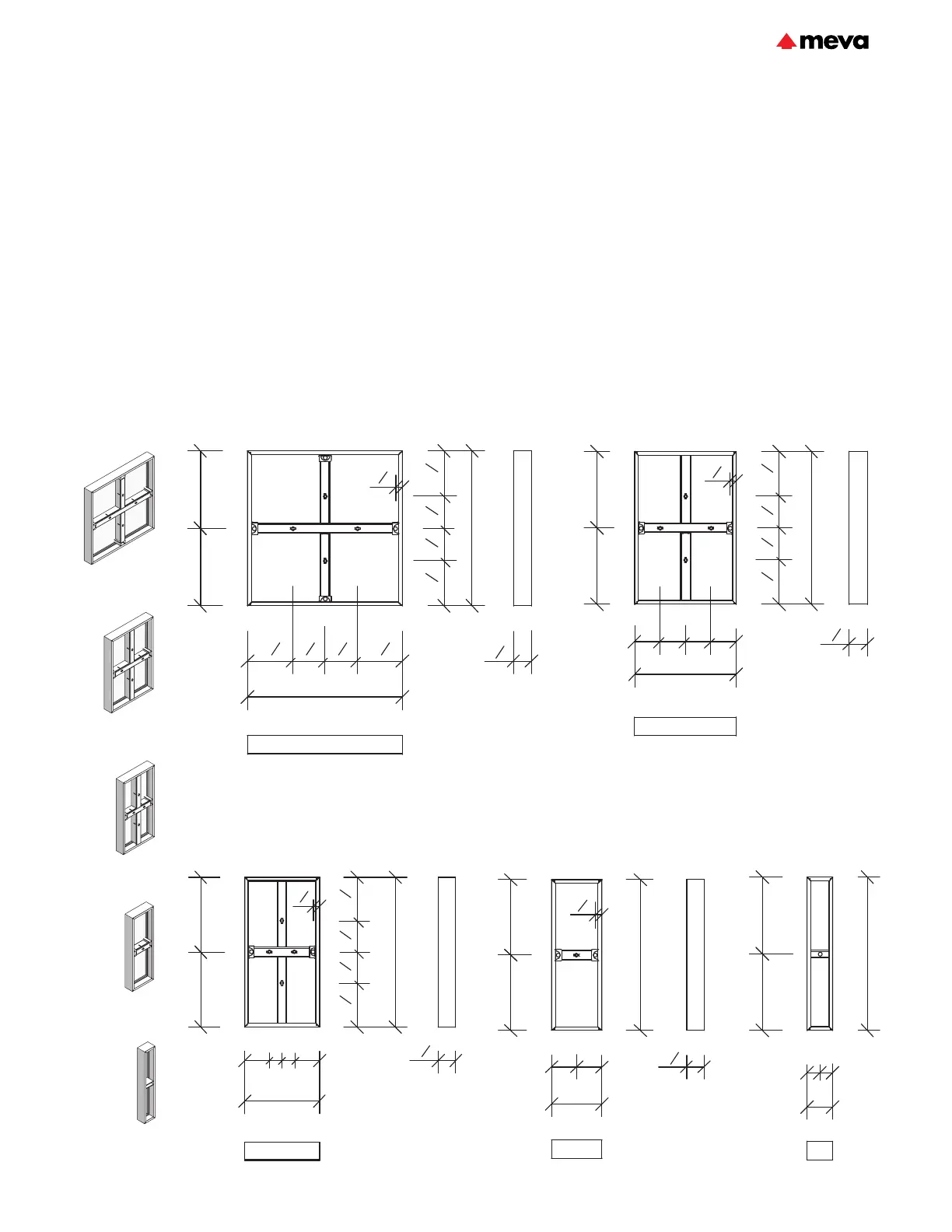

Panel height 3’
For panel height 3’: 1 cross stiffener, of which
1 is a multi- function profile with welded
DW-threaded nuts. The only exception is the 6”
wide panel, which has no multi-function profile.
1 symmetrically arranged tie hole per panel
height.
22-503-20 ................ML-panel ........................ 3’ x 3’ ........................ 9.0 ............47.6
22-503-30 ................ML-panel ........................ 3’ x 2’ ........................ 6.0 ............34.2
22-503-40 ................ML-panel ......................3’ x 1’-6” ...................... 4.5 ............28.2
22-503-50 ................ML-panel ........................ 3’ x 1’ ........................ 3.0 ............19.0
22-503-60 ................ML-panel ......................3’ x 0’-6” ...................... 1.5 ............12.3
Attention
Unused tie holes need to be closed with plugs
D 27/30.
