2 - 22 046-001141-00 A5/A3™ Service Manual

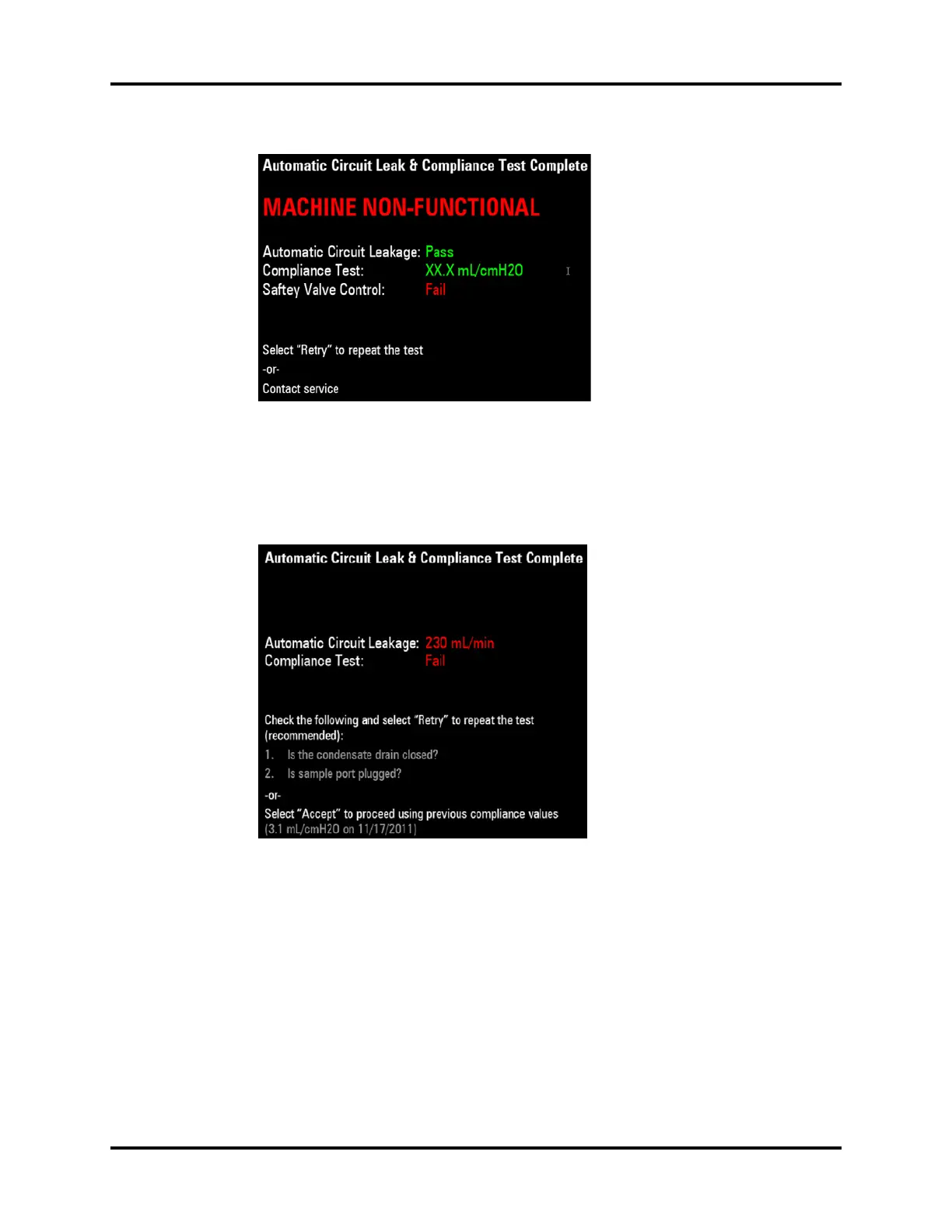

FIGURE 2-29 Machine Non-Functional Screen
The following screen is displayed if the automatic circuit leak test is failed and the Leak ≥200 mL/min
and ≤1000 mL. You can select Retry to perform the automatic circuit leak test again or accept the
result continue with automatic ventilation.
FIGURE 2-30 Automatic Circuit Leak and Compliance Test: Fail
The following screen is displayed if the automatic circuit leak test is failed and the leak >1000 mL. You
can select Override to enter Standby mode. But mechanical ventilation is disabled. You can select
Retry to perform automatic circuit leak test again.
