Disassemble the Breathing System
Repair and Disassembly
6 - 48
046-001141-00
A5/A3™ Service Manual
6.3.2
Remov
e the Breathing
T
ubes
NOTE:
When disassembling the breathing tube
, hold the tube connectors at
both ends of the tube to prev
ent damage to the tube.

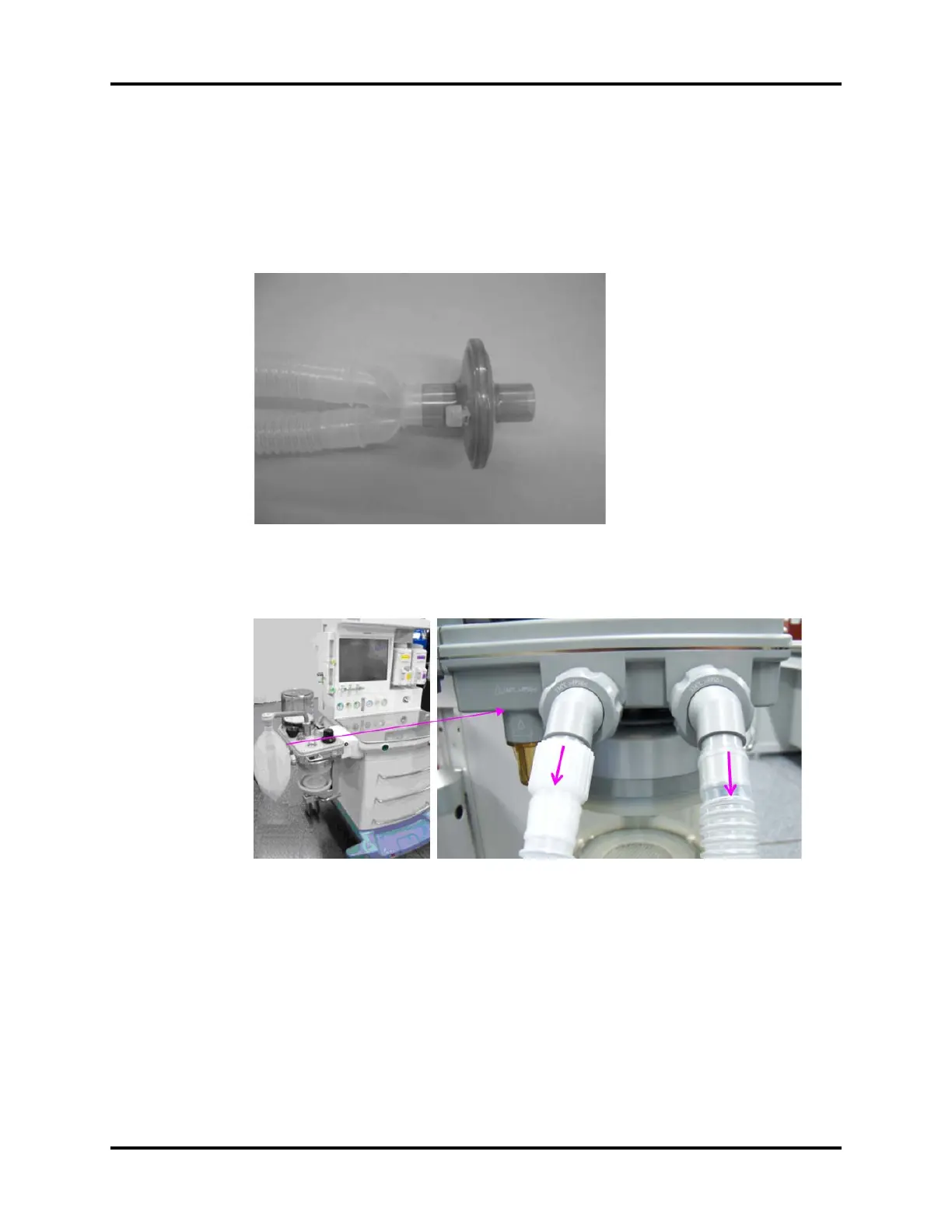

1.
Remove the filter fr
om the
Y piece.
FIGURE 6-91
2.
Disconnect the breathing tubes from the inspir
ation/expi
ration conn
ec
tors on the circuit.
FIGURE 6-92
