Disassemble the Assemblies Repair and Disassembly
6 - 8 046-001141-00 A5/A3™ Service Manual

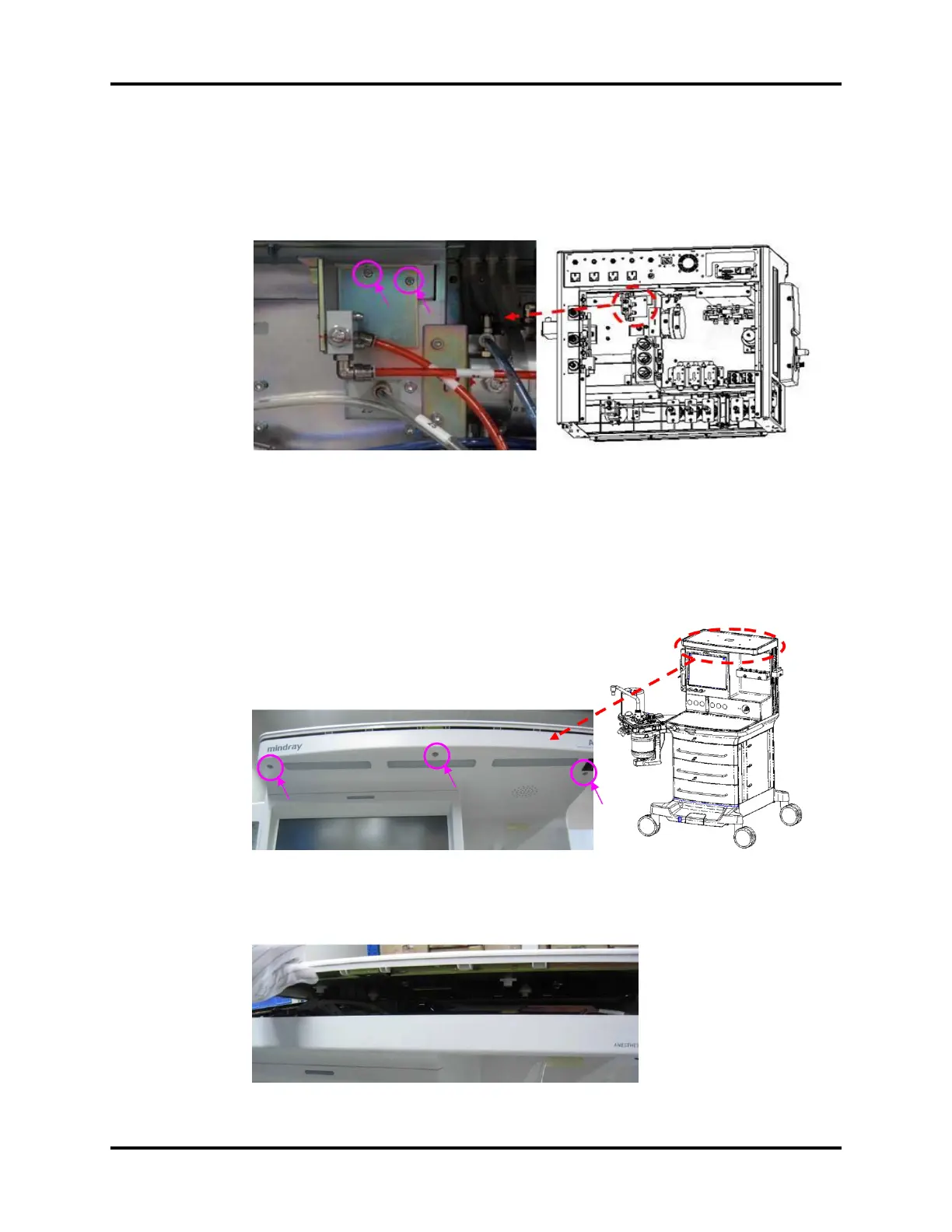

6.2.1.11 Remove the Pneumatic Resistor Block Assembly
1. Open the service door.
2. Unplug the tubes from the pneumatic resistor block assembly.
3. Unscrew the two screws and remove the pneumatic resistor block assembly.
FIGURE 6-12
6.2.2 Disassemble Hardware Box
6.2.2.1 Remove the Top Plate of the Hardware Box
1. Unscrew the three screws from the top plate of the hardware box.
FIGURE 6-13
2. Lift off the top plate to remove it.
FIGURE 6-14
