A5/A3™ Service Manual 046-001141-00 6 - 43
Repair and Disassembly Disassemble the Assemblies

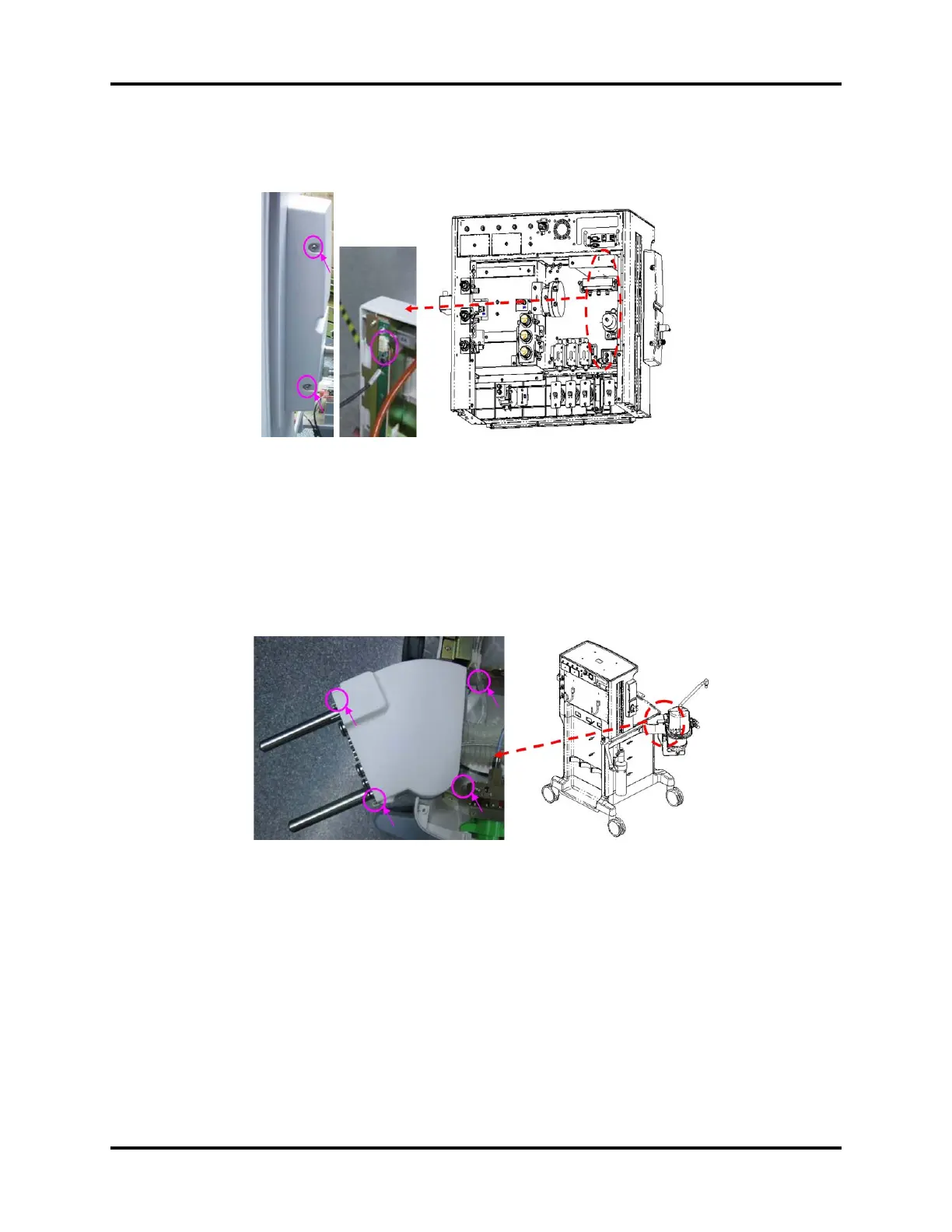

3. Remove the two screws on the auxiliary gas outlet assembly to remove the assembly.
FIGURE 6-80
6.2.9 Remove the Rotating Block Cover of Breathing Circle
1. Remove the work surface cover plate and refer to “Remove the Work Surface Cover Plate” on
page 6-20.
2. Unplug the breathing system assembly from the rotating block.
3. Remove the four screws and remove the rotating block cover of breathing circle.
FIGURE 6-81
6.2.10 Remove the AGSS Assembly
1. Unplug the transfer tubes from AGSS assembly.
2. Loosen the AGSS rail locking knob on the AGSS assembly. Lift the AGSS assembly along the side
to remove the assembly.
