Mindray A5 Service Manual

Disassemble the Breathing System Repair and Disassembly
6 - 58 046-001141-00 A5/A3™ Service Manual

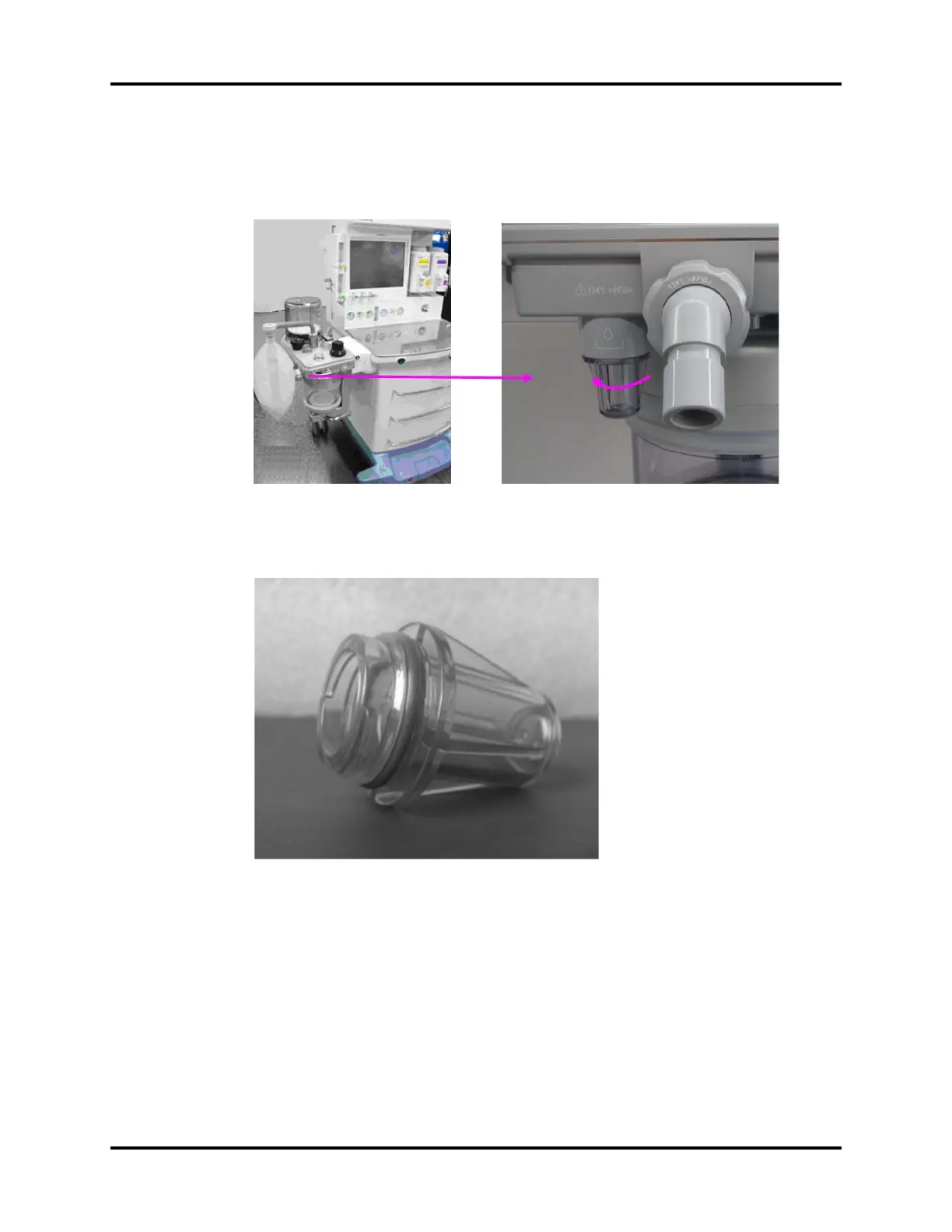

6.3.11 Remove the Water Collection Cup
1. Hold the water collection cup and turn it counterclockwise to remove it.
FIGURE 6-111
2. Remove the water collection cup.
FIGURE 6-112

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
