Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 6 - 57
Repair and Disassembly Disassemble the Breathing System

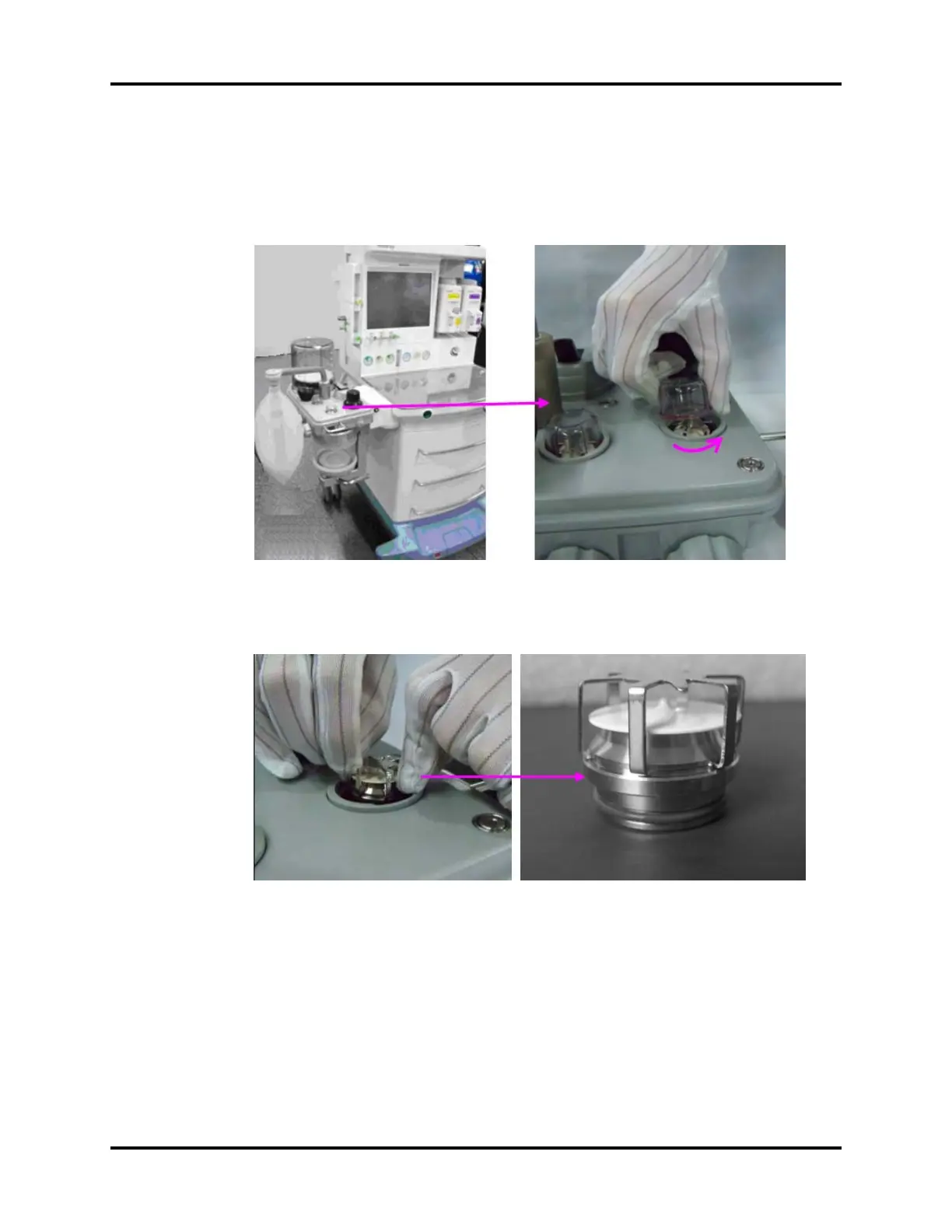

6.3.10 Disassemble the Expiratory/Inspiratory Check Valve
Assemblies
1. Turn the check valve cover counterclockwise to remove it.
FIGURE 6-109
2. Pull out the check valve as shown in the following picture.
FIGURE 6-110

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
