Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 3 - 25
Periodic Maintenance Functional Tests

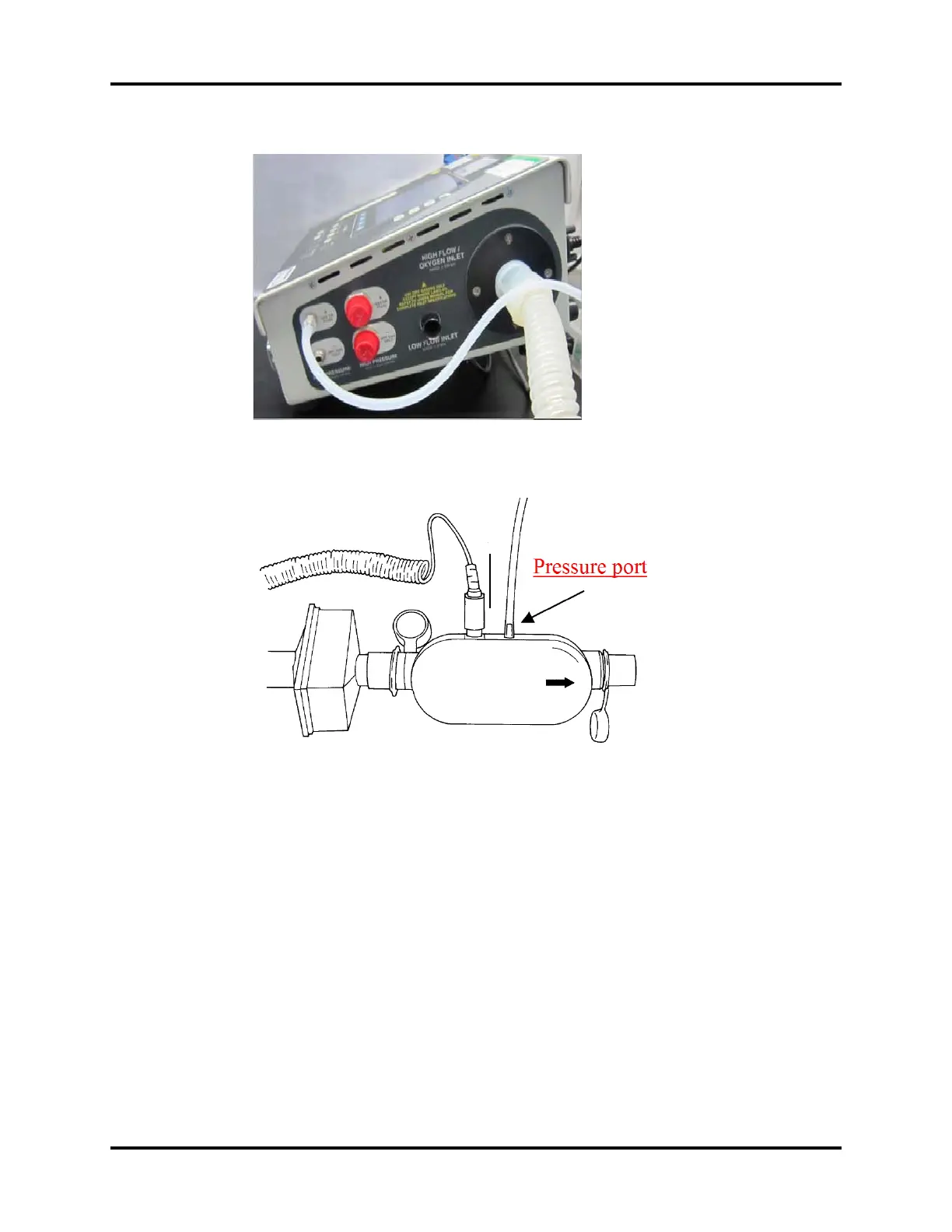

FIGURE 3-27 Calibration Device (VT Plus)
FIGURE 3-28 TSI Certifier 4070
2. Set up the calibration device as described below.
To set the Fluke VT-Plus:
a. Pressure Setting: Press the PRESSURE button on the front control panel of the calibration,
select Range and then set it to Low Press.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
