Mindray A5 - Page 209

A5/A3™ Service Manual 046-001141-00 4 - 23
Calibration System Calibration

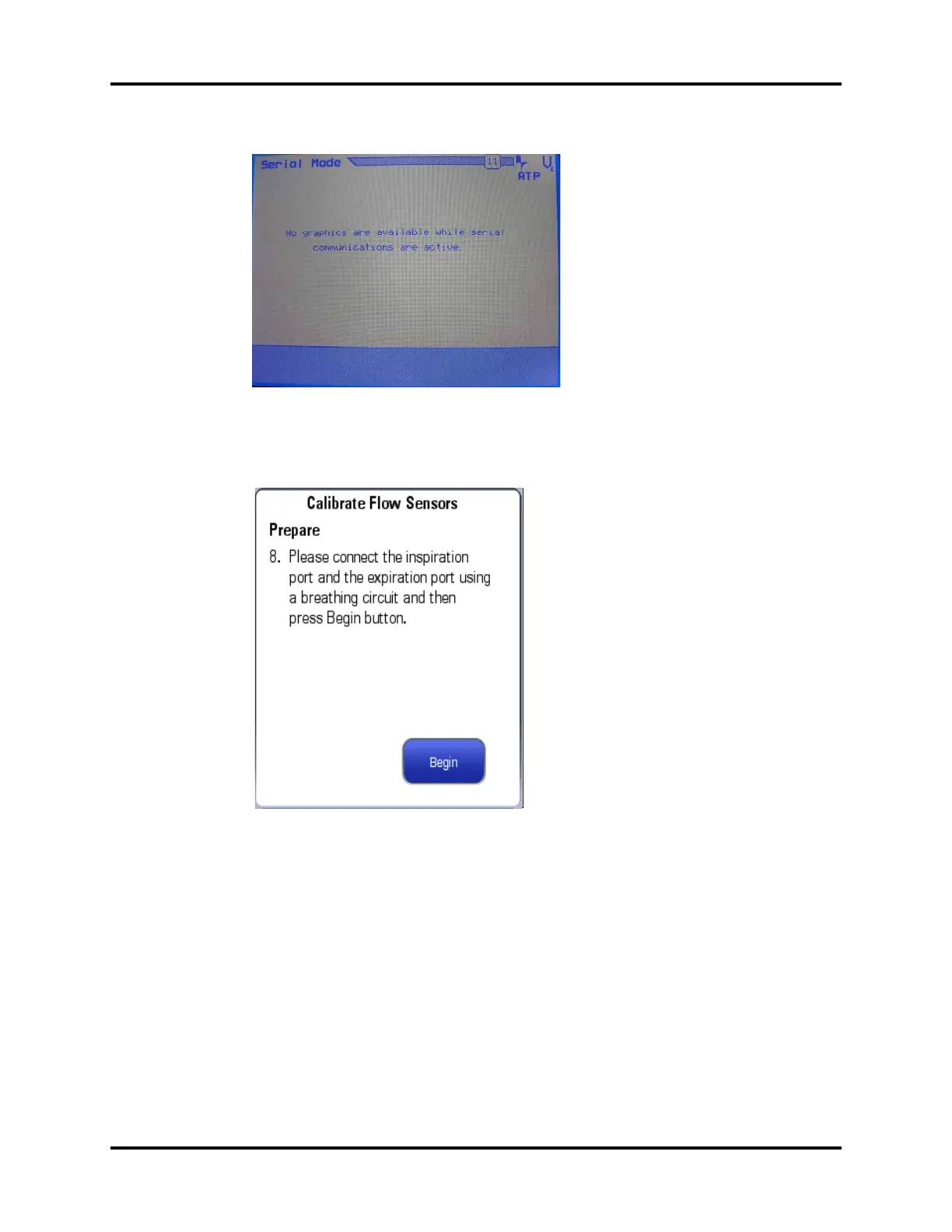

FIGURE 4-24
6. Press the Next button to open the menu shown below.
FIGURE 4-25
7. Connect the inspiration port and expiration port of the anesthesia machine following the on-
screen instructions, shown below.
