System Calibration Calibration
4 - 42 046-001141-00 A5/A3™ Service Manual
4.3.4.1 Calibration Procedures
NOTE: Before pressure calibration, make sure that the tubes are not leaky
when connected.
NOTE: Do not move or press the tubes during calibration.
NOTE: You can select VT Plus for auto calibration. You can also select pressure
calibration device which satisfies the accuracy requirement for manual
calibration. Manual calibration is available in version 1.03.00 and
higher.
4.3.4.1.1 Auto Calibration
Follow these steps to calibrate pressure sensors and the PEEP valve.
1. Make sure that the anesthesia machine is in standby mode.

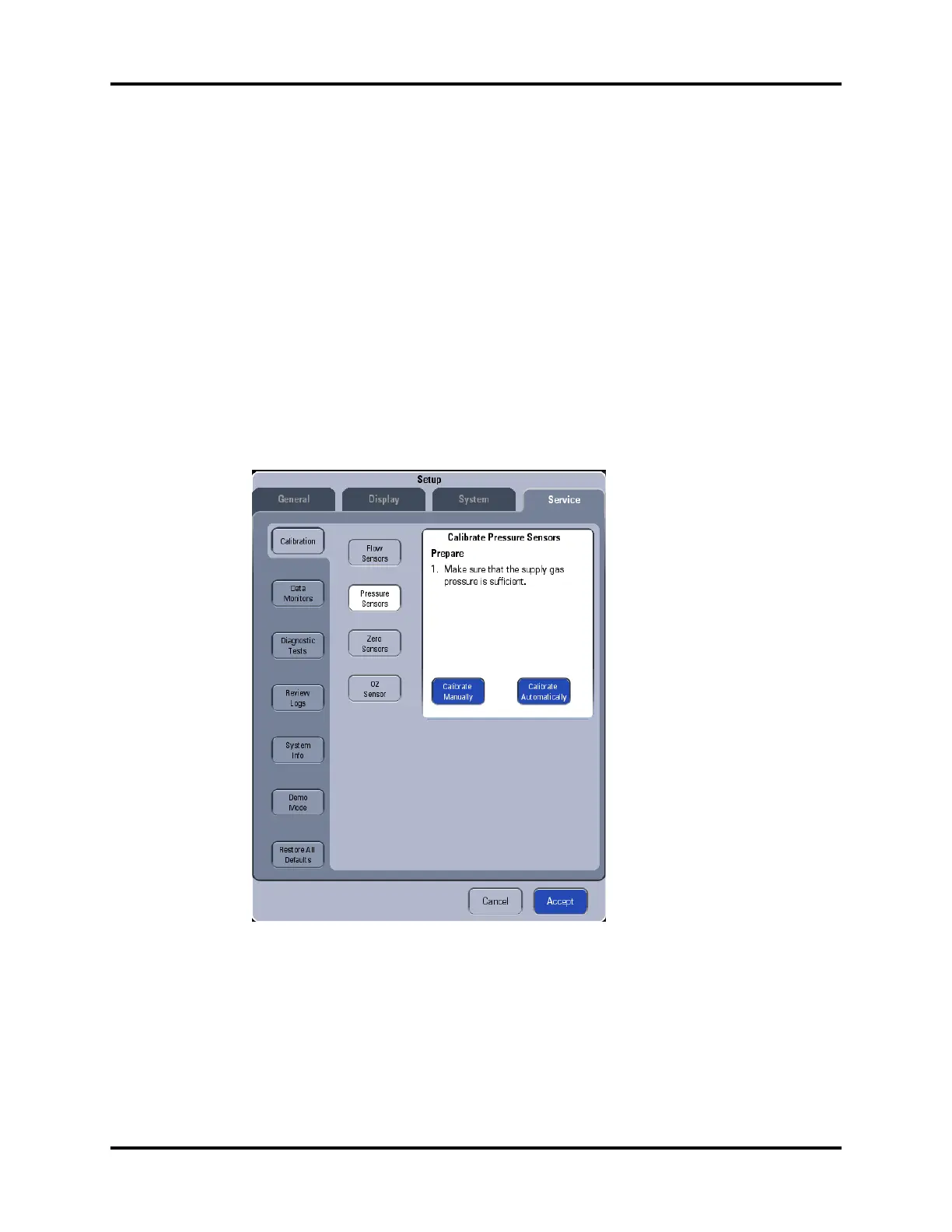

2. Select Setup-> Service-> Calibration-> Pressure Sensors to access the screen shown below.
FIGURE 4-48
3. Select Calibrate Automatically button to open the menu shown below.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
