Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 4 - 51
Calibration System Calibration

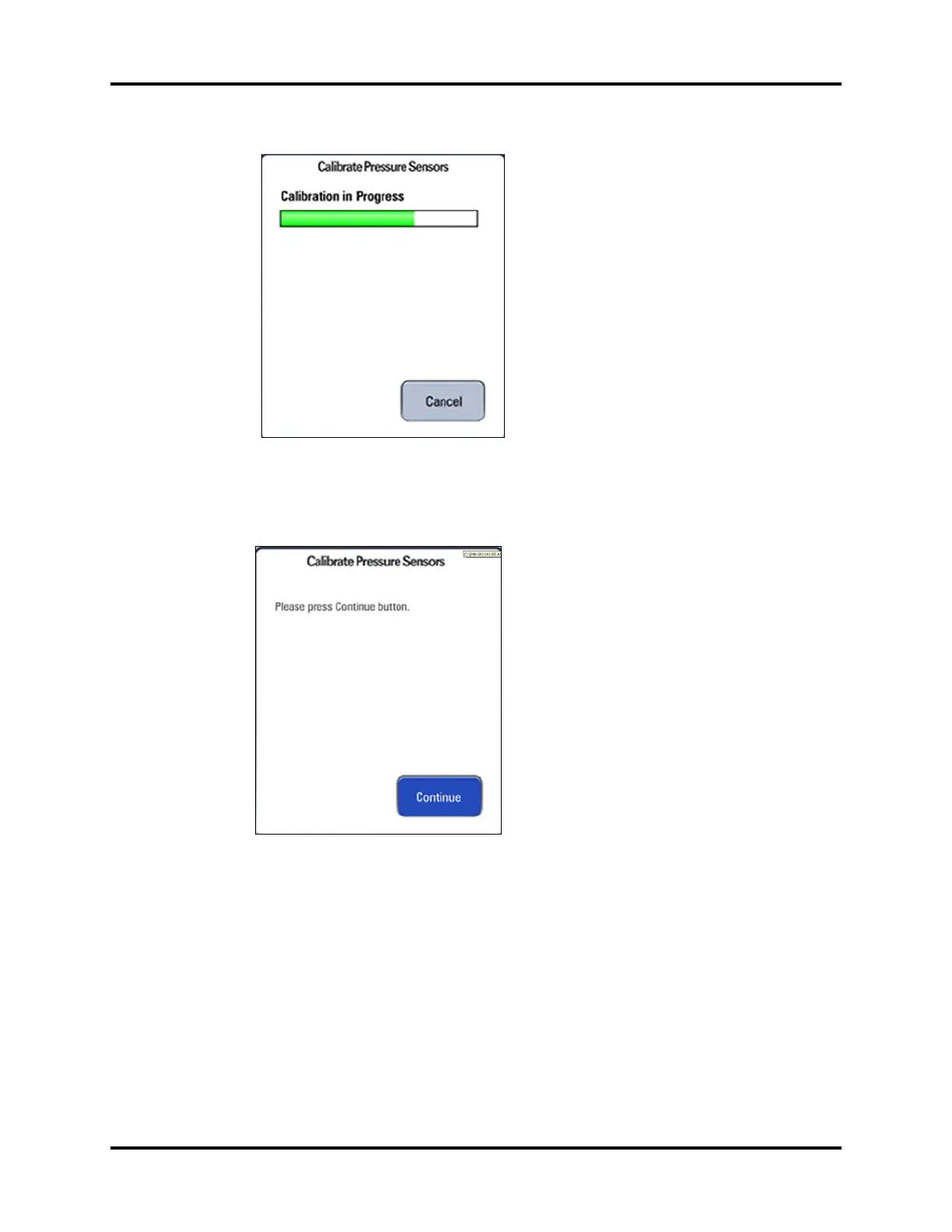

FIGURE 4-63
6. The menu shown below is displayed after the first step of manual calibration is completed.
FIGURE 4-64
7. Select Continue to access the menu shown below. The system will calibrate the 32 calibration
points one by one. Of the 32 calibration points, points 1 to 16 correspond to the rising curve
while points 17-32 correspond to the falling curves. During the calibration, you can select to re-
calibrate any calibration point. When calibrating the point corresponding to falling curve, you
cannot change the point corresponding to rising curve. When Waiting is displayed in the cell,
wait for the system to control pressure. When Input Cal Value is displayed in the cell, input the
standard pressure value displayed by the calibration device. After having inputted the standard
pressure values of all the 32 calibration points, select Accept to check and save the calibration
data.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
