Mindray A5 Service Manual

Pneumatic Circuit System Problems Repair and Troubleshooting
5 - 22 046-001141-00 A5/A3™ Service Manual
FIGURE 5-10

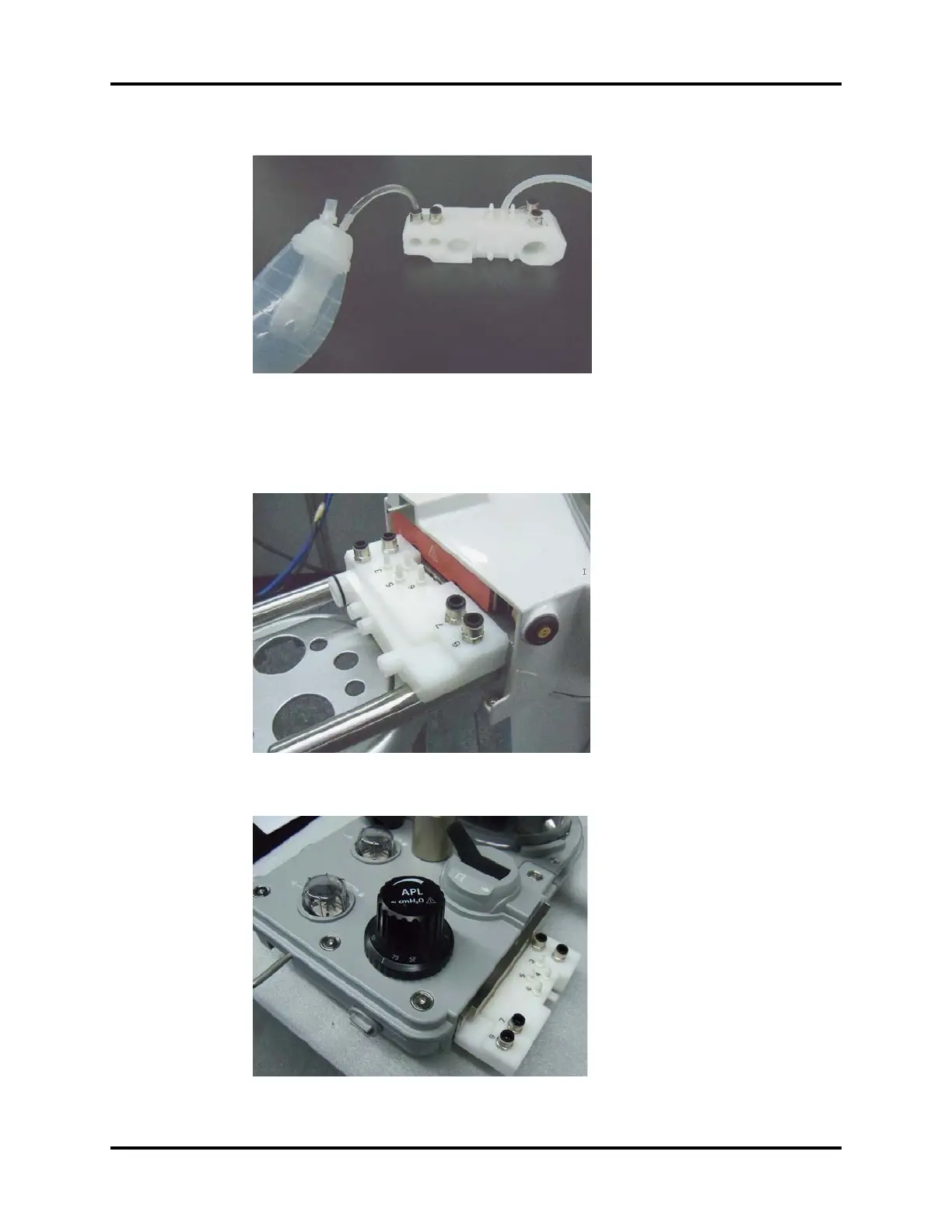

The circuit adapter test fixture can be mounted either onto the circuit adapter or onto the removed
breathing system. The following pictures show the test fixture mounted in position.
FIGURE 5-11
FIGURE 5-12
