Mindray A5 Service Manual

Pneumatic Circuit System Problems Repair and Troubleshooting
5 - 24 046-001141-00 A5/A3™ Service Manual
FIGURE 5-15
FIGURE 5-16
5.3.1.3 Precautions for Use of Vaporizer Manifold Test Fixture

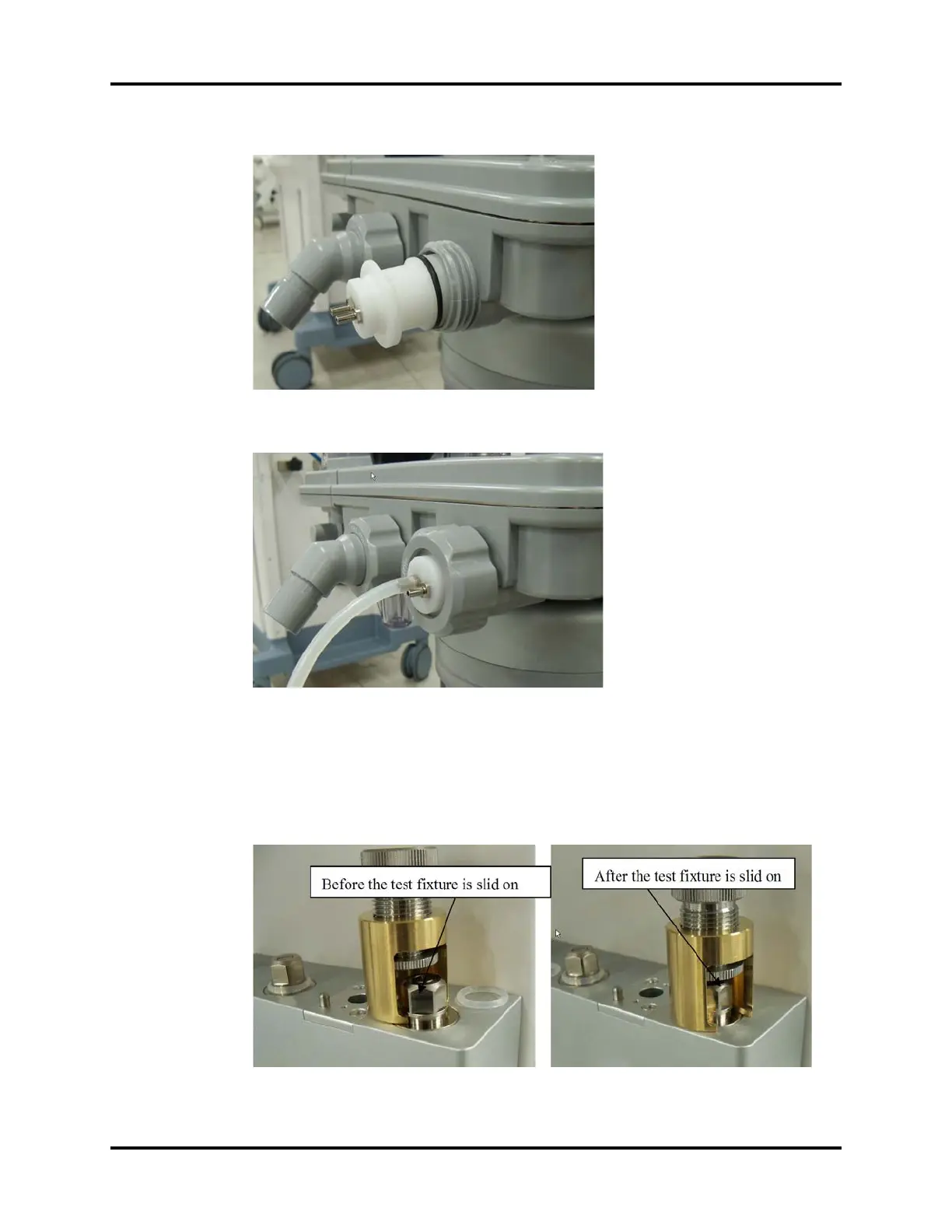

When using the vaporizer manifold test fixture, remove the o-ring seal on the vaporizer manifold
assembly. Then slide the test fixture onto the connector, as shown below.
FIGURE 5-17
