A5/A3™ Service Manual 046-001141-00 5 - 61
Repair and Troubleshooting Pneumatic Circuit System Problems

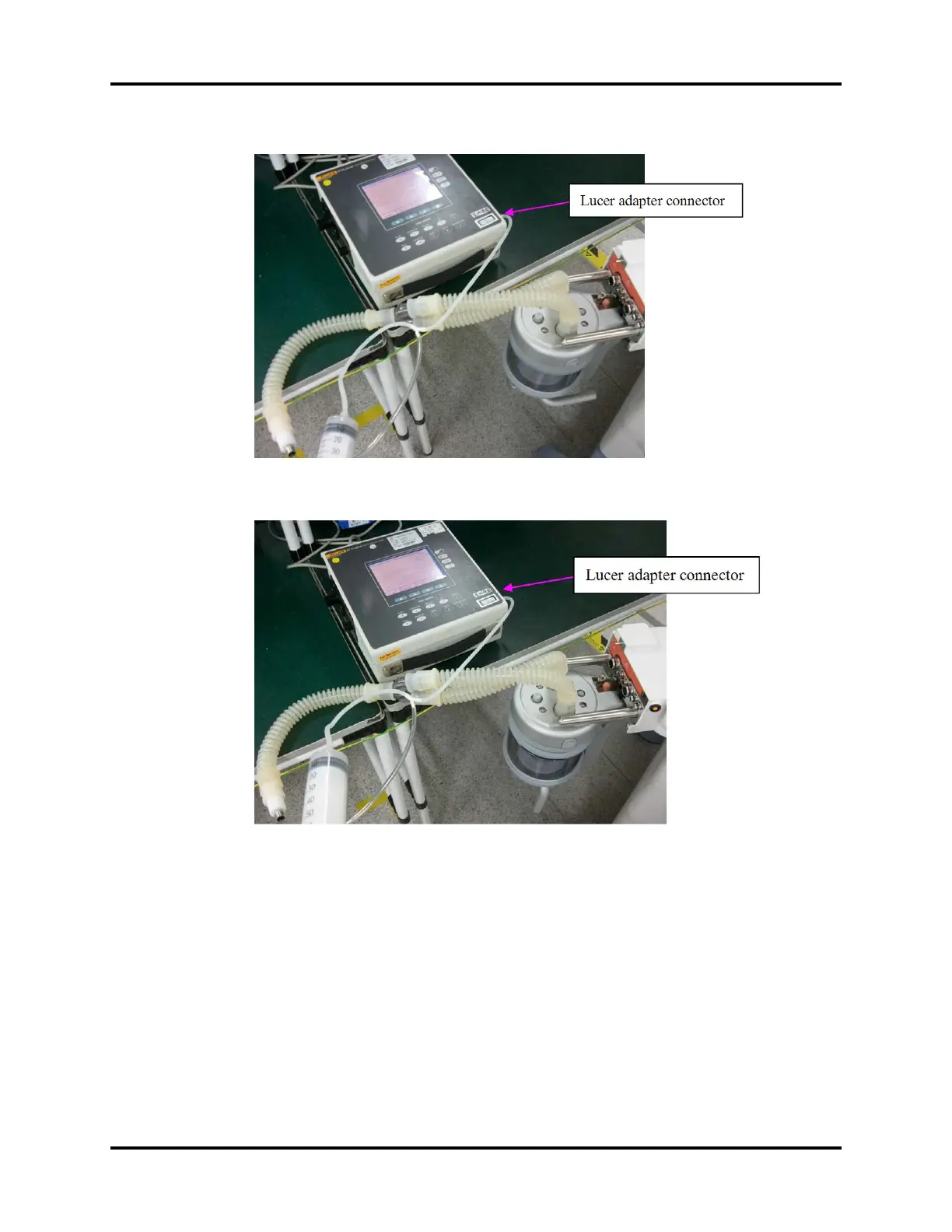

FIGURE 5-64 Bypass Off
FIGURE 5-65 Bypass On
6. Check the seals on the two connections of the lifting device. It they are damaged, replace the
seal and then re-mount the lifting device onto the breathing system.
6. Check the accessories and circuit inspiratory and expiratory parts

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
