Mindray A5 Service Manual

Pneumatic Circuit System Problems Repair and Troubleshooting
5 - 66 046-001141-00 A5/A3™ Service Manual

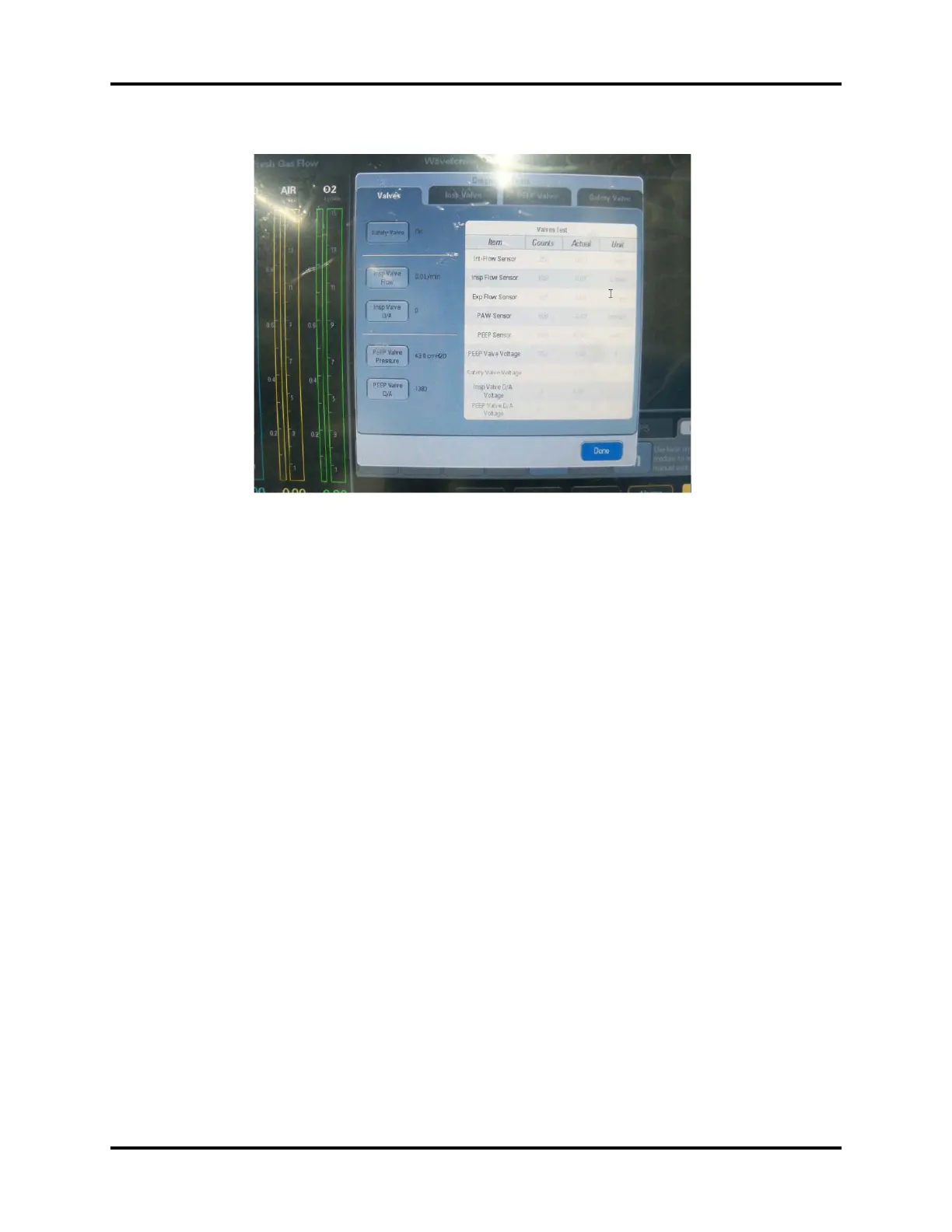

FIGURE 5-70
Set the A/D value of the inspiratory valve to cause the flow of inspiratory valve to reach a certain
value. In this case, the flows measured by the ventilator flow sensor, inspiratory flow sensor, and
expiratory flow sensor should be the same. Test multiple points by setting the A/D value of the
inspiratory valve. For each point, the flows measured by the three sensors should be the same. If not,
the measured value by the flow sensor is inaccurate. Troubleshoot the possible causes marked “*” in
the above table.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
