A5/A3™ Service Manual 046-001141-00 6 - 5
Repair and Disassembly Disassemble the Assemblies
6.2.1.5 Remove the Poppet Valve Assembly
1. Open the service door.
2. Unplug the tubes from the poppet valve assembly.
3. Unscrew the two screws on the valve to remove the poppet valve.

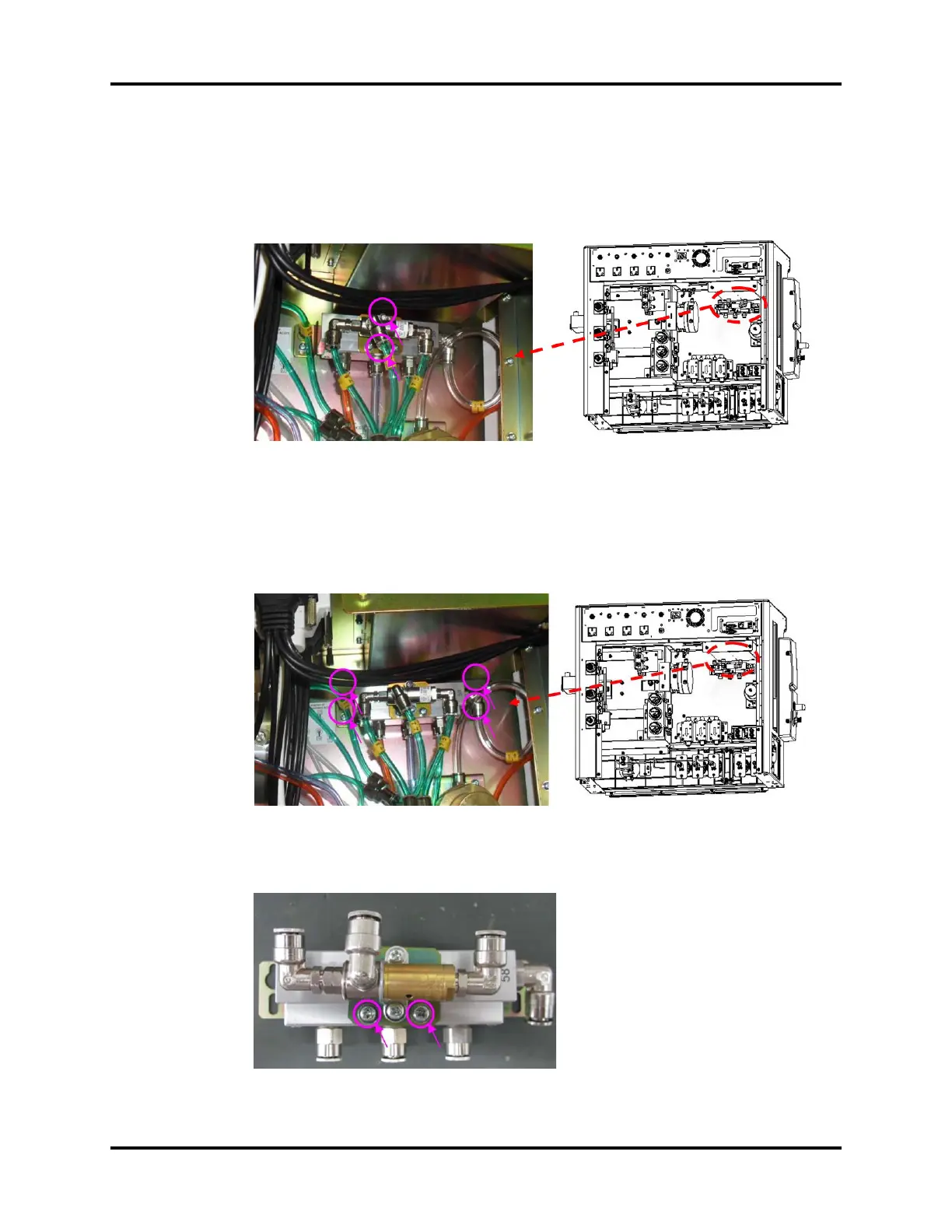

FIGURE 6-5
6.2.1.6 Remove the Gas Mixer Assembly
1. Open the service door.
2. Unplug the tubes from the gas mixer assembly and the Poppet Valve Assembly.
3. Unscrew the four screws on the gas mixer assembly to remove the assembly.
FIGURE 6-6
4. Unscrew the two screws on the support plate of the regulator to remove the gas mixer
assembly.
FIGURE 6-7
