Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 6 - 11
Repair and Disassembly Disassemble the Assemblies
6.2.2.4 Remove the Power Board
1. Disassemble the top panel assembly.
2. Unscrew the two screws fastening the high-pressure protection cover to remove the protection
cover.

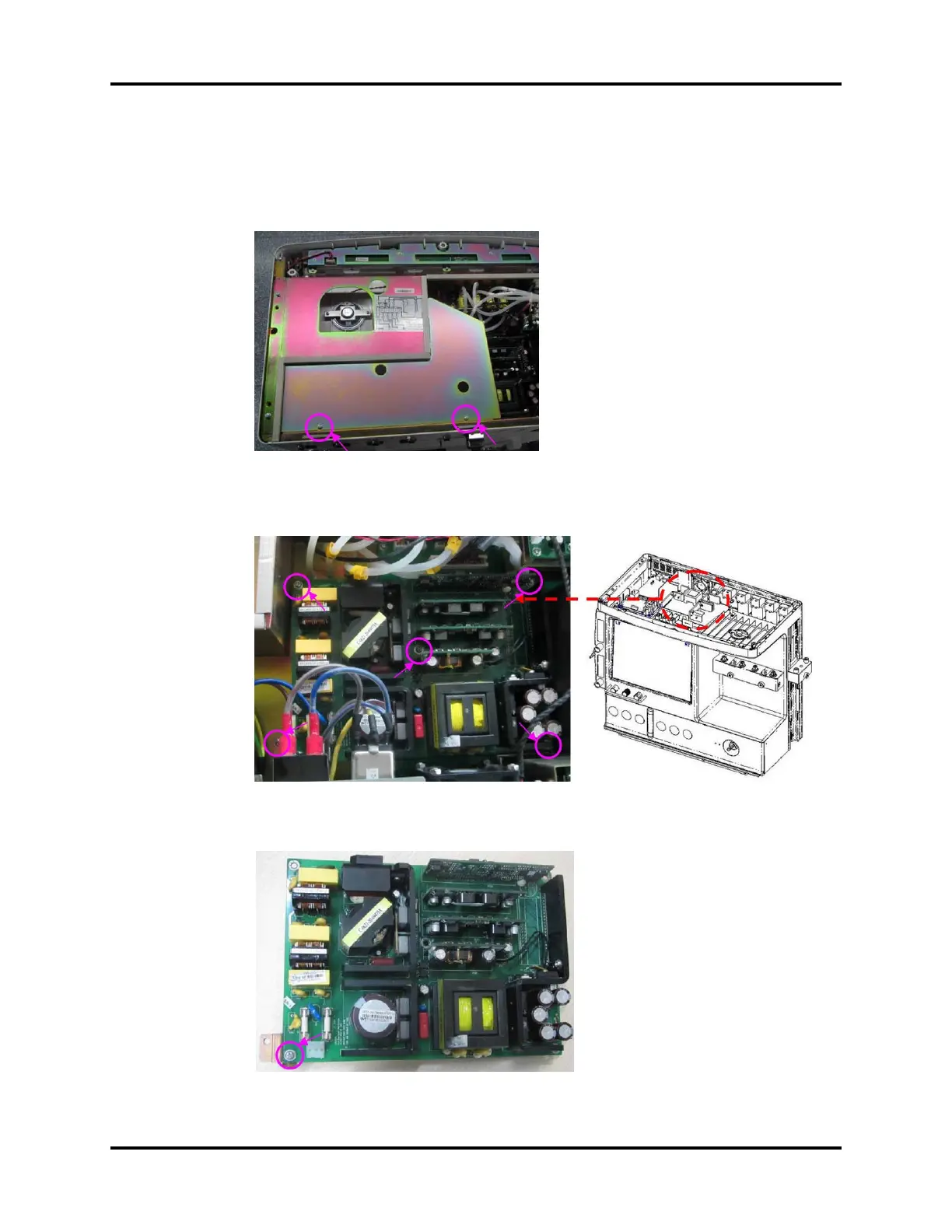

FIGURE 6-18
3. Unplug the filter cable plug. Unscrew the screw on the power board support sheet, three screws
and one nut fastening the power board to remove the power board.
FIGURE 6-19
4. Unscrew the screw on the power board support sheet to remove the support sheet.
FIGURE 6-20
