A5/A3™ Service Manual 046-001141-00 6 - 21
Repair and Disassembly Disassemble the Assemblies

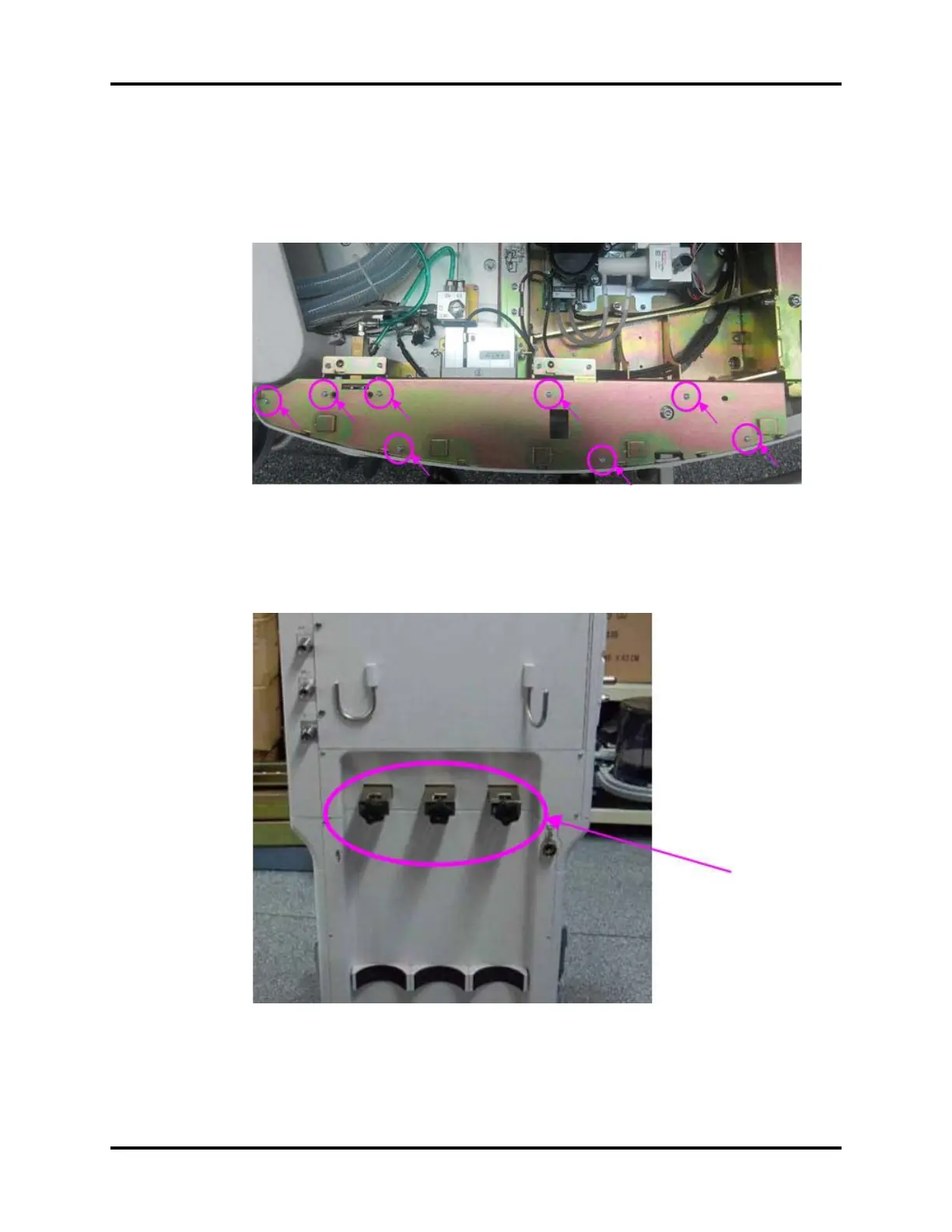

6.2.3.3 Remove the Metal Cover Plate
1. Remove the work surface cover plate.
2. Unscrew the eight screws on the metal cover plate to remove the cover plate.
FIGURE 6-37
6.2.3.4 Remove the Rear Panel Assembly
1. Rotate the cylinder's yoke to remove the cylinder.
FIGURE 6-38
2. Unplug the AGSS transfer tube connecting to the exhaust tube and refer to “Remove the AGSS
Assembly” on page 6-43..
