Disassemble the Assemblies Repair and Disassembly
6 - 24 046-001141-00 A5/A3™ Service Manual

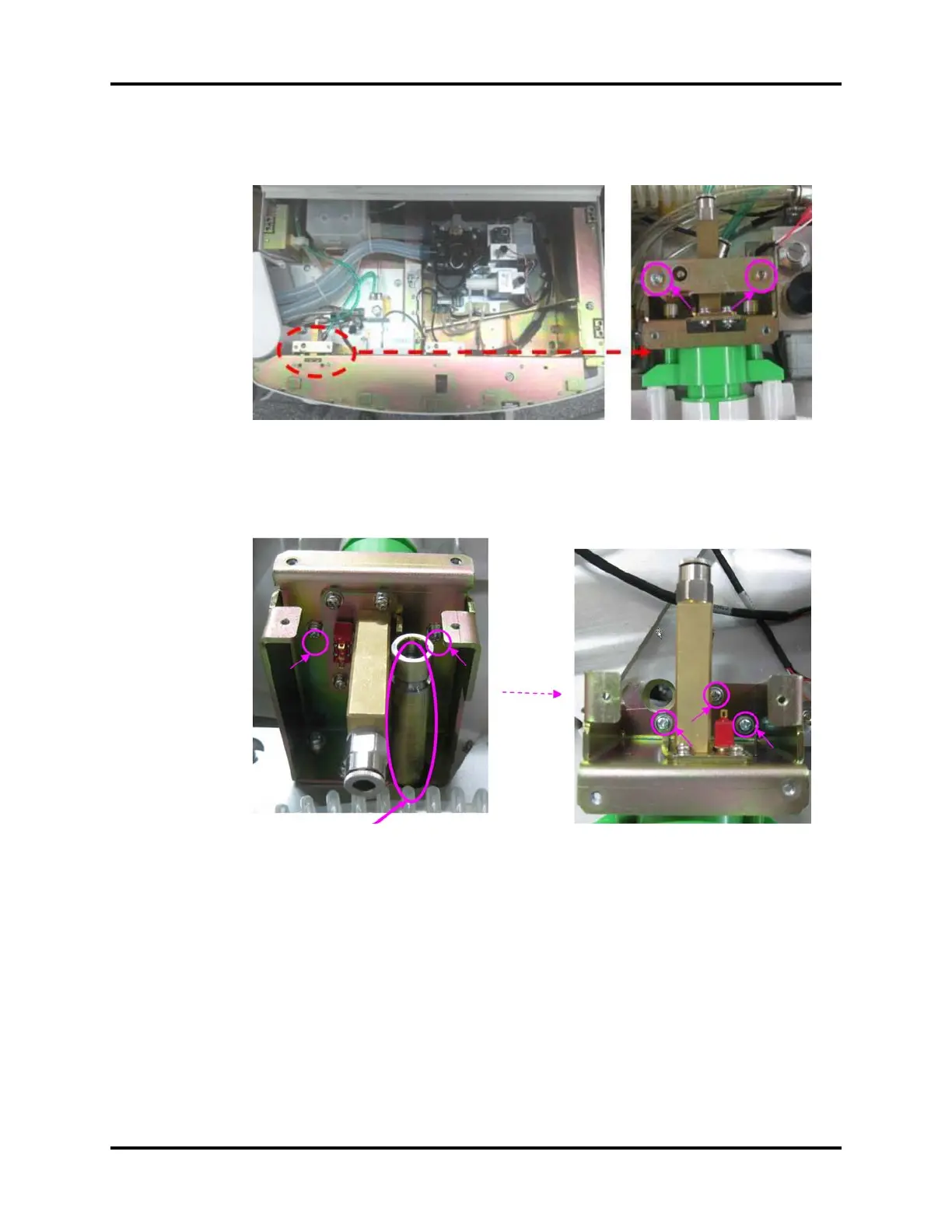

4. Unscrew the two screws on the bracket and remove it.
FIGURE 6-43
5. Remove the metal post on the right side of the O2 flush assembly.
6. Unscrew the five screws around the O2 flush assembly to remove it.
FIGURE 6-44
