Mindray DC-30 Service Manual

Structure and Assembly/Disassembly 7-39

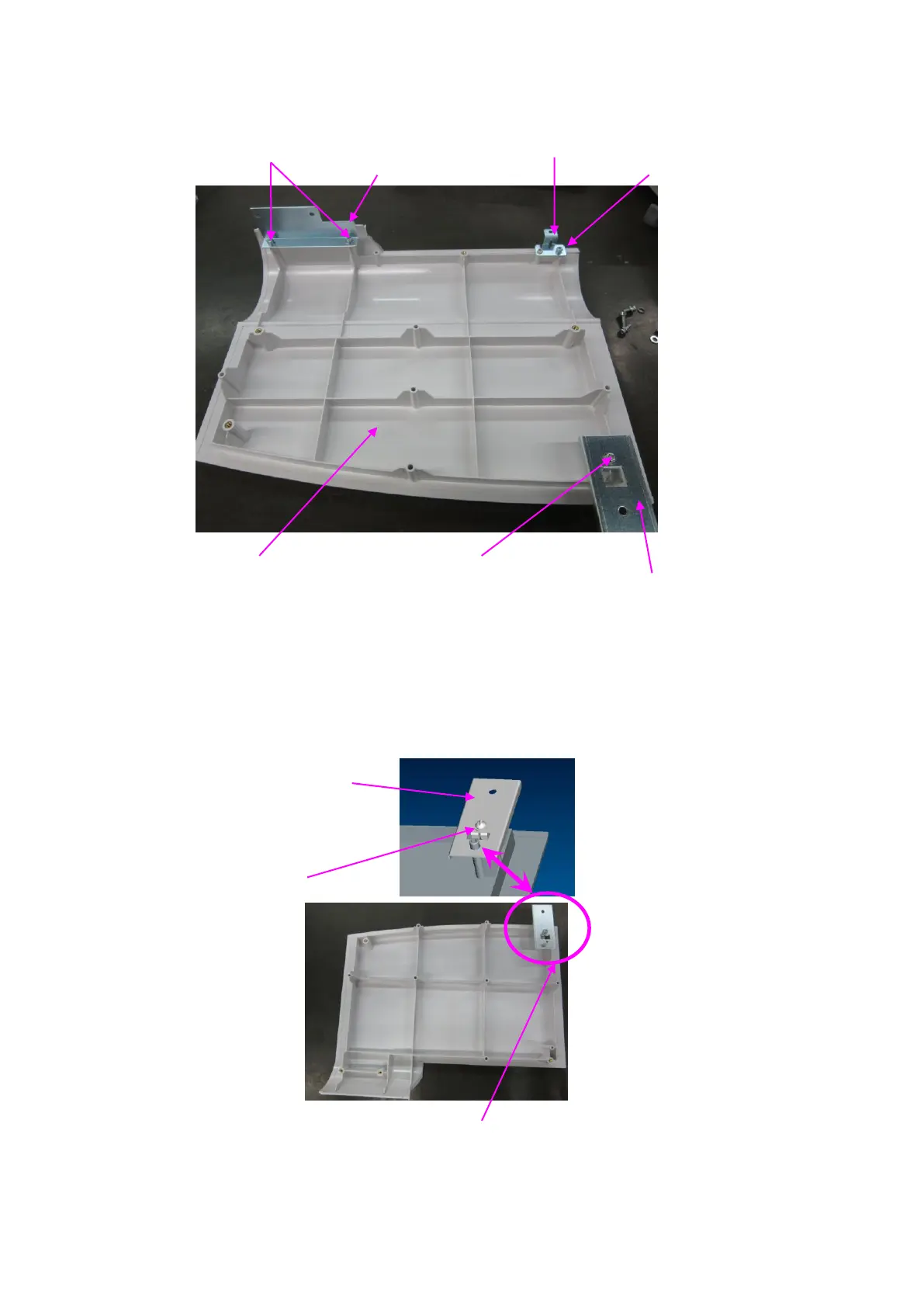

Fig 7-35 Disassemble the Left Side-panel Assembly
7.4.9 Right Side-panel Assembly
There is a M4X8 cross panhead screw fixing the mounting ear to the right side-panel,
remove this screw to take out the right side-panel assembly.
Fig 7-36 Disassemble the Right Side-panel Assembly
Front mounting ear
Left side-panel mounting bracket
Back mounting ear
Cross panhead screw (M4X8 x 1)
Left
side-panel
Cross panhead screws (M4X8 x 2)
Cross panhead
screw (M4X8 x 1)
Right side-panel
Right side-panel mounting ear
Cross panhead
M4X8

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
