7-40 Structure and Assembly/Disassembly
7.4.10 Control Panel Assembly
Tool: cross-headed screwdriver. Please refer to Chapter 7.3.1 Tools Required for tools’
specifications.
1. Remove the M4X12 screws (17 pcs) fixing the surrounding and center control panel
assembly at the panel base.

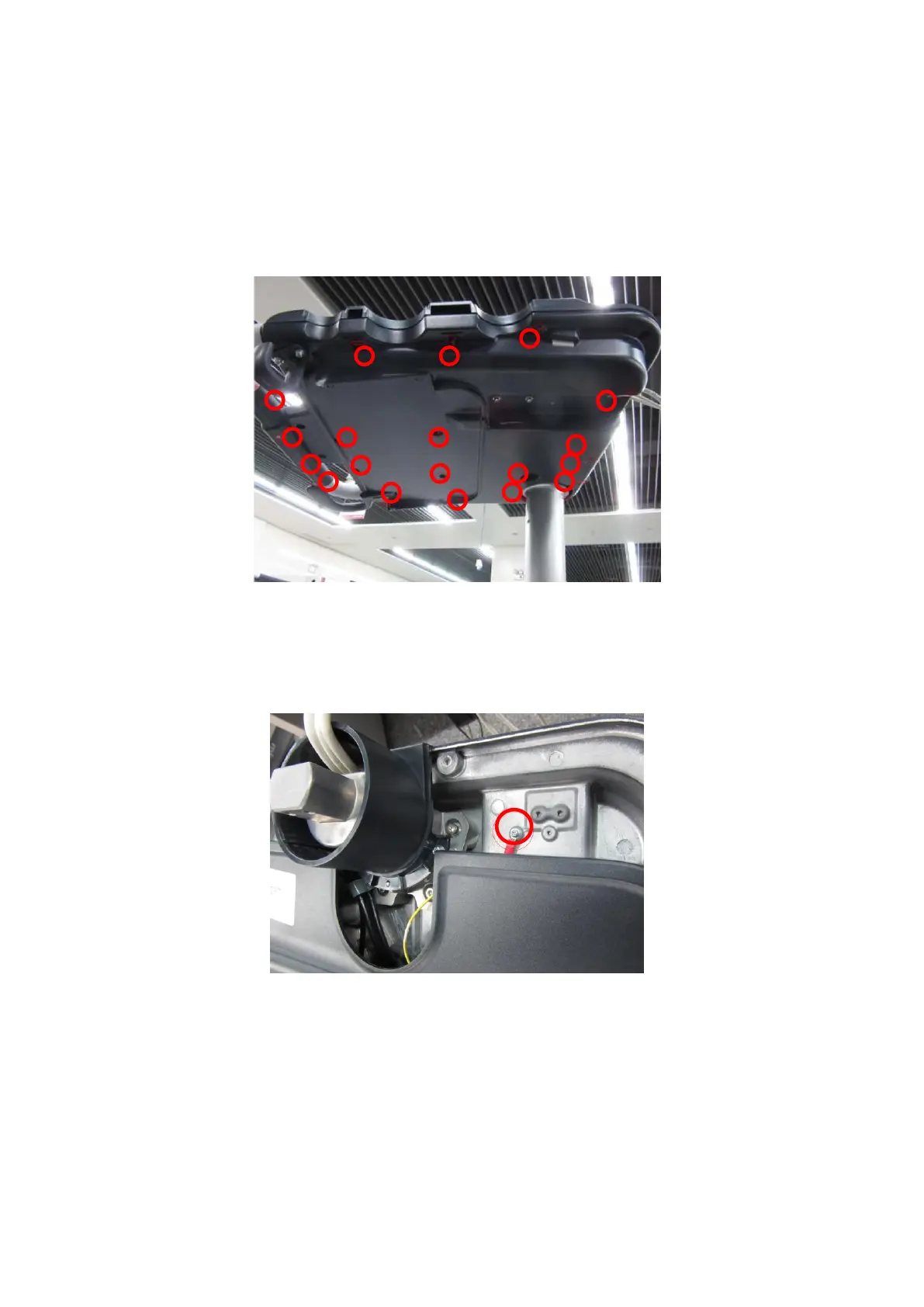

Fig 7-37 Disassemble the control panel assembly (1)
2. Hold the rear side of the control panel assembly (near the supporting arm) and push
towards the handle direction a little to remove the screw M3X8 (1 pc) for fixing
grounding line in the panel base.
Fig 7-38 Disassemble the control panel assembly (2)
3. Lift the handle part of the control panel assembly; pull out the cables connecting the
main unit (power cable, signal line and USB connecting cable).then take the control
panel assembly.
