Mindray DC-30 Service Manual

Options Installation 8-5
8.3 Printer Adapter

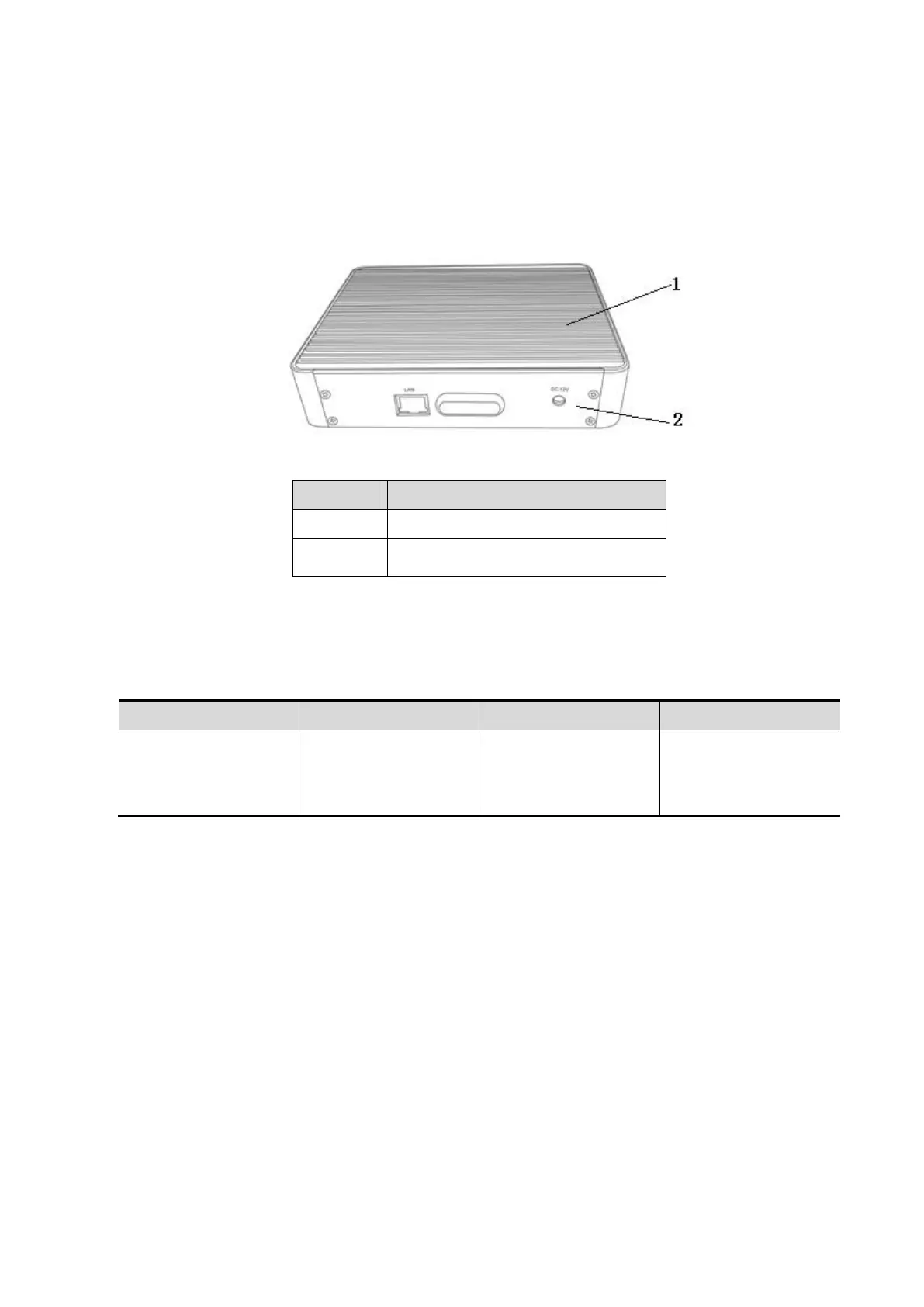

8.3.1 Structure of the Entire System
No.
Name
1.
Printer adapter cover
2.
Printer adapter rear cover
8.3.2 Tools Required
Name
Type
No.
Remarks
Cross-headed
screwdriver
Type-2 screwdriver
/
Assembly and
disassembly of the
M2.5 flat-headed
screws.
8.3.3 Engineers Required
Only technical professionals from Mindray or engineers authorized by Mindray after training can
perform the maintenance and the check.
8.3.4 Requirements
You should perform the following preparations before disassembling the ultrasound device.
1. Power off the printer adapter, disconnect all the AC power, and pull out the auxiliary power
cables.
2. Put the printer adapter in a stable place.
3. Prepare the tools required.

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
