Mindray DC-30 Service Manual

System Installation 3-7

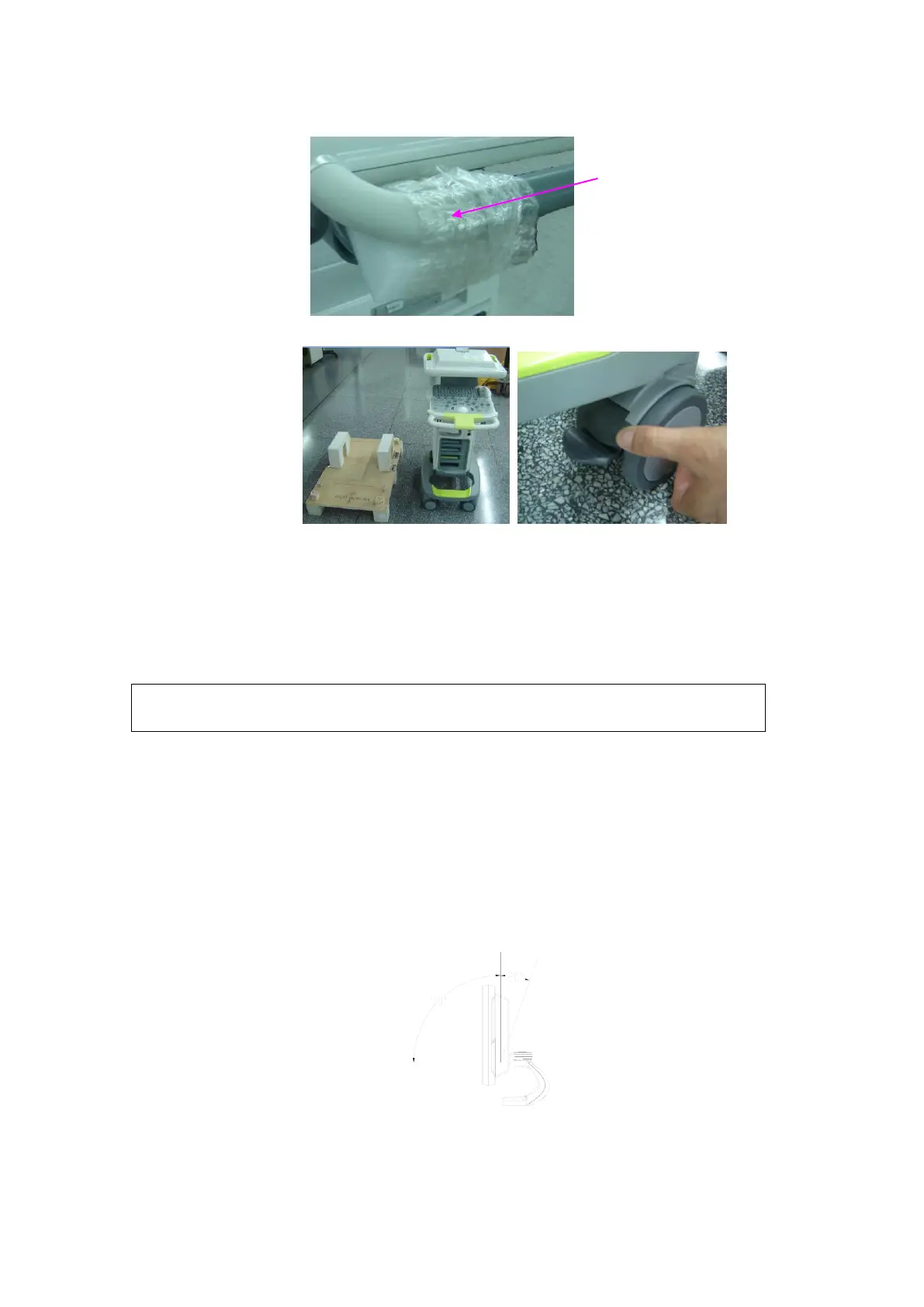

8. Take out the handle protecting foam.
9. Release the caster brake and carry the machine from the board.
You will need the help of two persons to carry the machine from the board with.
3.3 Installation of Main Unit
NOTE:
Lock the caster to avoid accidental movement which may result in
damage when do the following operations.
3.3.1 Display Adjusting
 Monitor Horizontal Position Adjusting
Gently hold the bottom edge of the monitor when adjusting its position. The monitor can
be rotated around its central pivot point for ±90°.
 Adjust the angle of inclination
When positioned vertically, the monitor can be tilted for 90° forward and 20° backward
respectively.

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
