Mindray DC-30 Service Manual

3-6 System Installation

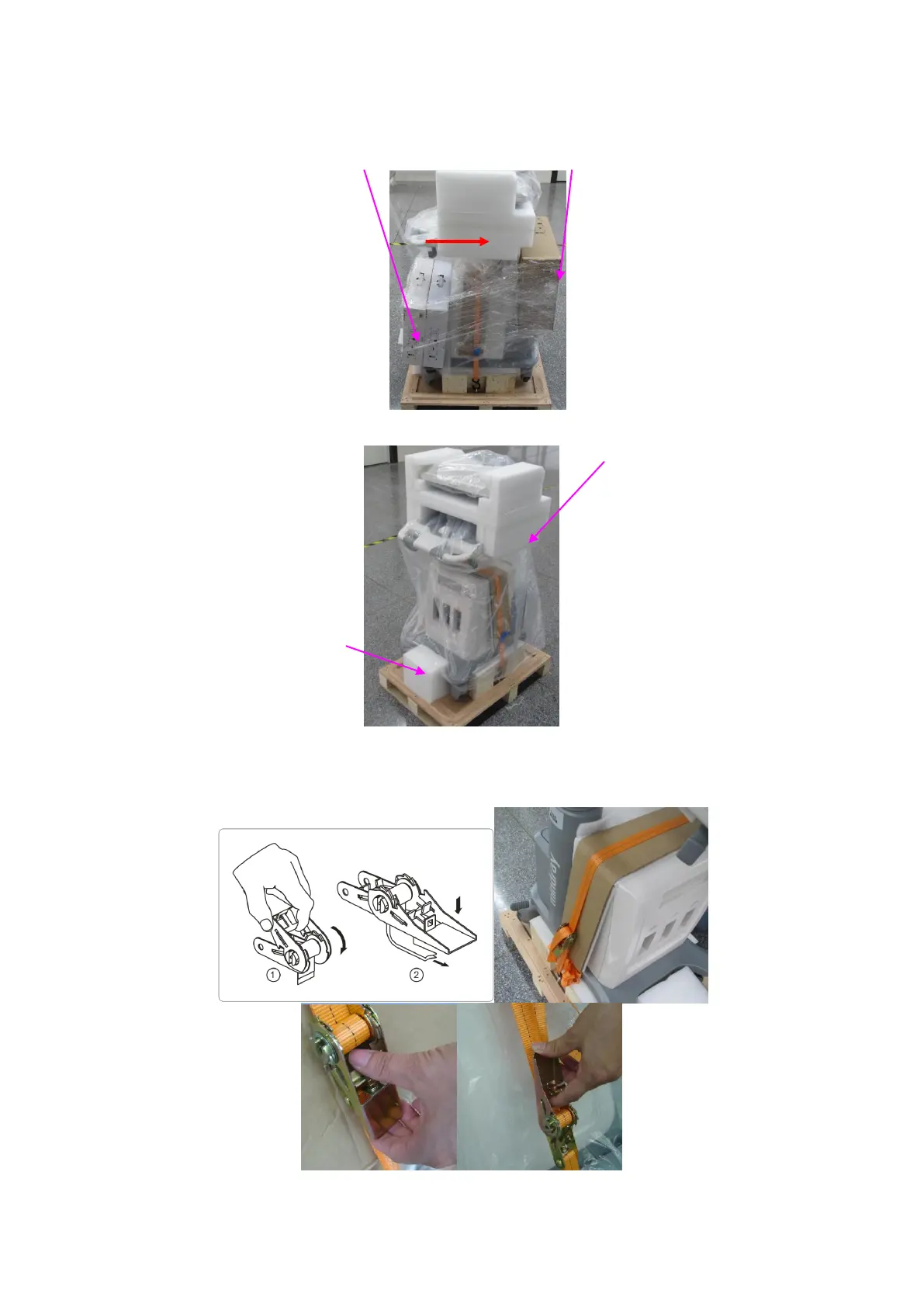

5. Take out the accessory box and probe box.
6. Remove protecting foam and plastic covers.
7. Remove the strainer; unlock the four casters. Press the part of strainer with thumb to
let the spring shrink to the bottom(as shown in figure ①), then turn upwards until
loose the strainer(as shown in figure ②).
Accessory box
Probe box

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
